GYTS Outdoor Stranded Loose Tube Light-armored Fiber Optical Cable, Loose Tube Light-armored Cable GYTS

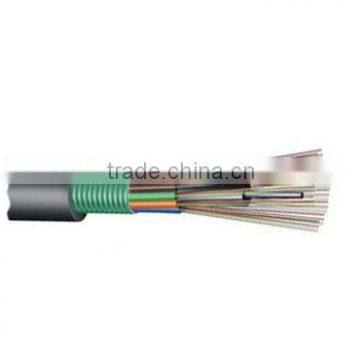

GYTS Outdoor Stranded Loose Tube Light-armored Fiber Optical Cable, Loose Tube Light-armored Cable GYTS photo-1
GYTS Outdoor Stranded Loose Tube Light-armored Fiber Optical Cable, Loose Tube Light-armored Cable GYTS photo-2

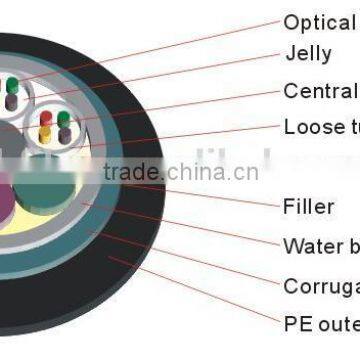

GYTS Outdoor Stranded Loose Tube Light-armored Fiber Optical Cable, Loose Tube Light-armored Cable GYTS photo-3

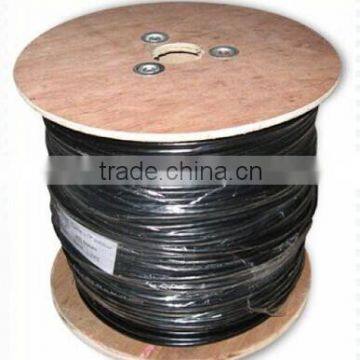

GYTS Outdoor Stranded Loose Tube Light-armored Fiber Optical Cable, Loose Tube Light-armored Cable GYTS photo-4
GYTS Outdoor Stranded Loose Tube Light-armored Fiber Optical Cable, Loose Tube Light-armored Cable GYTS photo-5
GYTS Outdoor Stranded Loose Tube Light-armored Fiber Optical Cable, Loose Tube Light-armored Cable GYTS photo-6
US$ 0.2 - 0.9 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
GYTS
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name OEM
Model Number GYTS
Type Coaxial
Number of Conductors 8

GYTS outdoor Stranded Loose Tube Light-armored Optical Cable, Loose Tube Light-armored cable  GYTS

Description

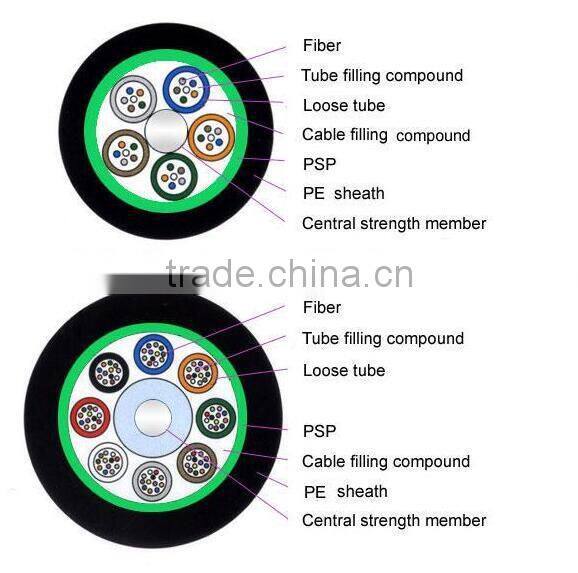

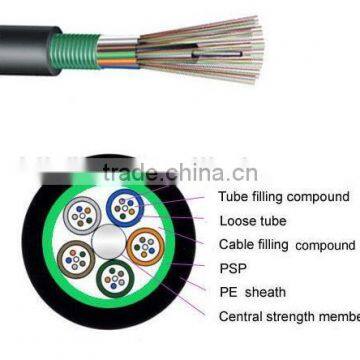

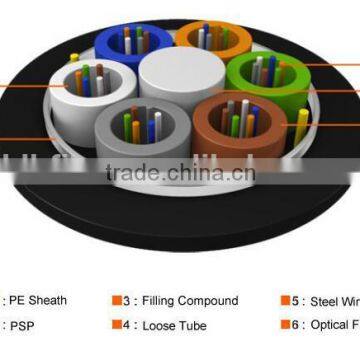

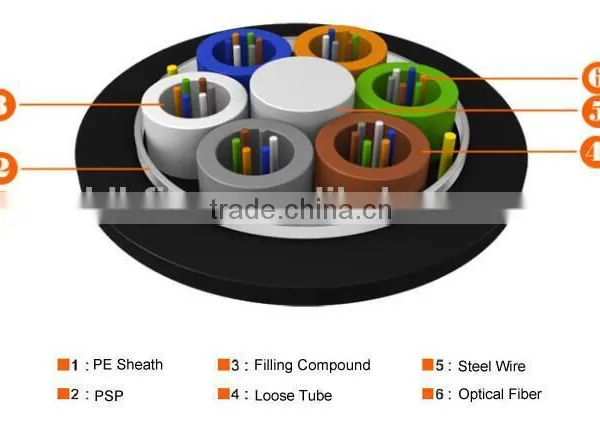

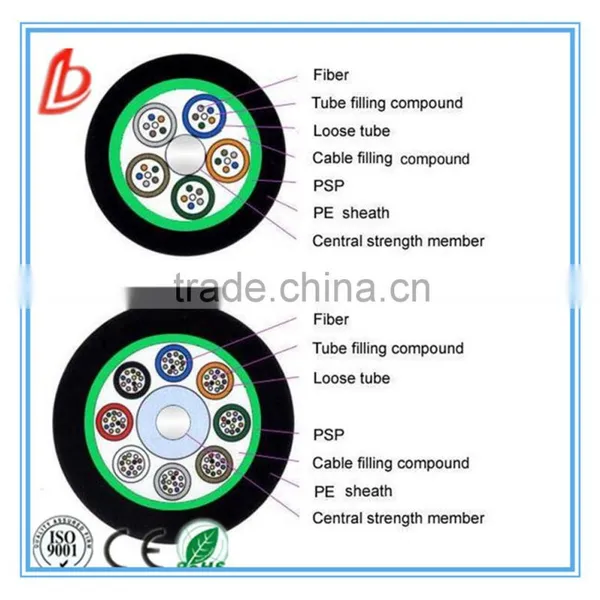

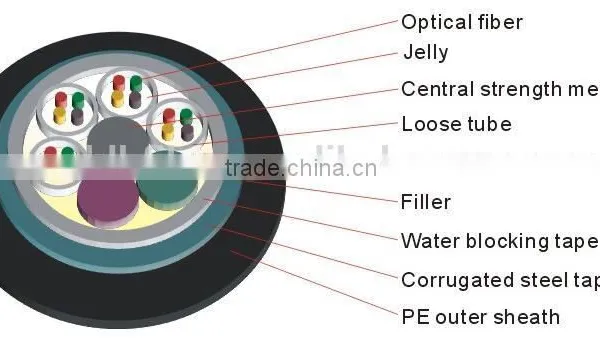

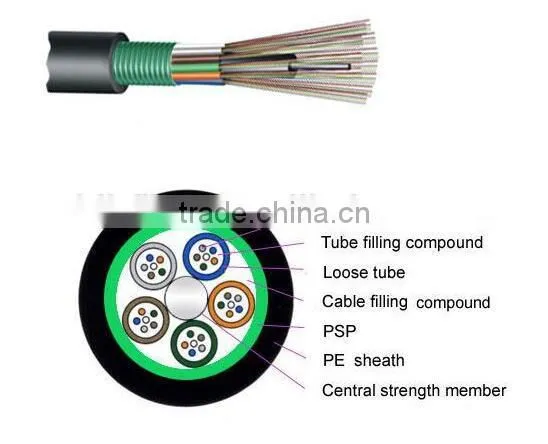

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.



· Good mechanical and temperature performance

        · High strength looes tube that is hydrolysis resistant

        · Special tube filling compound ensure a critical protection of fiber

        · Specially designed compact structure is good at preventing loose tubes from shrinking

        · Crush resistance and flexibility

        · PE sheath protects cable from ultraviolet radiation

        · The following measures are taken to ensure the cable watertight:

                - Steel wire used as the central strength member

                - Loose tube filling compound

                - 100% cable core filling

                - PSP enhancing moisture-proof

Standards

         GYTS cable complies with Standard YD/T 901-2001as well as IEC 60794-1.

Specification



GYTS outdoor Stranded Loose Tube Light-armored fiber Optical Cable, Loose Tube Light-armored cable GYTS

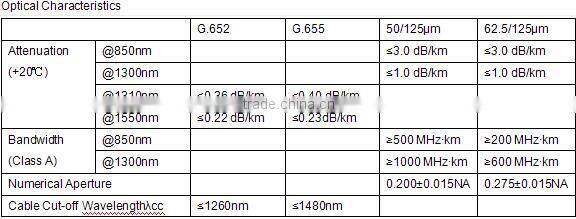

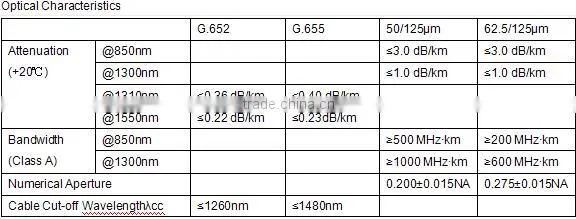

Technical Parameters

Cable Type

Fiber Count

Tubes

Fillers

Cable Diameter

mm

Cable Weight kg/km

Tensile Strength

Long/Short Term N

Crush Resistance

Long/Short Term

N/100mm

Bending Radius

Static
/Dynamic

mm

GYTS-2~6

2~6

1

4

10.2

116

600/1500

300/1000

10D/20D

GYTS-8~12

8~12

2

3

10.2

116

600/1500

300/1000

10D/20D

GYTS-14~18

14~18

3

2

10.2

116

600/1500

300/1000

10D/20D

GYTS-20~24

20~24

4

1

10.2

116

600/1500

300/1000

10D/20D

GYTS-26~30

26~30

5

0

10.2

116

600/1500

300/1000

10D/20D

GYTS-32~36

32~36

6

0

10.6

129

1000/3000

300/1000

10D/20D

GYTS-38~48

38~48

4

1

11.2

141

1000/3000

300/1000

10D/20D

GYTS-50~60

50~60

5

0

11.2

141

1000/3000

300/1000

10D/20D

GYTS-62~72

62~72

6

0

12.0

159

1000/3000

300/1000

10D/20D

GYTS-74~84

74~84

7

1

13.6

209

1000/3000

300/1000

10D/20D

GYTS-86~96

86~96

8

0

13.6

209

1000/3000

300/1000

10D/20D

GYTS-98~108

98~108

9

1

15.4

232

1000/3000

300/1000

10D/20D

GYTS-110~120

110~120

10

0

15.4

232

1000/3000

300/1000

10D/20D

GYTS-122~132

122~132

11

1

17.2

280

1000/3000

300/1000

10D/20D

GYTS-134~144

134~144

12

0

17.2

280

1000/3000

300/1000

10D/20D

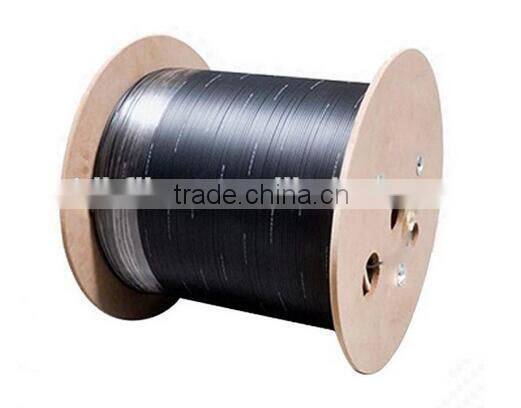

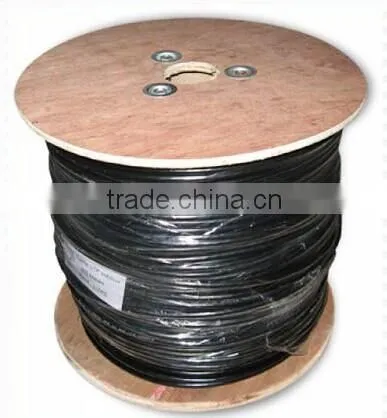

Product picture

 GYTS outdoor Stranded Loose Tube Light-armored fiber Optical Cable, Loose Tube Light-armored cable GYTS

GYTS outdoor Stranded Loose Tube Light-armored fiber Optical Cable, Loose Tube Light-armored cable GYTSGYTS outdoor Stranded Loose Tube Light-armored fiber Optical Cable, Loose Tube Light-armored cable GYTS

GYTS outdoor Stranded Loose Tube Light-armored fiber Optical Cable, Loose Tube Light-armored cable GYTS



Company information

GYTS outdoor Stranded Loose Tube Light-armored fiber Optical Cable, Loose Tube Light-armored cable GYTSGYTS outdoor Stranded Loose Tube Light-armored fiber Optical Cable, Loose Tube Light-armored cable GYTS

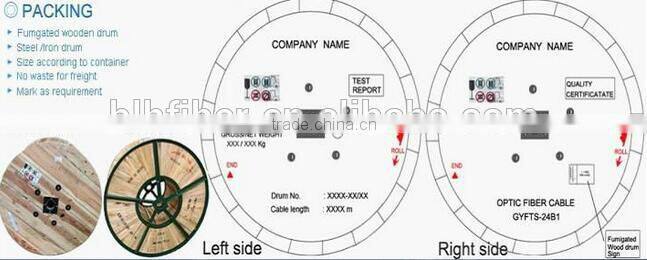

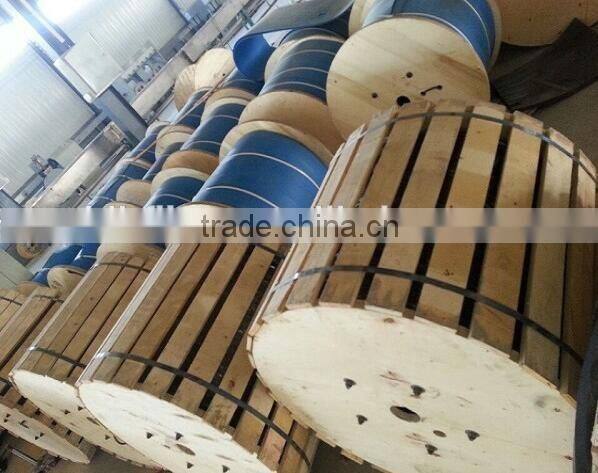

Payment & Delivery
