LSZH/PVC FRP indoor ftth fiber optic cable G657A optical fiber cable

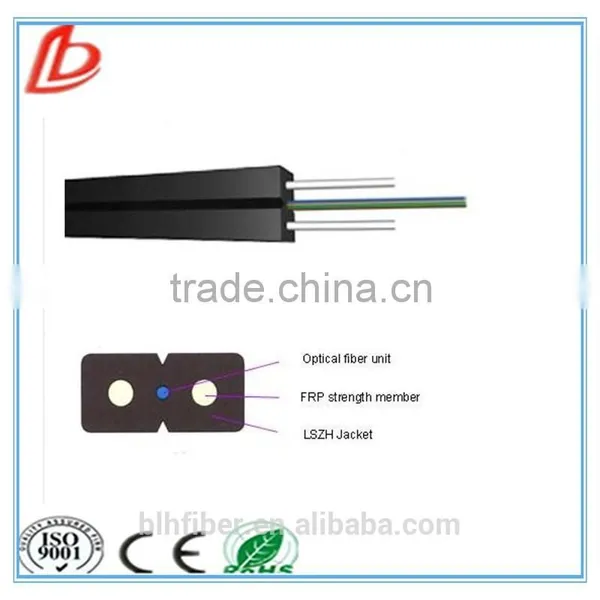

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath.
Features:
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
transmission property;
· Two parallel FRP strength members ensure good performance of crush resistance to protect the
fiber;
· Simple structure, light weight and high practicability;
· Novel flute design, easily strip and splice, simplify the installation and maintenance;
· Low smoke, zero halogen and flame retardant sheath.
Optical Characteristics | ||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||
Technical Parameters
Cable type |
Fiber count |
Cable diameter |
Cable weight |
Tensile Strength |
Crush resistance |
Bending Radius |
mm |
kg/km |
Long/short Term N |
Long/Short Term N/100mm |
Static/Dynamic mm |
||
GJXH/GJXFH |
1 |
3.0mm*2.0mm |
8 |
30/60 |
300/1000 |
10D/20D |
GJXH/GJXFH |
2 |
3.0mm*2.0mm |
10 |
30/60 |
300/1000 |
10D/20D |
GJXH/GJXFH |
4 |
4.0mm*2.0mm |
12 |
30/60 |
300/1000 |
10D/20D |
Storage/Operating Temperature : -40℃ to + 70℃
