Help CenterMicsig Digital Handheld Oscilloscope MS510S(2Ch,100Mhz)automotive Oscilloscope,Isolated Channel
Related Products
-
MS520S 200MHz Isolated Channel Digital Handheld OscilloscopeUS$ 1,949 - 1,979MOQ: 1 Piece -
MS207T Micsig Low Cost Multimeter Digital Handheld Oscilloscope 70Mhz for StudentUS$ 459 - 899MOQ: 1 Piece
-
200MHz Dual Channels Maths Function Digital Storage Hand Oscilloscope for CarUS$ 699 - 729MOQ: 1 Piece
-
Micsig MS215T 150MHz Handheld Digital Oscilloscope for LabUS$ 529 - 549MOQ: 1 Piece
-
High Resolution Portable 70MHz Handheld Digital Oscilloscope for IndustryUS$ 689 - 699MOQ: 1 Piece
Micisg Handheld Oscilloscope Digital 200MHz Waveform Recorder Multi trigger Handheld Oscilloscope with Battery
On market, it’s afraid that only Micsig handheld multi-function oscilloscope can be regarded as a true oscilloscope and others can be called scope.
Moreover, it’s function no less than desktop oscilloscope, as it designs lightweight and uses double injection plastic mould making oscilloscope high IP level;
Real leather belt design, exclusively detachable battery design & supporting indoor & outdoor display mode make it become your good assistant in field working.

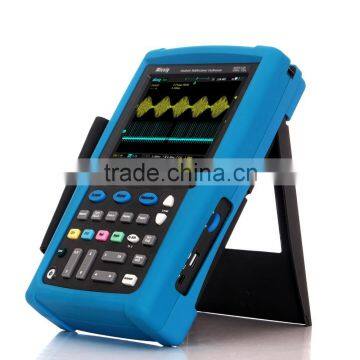

Micsig digital storage handheld oscilloscope MS510S product showcase:
Specification:
| MODEL | MS510s |
| Bandwidth | 100MHz |
| Operation | Multi-touch,button,scroll wheel |
| Real time sampling rate | 1GS/s for two channel,500MS/s for one channels |
| Memory depth | 240Kpts |
| Max capture rate | 190,000 wfms/s |
| Scopemeter Channels | 2 channels(not isolated) for scope,1 meter channel |
| Display screen | 5.7" TFT multi-touch LCD,640x480 pixels,12x8 grids |
| Meter measurements | 10 types |
| Timebase range | 4ns/div-10s/div |
| Serial bus decode | Support |
| Battery capacity | 7.4V 6000mAh |
| Isolated channel | Available for this model |
| Rise time | <3.5ns |
| Vertical scale | 2mV/div-20V/div |
| Trigger types | Edge,Pulse,Logic |
| Measurements | 31 automatic measurements |
| Timebase mode | YT,XY,Roll |
| Persistence | Auto,100ms-10s,or ∞ |
| Coupling mode | AC,DC,Ground |
| I/O port | USB host,USB device |
Micsig digital storage handheld oscilloscope MS510S product features:
Packaging & Shipping
Packed in carton:
Carton dimension: 410x 200x 380 mm
Carton gross weight:6.5KG(with battery)

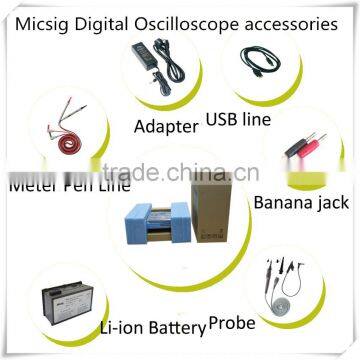

Standard accessories:
Passive probe:X2 or X4 according to different models
Micro USB cable:X1
Power adapter:X1
USB calibration board:X1
Documents:X1
Optional accessories:(need to buy separately)
Build-in battery(10,000/13,000mAh)
Nylon handbag
Hardcase
Shipping:
All the goods will be sent by DHL,FEDEX,UPS,TNT according to customers' requirements,or by sea shipping.
