MS207T Micsig Low Cost Multimeter Digital Handheld Oscilloscope 70Mhz for Student

Name: MS207T Micsig Low Cost Multimeter Digital Handheld Oscilloscope 70Mhz for Student
Brand: Micsig
SKU: 127201137

US$ 459 - 899 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Micsig

Model Number:

MS207T

Shenzhen Micsig Instruments Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Micsig

Model Number MS207T

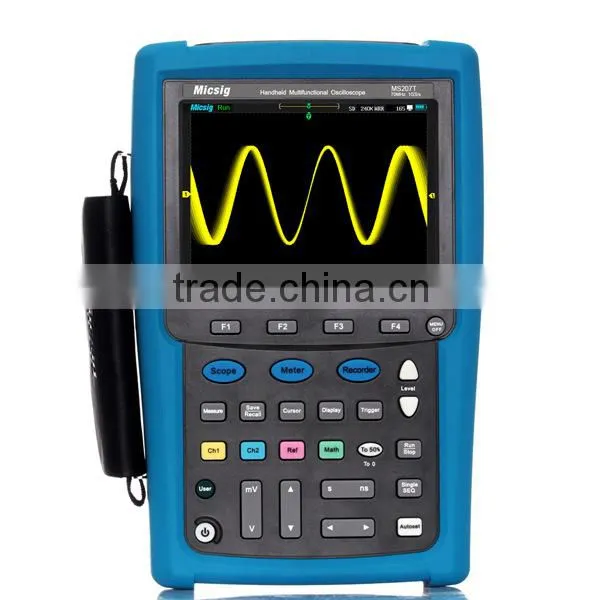

MS207T Micsig Low Cost Multimeter Digital Hand held Oscilloscope 70Mhz for student

Product Description

Low Cost Multimeter Digital Hand held Oscilloscope introduction

Micsig handheld oscilloscope is a high-tech innovation invention that has a great advantage in performance.

Compared with other brands oscilloscope, Micsig oscilloscope more focus on detail quality of products & UE.

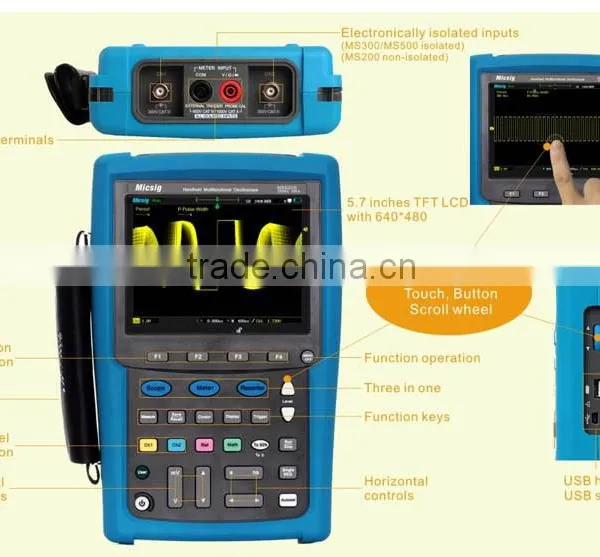

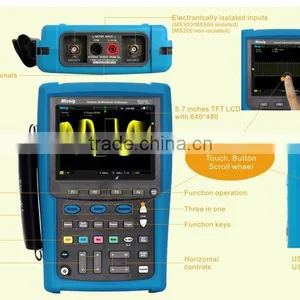

1. 5.7 inches TFT LCD industry touch screen & 640*480 high resolution make it shows clearer and more delicate in waveform;

2. high quality double injection mould has functions of high IP level and fit comfortably in one hand;

3. supporting indoor & outdoor display mode make it more convenient in field operation;

4. easy disassembling 6000mAh Li-on battery can make user persist working up to 7 hours even though in outages situation;

5. two analog channels & multi-meter channel support 3 operation modes: touch, button & scroll wheel, which simplify operation steps;

6. multi-meter can measure direct voltage, resistors, diodes, on-off and like that 10 tapes regular physical quantity;

7. recorder can keeps more than 100 days recording;

Low Cost Multimeter Digital Hand held Oscilloscope specification

Bandwidth	70MHz
Operation	Multi-touch,button,scroll wheel
Real time sampling rate	1GS/s for two channel,500MS/s for one channels
Memory depth	240Kpts
Max capture rate	50,000 wfms/s
Channels	2 channels(not isolated) for scope,1 meter channel
Display screen	5.7" TFT multi-touch LCD,640x480 pixels,12x8 grids
Meter measurements	10 types
Timebase range	4ns/div-10s/div
Serial bus decode	Not available for this model
Battery capacity	7.4V 6000mAh
Isolated channel	Not available for this model
Rise time	<5ns
Vertical scale	2mV/div-20V/div
Trigger types	Edge,Pulse,Logic

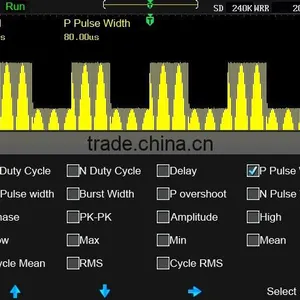

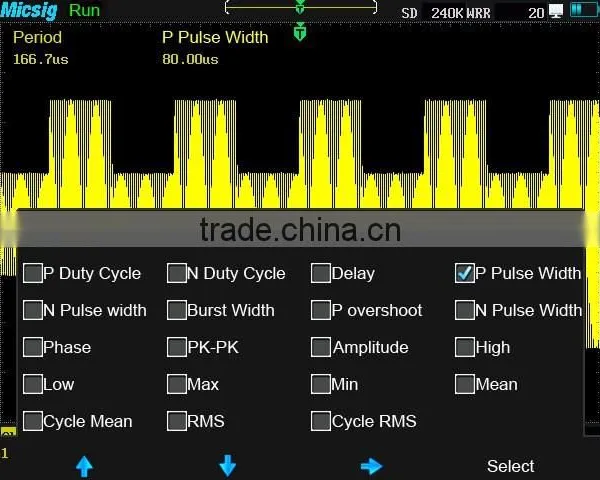

Measurements	31 automatic measurements
Math function	(+,-,*,/,FFT)
FFT	Rectangular,Hanmming,Hanning,Blackman-harris
Timebase mode	YT,XY,Roll
Persistence	Auto,100ms-10s,or ∞
Coupling mode	AC,DC,Ground
I/O port	USB host,USB device
