Help CenterMicsig Digital Handheld Oscilloscopes MS520 200MHz Isolated Channel USB Storage Multimeter
Related Products
-
Micsig Digital Handheld Oscilloscope MS510S(2Ch,100Mhz)automotive Oscilloscope,Isolated ChannelUS$ 1,899 - 3,800MOQ: 1 Piece -
MS520S 200MHz Isolated Channel Digital Handheld OscilloscopeUS$ 1,949 - 1,979MOQ: 1 Piece
-
MS207T Micsig Low Cost Multimeter Digital Handheld Oscilloscope 70Mhz for StudentUS$ 459 - 899MOQ: 1 Piece
-
200MHz Dual Channels Maths Function Digital Storage Hand Oscilloscope for CarUS$ 699 - 729MOQ: 1 Piece
-
Micsig MS215T 150MHz Handheld Digital Oscilloscope for LabUS$ 529 - 549MOQ: 1 Piece
Humanized designs make MS520S more efficient:
- Optional electronically isolated-inputs channel: 1000V CATII 600V CATII;
- Supporting serial bus trigger & decode: I2C, SPIN, CAN, LIN, UART, ARINC429, MIL-STD-1553B;
- Integratig scope, meter & recorder in one unit and unique scroll wheel & touch designs making handheld operation more convenient;
Overview for MS520S:
Specificion of MS520S:
Model |
MS520S |
Serial bus decode |
UART, LIN, SPI, I2C, ARINC429, MIL-STD-1553B |
Isolated channel |
Support |
Bandwidth |
200MHz |
Operation |
Multi-touch,button,scroll wheel |
Real time sampling rate |
1GS/s for single channel,500MS/s for two channels |
Memory depth |
240Kpts |
Max capture rate |
190,000 wfms/s |
Channels |
2 channels for scope,1 meter channel |
Display screen |
5.7" TFT multi-touch LCD,640x480 pixels,12x8 grids |

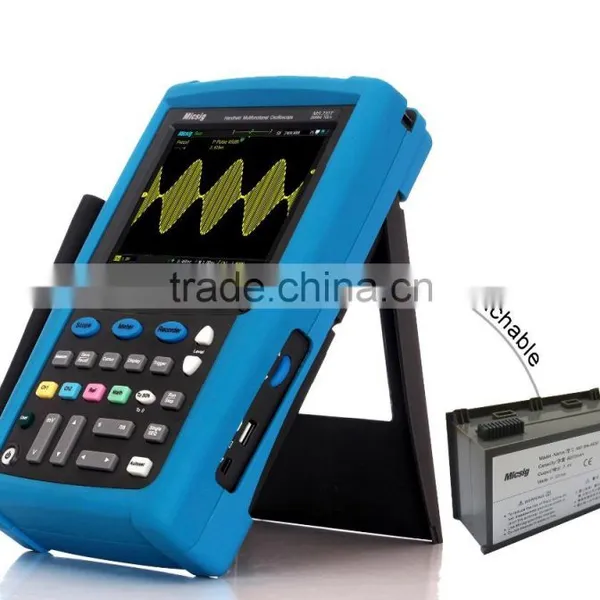

Battery capacity |
7.4V 6000mAh |

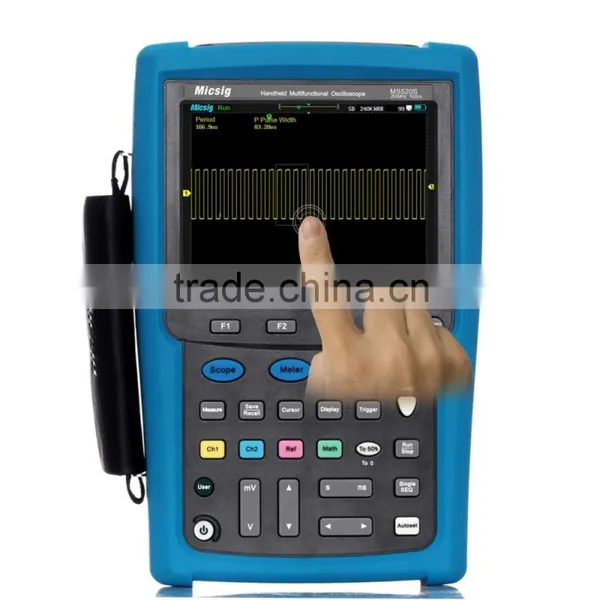

Micsig MS520S showcase:
Micsig handheld oscilloscope MS520S for car diagnostic features:
|
|
|
|
240kpts deep memory depth for oscilloscope,could see more detail of the waveforms |
The ScopeSuite of Micsig's software functions include updating,real time control, measurement, storage, dynamic display,record and data analysis
|
|
|
|
|
640x480 pixels high resolution of waveforms |
Indoor/outdoor display mode | |
|
|
|
31 auto measurements of waveforms |
Horizontal cursor, vertical cursor, cross cursor | |
|
|
|
|
3 types of record modes: multimeter record,oscilloscope measurement record and oscilloscope waveform record. |
Up to 13 physical measurements such as AC/DC voltage, current,resistance etc. |
Shipping:
All the goods will be sent by DHL, FEDEX, UPS, TNT according to customers' requirements, or by sea shipping.
