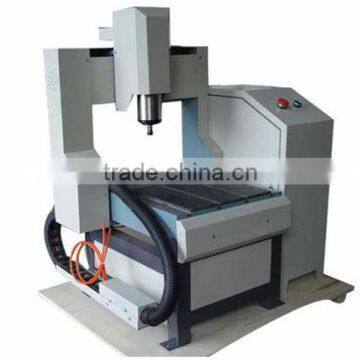

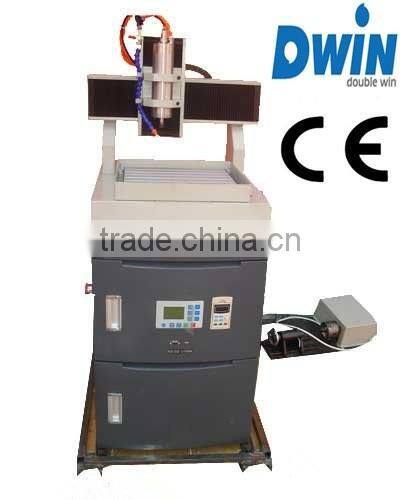

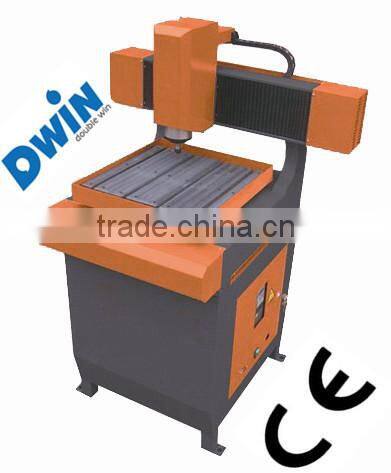

mini cnc router/mini cnc 3030 router/small desktop cnc router
mini cnc router 3030 Features:
The machine adopts international advanced accurate guide rail,slide pre-tight installment (guaranteed no space is between the slides) and German original ball screw to realize steady movement ,high precision and small vibration.
March 3 control system that adopted by the machine has the advantages of break point and break power continue engraving,assisned G code engraving ,etc.(The DSP handle operation system which enables the machine work without the computer can be choosen .)
| Machine body: | mini cnc router 3030 Whole cast iron |
| Work dimensions: | 300 x 300 x 60mm |
| Body dimensions: | 600 x 600 x 600mm |
| Z-axis working area: | 60mm |
| Max. Feeding height: | 60mm |
| Cut thickness of material: | <20mm |
| Max.Speed: | 4, 200mm/min |
| Working speed: | 0 - 3, 000mm/min |
| Mechanical precision: | 0.01mm |
| Software: | Type 3 software, Artcut software, Artcam software |
| Max. Power consumption: | 900W |
| Power supply : | AC 220/50Hz |
| Driver type: | Stepper motor |
| Memory: | 1MB |
| Spindle: | 1.2KW variable speed, water cooled motor |
| Spindle speed: | 0 - 24, 000rpm |
| Blade diameter: | 1 - 6m |
| Control system: | Artcut or Wei hong (NCSTUDIO) or DSP (USB interface) |
| Command: | G code, u00, mmg, plt |
| Interface: | RS232 |
1. How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial
Invoice, B/L, and other certificates as required by clients.
2.How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
3.Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4.How is the packing?
Water-proof plastic film package with foam protection in each cornerSolid Seaworthy Wood Box Package with Steel BeltSave space as much as possible for container loading
contact details:
Candice
Jinan Dwin Technology Co., LTD
Add: 57 Bei Yuan Street, Li Cheng District, Jinan city, China
Tel: +86-0531-88601773 Mobile: +8615106948012
Skype:dwincnc1 Website:
