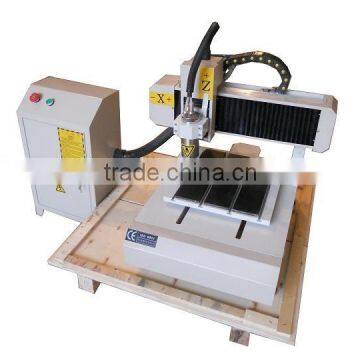

wood metal router mini cnc machine
Usage
This machine can be used for stone, Cu and AL processing, mold manufacturing, wood processing, mould, craft manufacturing, indoor decoration cutting, sign and mark manufacturing, acrylic board processing, as well as stamp cutting and PCB cutting
Parameter of wood metal router mini cnc machine
| 1 | Machine body | Whole cast iron |
| 2 | Work dimensions | 300 x 300 x 45mm |
| 3 | Body dimensions | 600 x 600 x 600mm |
4 |
Z-axis working area | 45mm |
| 5 | Max. Feeding height | 60mm or bigger |
| 6 | Cut thickness of material | <20mm |
| 7 | Max.Speed | 4, 200mm/min |
| 8 | Working speed | 0 - 3, 000mm/min |
| 9 | Mechanical precision | 0.01mm |
| 10 | Software | Type 3 software, Artcut software, Artcam software |
| 11 | Max. Power consumption | 900W |
| 12 | Power supply | AC 220/50Hz for your need |
| 13 | Driver type | Stepper motor |
| 14 | Memory | 1MB |
| 15 | Spindle | 1.5KW variable speed, water cooled motor |
| 16 | Spindle speed | 0 - 24, 000rpm |
| 17 | Blade diameter | 1 - 6m |
| 18 | Control system | Artcut or Wei hong (NCSTUDIO) or DSP (USB interface) |
| 19 | Command | G code, u00, mmg, plt |
| 20 | Interface | RS232 |
| 21 | English LCD | yes |
| 22 | Running circumstance temperature | 0 - 45 °c |
| 23 | Relative humidity | 30% - 75% |
Jinan Dwin Technology Co., Ltd. is a high-tech enterprise that is engaged in the research, manufacture and sale of laser machines, laser engraving and cutting machine, laser marking machine ,CNC routers and relevant advertisement products. Dwin has gained CE, FDA and ISO certifications. Our company has successfully produced DW series of products which enjoy a good reputation. Excellent quality and fast service make our products spread over Europe, America, the Middle East and Southeast Asia.
The machine warranty
1. One year (Spindle motor is half year. The consuming parts such as blades, sensor, power cable are excluded.)
2. free training from our side.
3. lifelong maintenance free of charge.
4.24 hours support from our experienced professional technicians.
sales service
Before sale
Carefully listening to your requirement, checking every detail of your information and providing most helpful advices accordingly.
During sale
Strictly monitoring every process of production, dealing with all the packaging and shipping affairs, and solving all the problems.
After sale
Providing Friendly English version manual and operation video CD disc.
Solving every problems during using and maintenance.
Providing good after service calls from our professional technicians who speaks very good English.
Sending our technician abroad if there is big problem by any chance.
The after sale service is lifelong.
We accept every suggestion from you, and if you have any other need, we will do great efforts to meet it.
