Help Center40T Commercial RO Plant for Drinking Water
Related Products
-
Domestic Water Treatment Small RO PlantUS$ 1,000 - 100,000MOQ: 1 Set -
RO Water Purifier Plant for Water TreatmentUS$ 1,000 - 100,000MOQ: 1 Set
-
18000GPD Water Purification SystemUS$ 2,000 - 10,000MOQ: 1 Set
-
2014 Water Purification Systems for AfricaUS$ 2,000 - 10,000MOQ: 1 Set
-
Reverse Osmosis Water Purifier SystemUS$ 1,000 - 100,000MOQ: 1 Set
Specifications
Type:water treatment RO deviceModle:RO-240000
Flow :240000GPD/40T/H
Voltage:220V/380V
Frequency:50HZ/60HZ
SERO Series
Instruction
SERO- series is a Reverse Osmosis System with pretreatment devices and wide range production from 800 to 600000GPD (0.125T/H~100T/H)with easy installation and low cost maintenance.
Features:
Pretreatment System
(1)Quartz sand/manganese sand filter
(2)Activated Carbon filter
(3)Softener
(4)Dosing system
Main engine of RO Plant mainly includes:
(1)Pumps;
(2)DOW/CSM/Hydranautics Membrane
(3)Membrane Vessel(SS/FRP)
(4)PLC control/Relay control
(5)UV sterlilizer&Ozone
Functions:
A. Auto flush/Fully automatic control
B. Low/high pressure protection
C. Tank level control
D. Back wash ® Eneration control.
Specifications :
|
Model |
Flow L/H |
Membrane |
HP Motor(KW) |
Phase |
Piping Inlet |
Approx. Dimension |
|
150psi |
225psi |
L×W×H(cm) |
|||||
SERO-800 |
125 |
4021×1 |
0.55 |
1.1 |
single |
1/2" |
160×70×172 |
SERO-1500 |
250 |
4040×1 |
1.1 |
1.5 |
single |
3/4" |
160×80×172 |
SERO-3000 |
500 |
4040×2 |
1.1 |
2.2 |
single |
3/4" |
160×80×172 |
SERO-4500 |
750 |
4040×3 |
1. |
2.2 |
single |
1" |
170×80×185 |
SERO-6000 |
1000 |
4040×4 |
1.5 |
2.2 |
three |
1" |
190×90×185 |
SERO-7500 |
1250 |
4040×5 |
1.5 |
2.2 |
three |
1" |
215×90×185 |
SERO-9000 |
1500 |
4040×6 |
2.2 |
3 |
three |
1-1/4" |
230×90×185 |
SERO-12000 |
2000 |
4040×8 |
2.2 |
3 |
three |
1-1/4" |
280×90×195 |

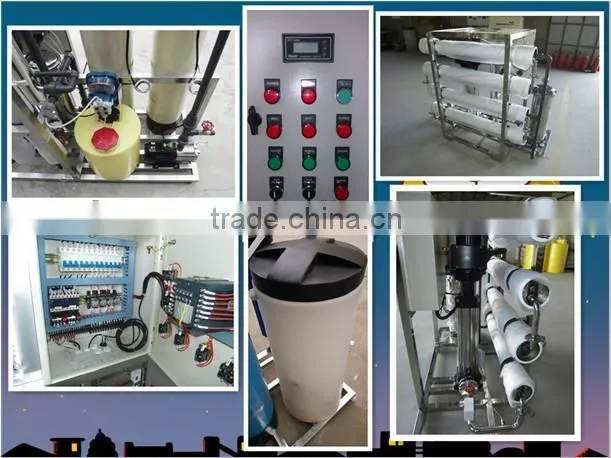

The whole system draft:

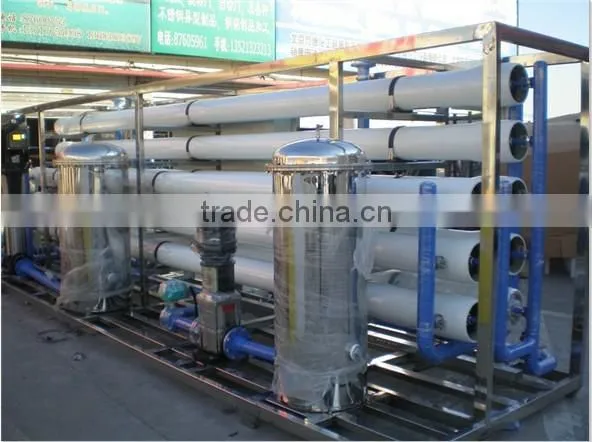

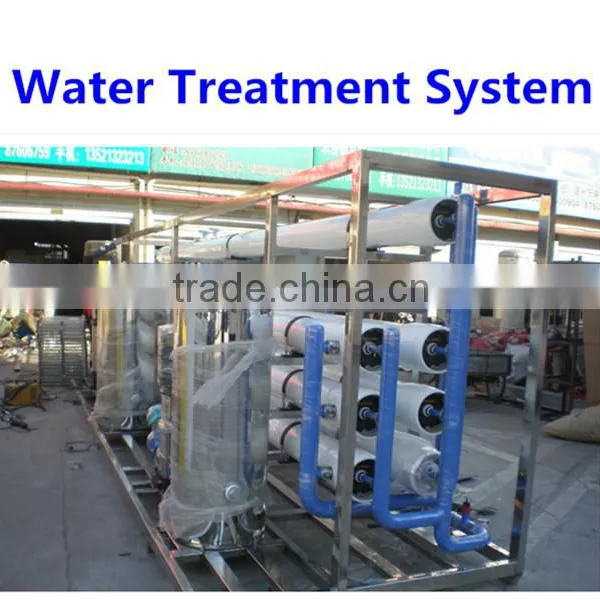

RO plant with pretreatment

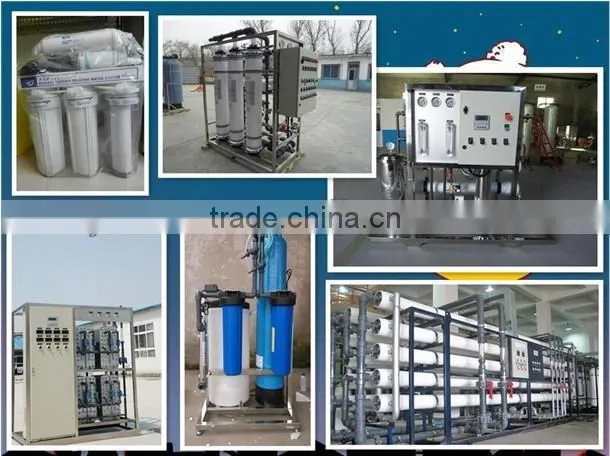

Our Best sells of Water Treatment Equipment :

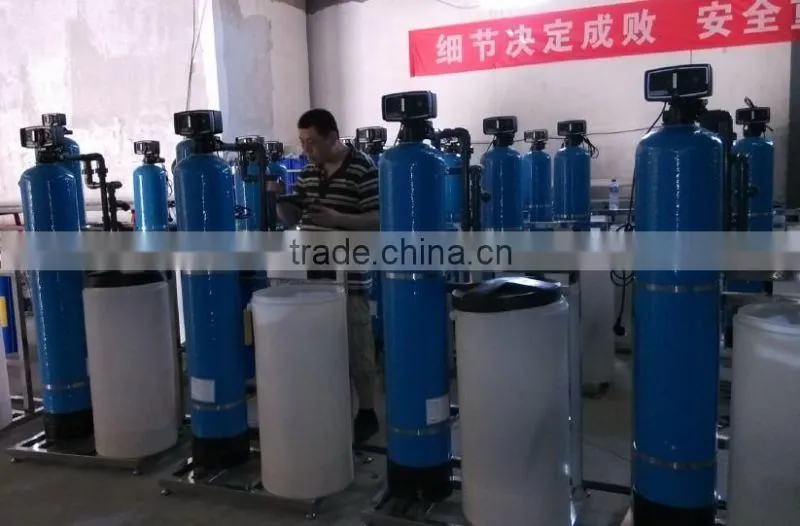

Softener System:

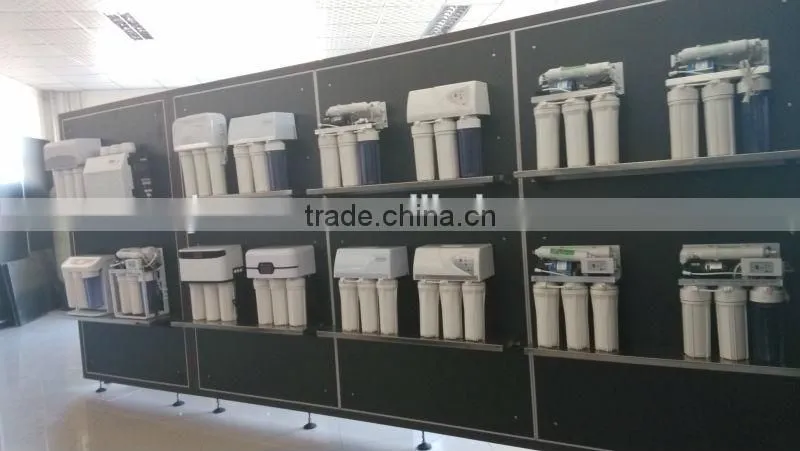

Domestic RO System:

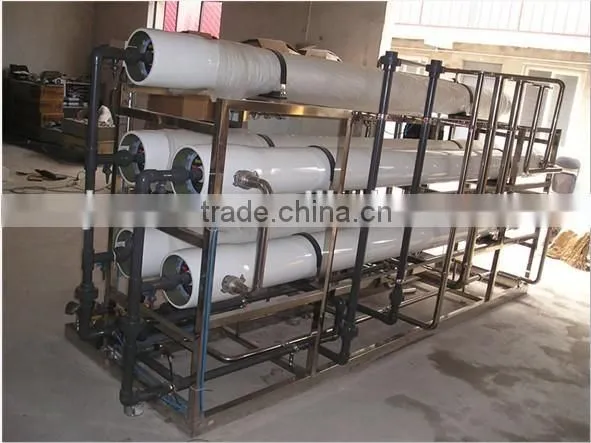

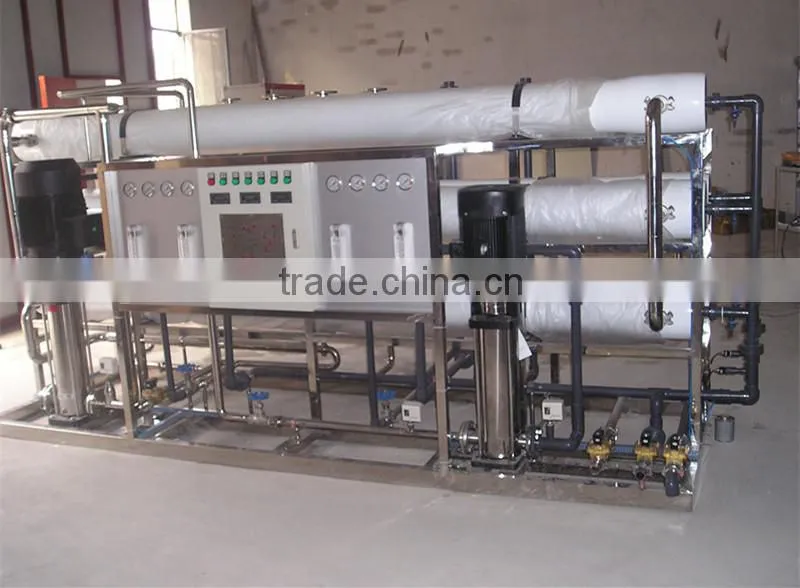

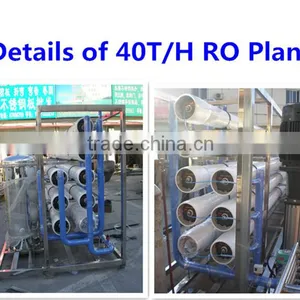

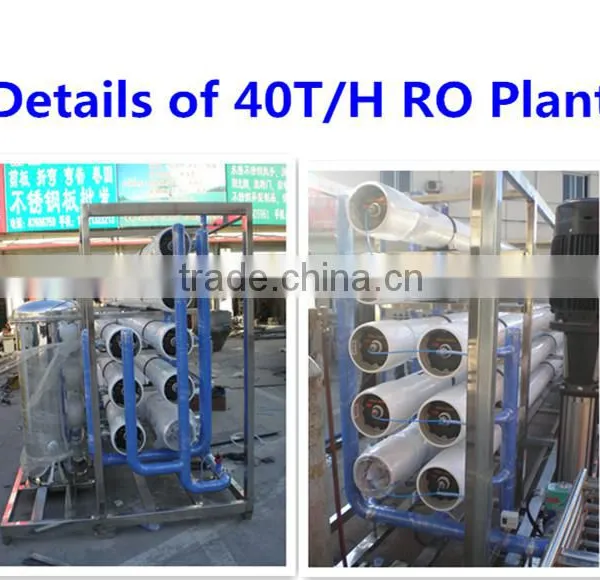

Details of RO Main Machine

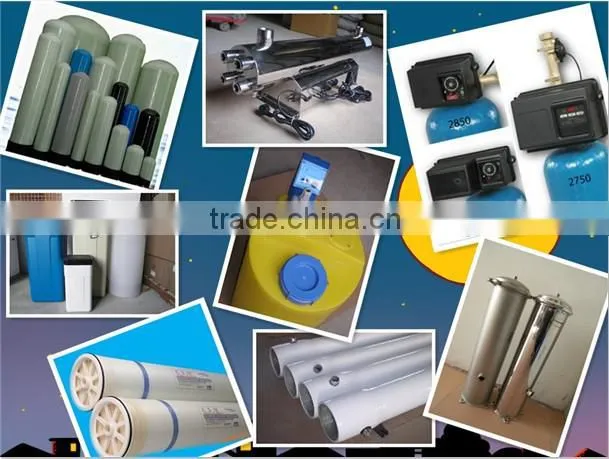

Our Hot Sell Water Treatment Accessories:
Certificates and Agent License :
(1) We offer Sample for both components and Equipment;
(2) 100% Factory Tested before shipment;
(3) 1 year Manufacturer's Warranty;
(4) 2 years' trouble free service;
(5) Solve your problem within 24 hours.
Best quality+ Thoughtful service=100% trust
(1)Q: Payment Terms?
A: 100% Advanced Payment by T/T /100% by Western Union Payment /100%L/C at sight /Ways agreed by both parts ;
(2)Q:Delivery Time?
A: Within 10 days except QTY larger than 10Sets;
(3)Q:MOQ for RO system?
A: 1 set ;
Any Needs,Please contact Bella:
Send Inquiry to This Supplier
