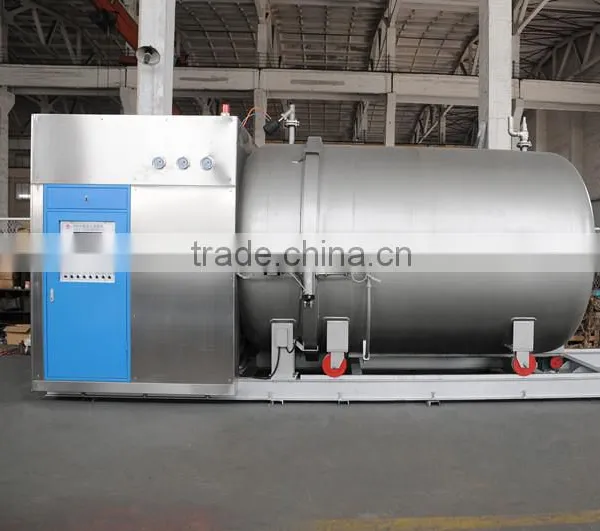

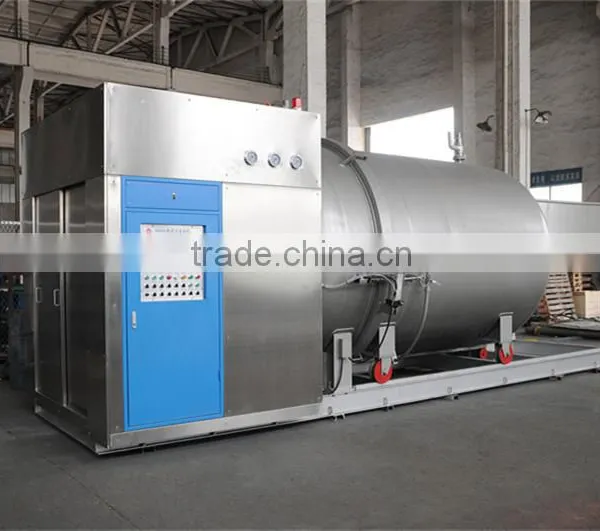

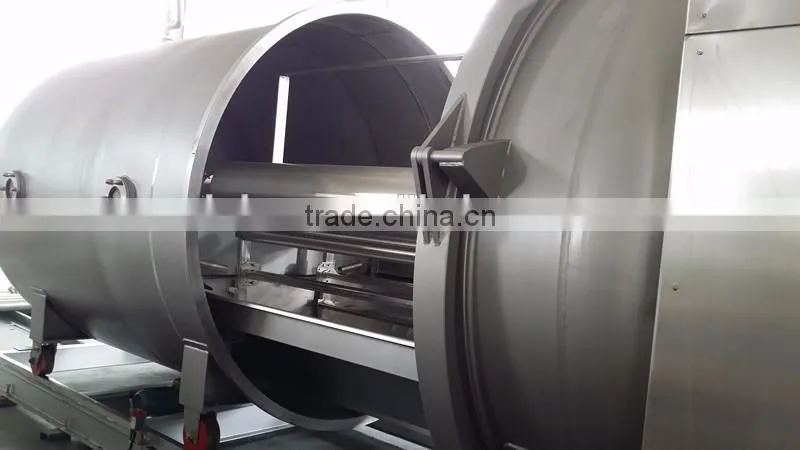

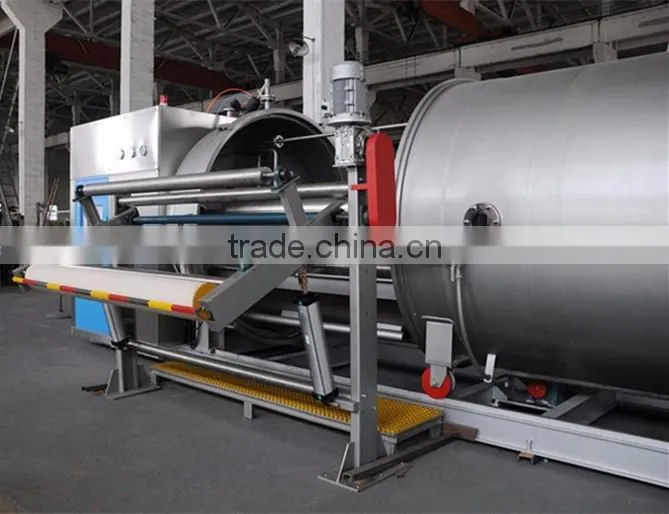

High Temperature Push Type Open Width Jigger Dyeing Machine

US$ 50,000 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Automatic Grade:

Automatic

Place of Origin:

Jiangsu, China

Wuxi Hongda Dye-Finishing Euipment Producting Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Automatic Grade Automatic

Place of Origin Jiangsu, China

Brand Name HD

Model Number HD618 series

Voltage 220V/380V

Power(W) 7.5kw

Certification CE Marking

Warranty 13 Months

After-sales Service Provided Engineers available to service machinery overseas

HD618 Series High Temperature High Pressure

Push-type Jigger Dyeing Machine

Specifications:

1. High temperature high pressure

2. Push type

3. Jigger

4. Dual-inverter

5. Open width dyeing

Application:

Suitable fabric : Viscose, nylon, elastic fabric, silk, cotton, polyester, hemp, blended faric, etc.

Main technical prameter:

1	Rolling diameter	〈Φ680mm 〈Φ800mm 〈Φ1000mm 〈Φ1200mm
2	Roller width	1600mm ~ 3400mm
3	Efficient width	1400mm ~ 3200mm
4	Fabric speed	2~120m/min
5	Tension range	0~60KG
6	Temperature control range	0~135℃
7	Rolling roller diameter	Φ220mm / Φ245mm / Φ300mm / Φ325mm
8	Motor power of main roller	2 sets are 4~7.5KW

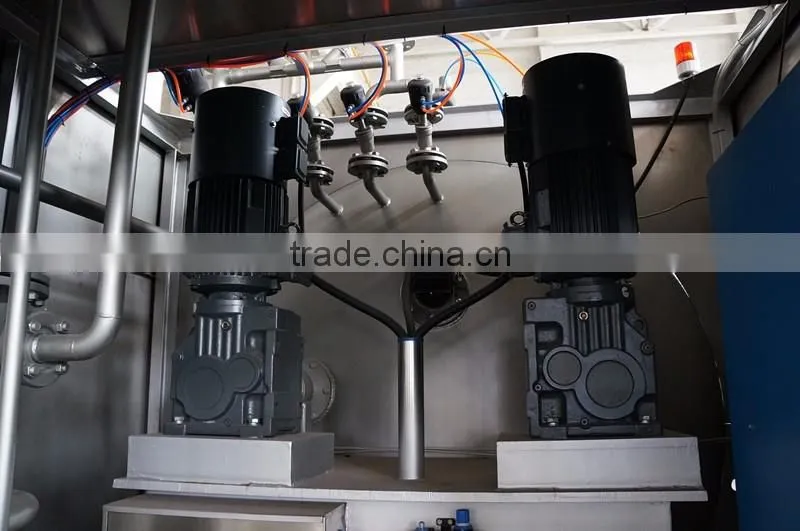

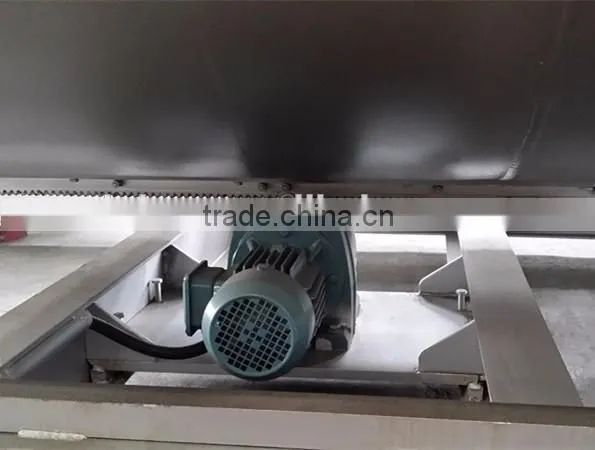

9	Tank body mobile motor power	0.75KW

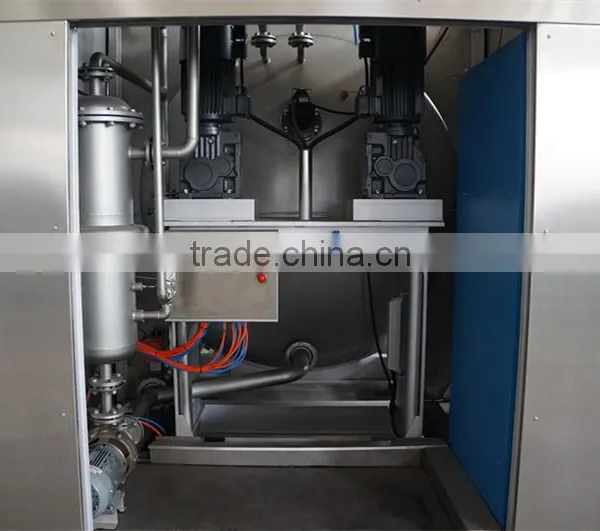

10	Motor power of circulating pump	2.2KW

Main control functions:

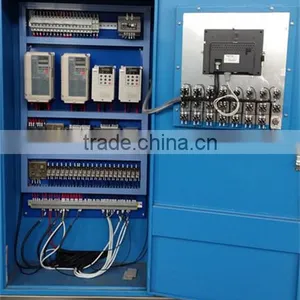

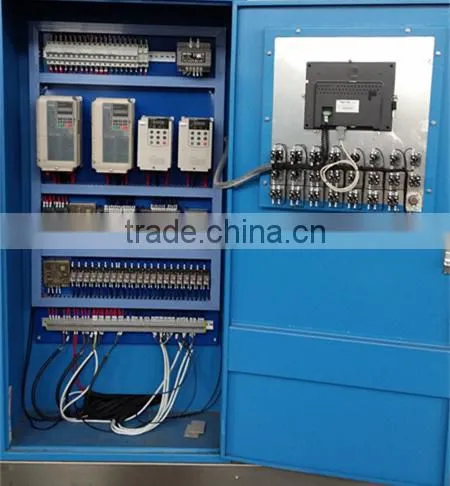

1	Whole machine is dual frequency converter control system, human-computer operation interface
2	Set of constant tension, constant linear speed
3	Functions of manual, automatic, speed up, slow down
4	Automatic head back, automatic record the lines, automatic stop machine, automatic swing function if line is full
5	Whole machine automatic temperature control, technological operation
6	Operation screen programmable set, technology storage, automatic identification, automatic alarm
7	Liquid level automatic control, automatic charging, automatic circulating
