Latest and High Quality Automatic Paper Machine to Make Face Paper

Name: Latest and High Quality Automatic Paper Machine to Make Face Paper
Brand: Elitis
SKU: 127115253
Availability: InStock

US$ 3,000 - 50,000 MOQ: 1 Set

Key Specifications

Condition:

New

Product Type:

Other, paper machine to make face paper

Processing Type:

Paper Folding Machine

Nanning Elite Tissue Converting Machinery Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Product Type Other, paper machine to make face paper

Processing Type Paper Folding Machine

Place of Origin Guangxi, China

Brand Name Elitis

Model Number FM-200

Voltage 380V

Power(W) 5.5KW

Dimension(L*W*H) 4800 x 1800 x 2100 mm

Weight 1500 KG

Certification CE

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

paper machine to make face paper
1 CE compliant
2 Full Automatic
3 Electric inspection system

Technical parameters of paper machine to make facial paper

Machine model	5 lanes; (Customized Up to 9 lanes.)

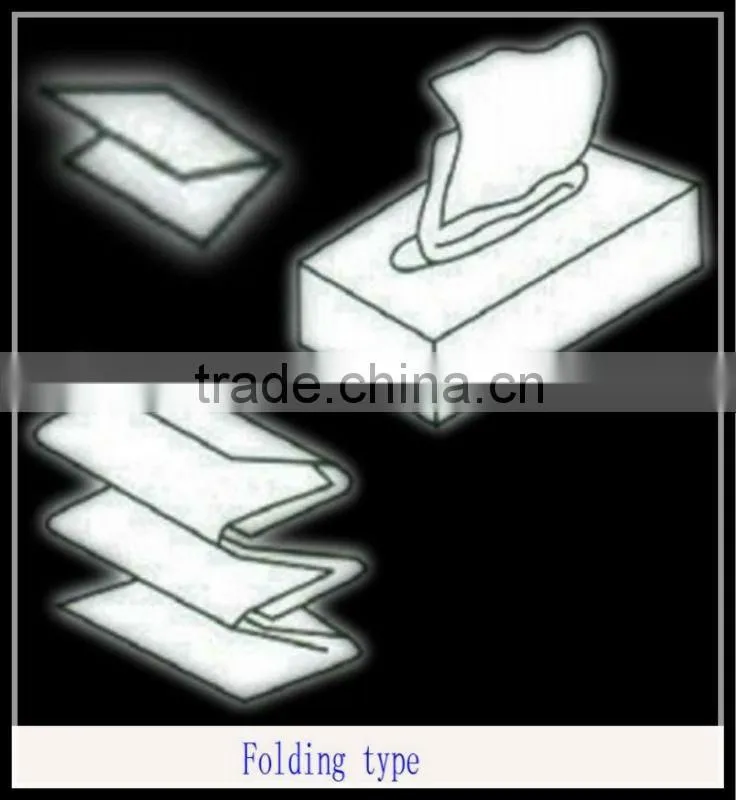

Use	Production of facial tissue machine or V fold hand towel
Sheet size	200 x 210 ± 2 mm; Other sizes please specify.
Folded size	100 x 210 mm ± 2/100 x 170 mm ± 2;
Parent Roll Size	210 x 3/630 x 1100 mm diameter
Parent Material	13-16g/m2 Two plies wood pulp tissue paper or others.
Raw material core diameter	3’’ (76.2 mm); Other sizes please specify.
*Folding speed*	*700-1000 pics/min x 5 lines or 160-200 m/min*
*Program control*	Frequency speed control; PLC; Electric inspection system
Embossing unit	Steel to rubber embossing; steel to steel embossing(optional).
Button embossing roll	Felt roller; paper roller; rubber roller(optional).
Edge embossing; Calendaring	Optional
Web guiding system	Optional
Air pump power	7.5-30 KW
Pneumatic system	3 HP air compressor; mini pressure 5 kg/cm2 pa (Provided by client).
Main motor power	5.5-11 KW
Machine Size	4800 x 1800 x 2100 mm
Weight	1500 KG
