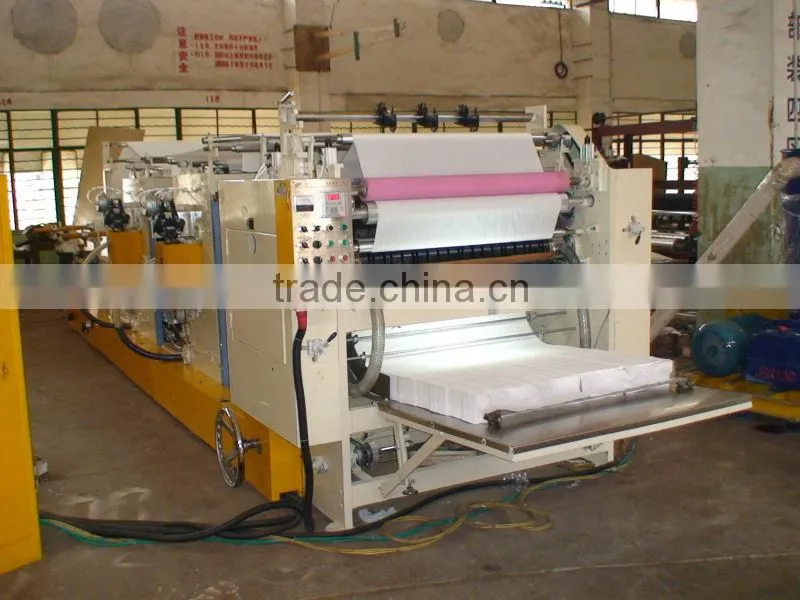

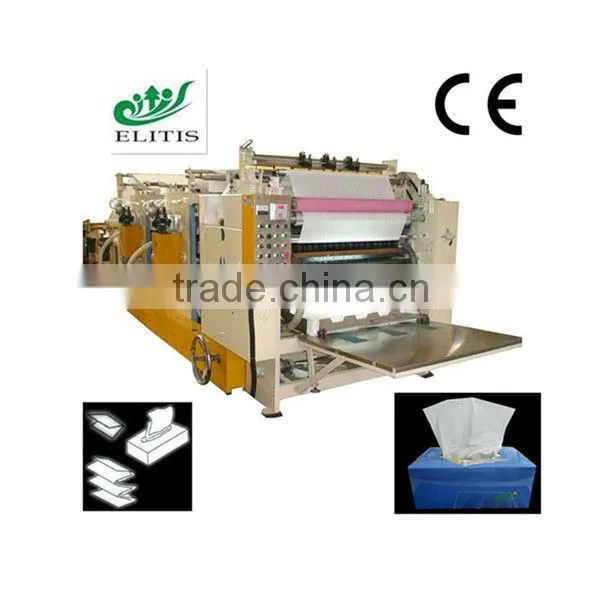

Help CenterNeatly Folded Tissue Paper Embossing Machine
Related Products
-
Automatic High Speed FM Series Facial Tissue Making MachineNegotiableMOQ: 1 Set -
High Quality and Automatic Box Facial Tissue Making MachineUS$ 1 - 50,000MOQ: 1 Set
-
High Speed Automatic Facial Paper MachineUS$ 10,000 - 30,000MOQ: 1 Set
-
Superior Quality and High Speed Machinery for Embroidery Design Facial PaperUS$ 3,000 - 70,000MOQ: 1 Set
-
Top Grade Automatic PLC Control Machines to Produce Tissue PaperUS$ 1 - 50,000MOQ: 1 Set
Specifications
Paper Embossing Machine1 Customized printing&embossing
2 Adjustable product size
3 CE compliant
4 One year warranty
Paper Embossing Machine Technical parameters
Machine model |
6 lanes; (Customized Up to 9 lanes.) |
Use |
Production of facial tissue machine or V fold hand towel |
Sheet size |
200 x 210 ± 2 mm; Other sizes please specify. |
Folded size |
100 x 210 mm ± 2/100 x 170 mm ± 2; |
Parent Roll Size |
210 x 3/630 x 1100 mm diameter |
Parent Material |
13-16g/m2 Two plies wood pulp tissue paper or others. |
Raw material core diameter |
3’’ (76.2 mm); Other sizes please specify. |
Folding speed |
700-1000 pics/min x 6 lines or 160-200 m/min |
Program control |
Frequency speed control; PLC; Electric inspection system. |
Embossing unit |
Steel to rubber embossing; steel to steel embossing(optional). |
Button embossing roll |
Felt roller; paper roller; rubber roller(optional). |
Edge embossing; Calendaring |
Optional |
Web guiding system |
Optional |
Air pump power |
7.5-30 KW |
Pneumatic system |
3 HP air compressor; mini pressure 5 kg/cm2 pa (Provided by client). |
Main motor power |
5.5-11 KW |
Machine Size |
4800 x 1800 x 2100 mm |
Weight |
1500 KG |
