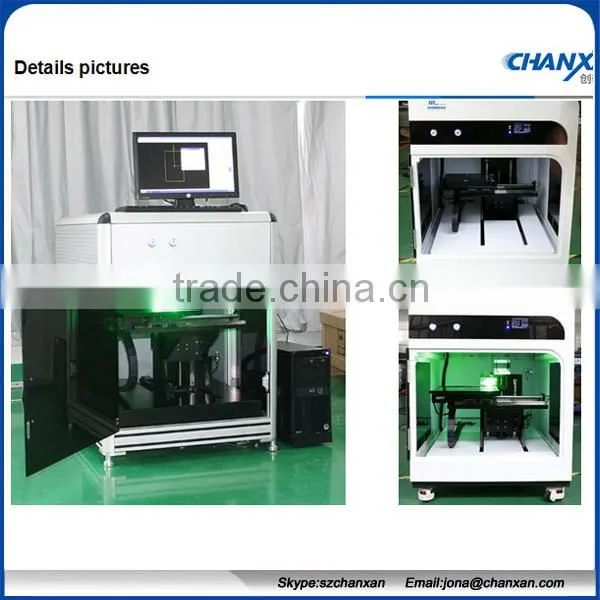

Chanxan Crystal subsurface Engraving Machine :
1.Suzhou Biggest laser machine factory!
2.9 years experience on producing machine and laser technology research.Gold quality and Service!
3.Cooperate with Nanjing Aero-Space University and Beijing University!
4.Near with shanghai,1 hour by bus,0.5 hour by train!
Machine features:
1.3D Laser engraving machine is an open-ended engraving machine, Widely used for crystal, glass, acrylic, etc surface and inner side engraving and marking. so it is also called Crystal portrait laser marking machine.
2.This equipment is a multi use machine, compatible with the light end of the pump, pump side marking machine and small power carbon dioxide machine function; can be used internally carving transparent material, also can be in material external sculpture.
3.Key components from Germany and United States, the design more reasonable, stability is good even long-term working.
4.Perfect developed software, combined with 3D camera can be finely crafted 3D portrait.
5.Enclosed type work platform,avoid eyes straight looking green light,ensure the safety.
Applicable industry:

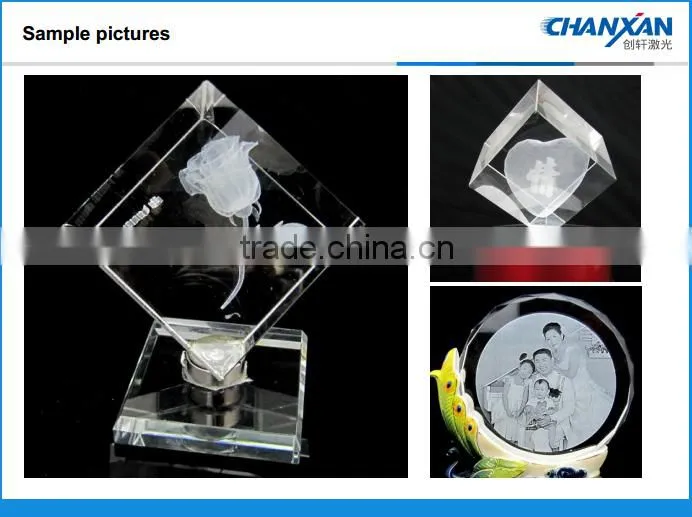

1.Making and processing for crystal and glass art work,film mansion, mirror and so on;
2.Scenic spots, hotels, gallery engraving.
3.Subsurface engraving for transparent material, such as cell phone keys, film sticking,
4.For automotive lamp; eye glasses, glasses industry; industry dial watch engraving of arbitrary characters and words
Technology parameters:
Model CX-3LGS CX-3LGB
Laser pumping semiconductor diode semiconductor diode
Laser wavelength 532nm 532nm
Laser frequency 4kHZ(4000HZ) 4kHZ(4000HZ)
Maximum pulse energy 1.2mj 1.2mj
Laser power 3w 3w
Q-mode Acousto-optic-Q Acousto-optic-Q
Pulse width 7ns 7ns
Beam quality m2<1.5 m2<1.5
Maximum engrave speed points 220000dots/minutes 220000dots/minutes
Maximum marking scope 200mm*150mm*80mm 300mm*400mm*150mm
Resolution 800DPI -1200DPI 800DPI -1200DPI
Focal length 100mm 100mm
Focus diameter 0.02mm 0.02mm
Cooling air cooling air cooling
Application materials crystal .glass etc crystal .glass etc
Device input power AC220V±10% 50-60Hz AC220V±10% 50-60Hz
Our factory:
- Delivery time just 3~6 days after receive clients’ payment. 2 years warranty for whole machine.
- Support alibaba online payment,More security, make you safe and worry-free.
- 5000 sq factory,All machines will be tested before exporting abroad to guarantee the machine work perfectly.
- Manual and video will be sent for how to install machine and training.Internet remove assistance is available everyday.
- Near with shanghai,0.5 hour by train to our city! You are welcomed to our factory free training.
- Special design optical path adjustment,make the adjustment easy and the optical path is standard,supply whole life technical support for free.
