Help CenterChanxan Brand! CNC Fabric Cutting and Engraving Laser Bed With Auto Feeding System Website:nancyhyy88
Related Products
-
Bridge Type Laser Embroidery,Laser Embroidery SystemUS$ 800 - 16,000MOQ: 1 Set -
Laser Embroidery Cutting MachineUS$ 800 - 16,000MOQ: 1 Set
-
Multifunctional Laser Cutting Machine for EmbroideryUS$ 800 - 16,000MOQ: 1 Set
-
20w Metal Automatic Turntable Laser Marking Machine With CEUS$ 10,500 - 10,600MOQ: 1 Set
-
Fully Automatic Online Flying Fiber Marking Machine for Production Line MarkingUS$ 10,500 - 10,600MOQ: 1 Set
About Chanxan fabric cutting and engraving laser bed
1.Suzhou Bigest laser machine factory!
2.9 years to product machine and laser technology research.Gold quality and Service!
3.Cooperate with Nanjing Aero-Space University!
4.Near with shanghai,1 hour by bus,0.5 hour by train!
Machine Advanced:
The machines adopt the advanced international DSP control technology.It is the pioneer who have a fast and continuous curve
engraving and shortest proceeding functions,which can raise working efficiency.For mark sure keep the same cutting and
engraving results of different areas,our machines adopt optical compensation .The high-speed cutting and engraving control software and buttering functions, which can raise producing efficiency.
Applicable industries:
Wood,cloth, embroider,fabric toy,furniture,reticule,glove,bag,leather,advertising middle density board etc nonmetal sheet.
Applicable materials:
wood, paper, leather, cloth, organic glass,resin,acrylic,wollens,plastic,rubber,ceramic title,crystal,bowlder,bamboo etc nonmetal materials.
Model: |
CW-1325 CW-1625 |
CW-2030 CW-1830 |
Processing area: |
1300 mm x 2500 mm 1600 mm x 2500 mm |
2000 mm x 3000 mm 1800 mm x 3000 mm |
Laser power: |
80W-150W |
80W-150W |
Cutting speed: |
0-800mm/s |
0-800mm/s |
Engraving speed: |
0-1000mm/s |
0-1000mm/s |
Position accuracy: |
<0.02mm |
<0.02mm |
Image format: |
DXF/ PLT / BMP/ AI / HML / DST |
DXF/ PLT / BMP/ AI / HML / DST |
Cooling system: |
Enforce water cooling and protect system |
Enforce water cooling and protect system |
machine power: |
2500W |
2500W |
Weight: |
600KG / 700KG |
800KG / 900KG |
Work temperature: |
1°C-45°C |
1°C-45°C |
Work humidity: |
5% - 95% Non-condensate water |
5% - 95% Non-condensate water |

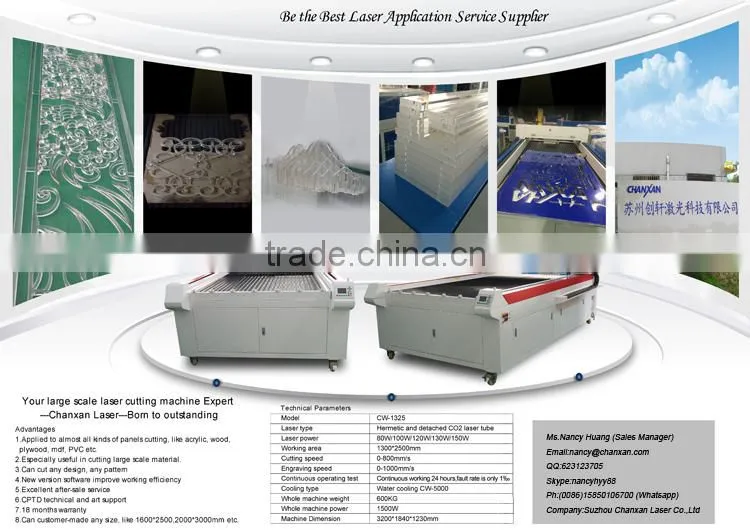

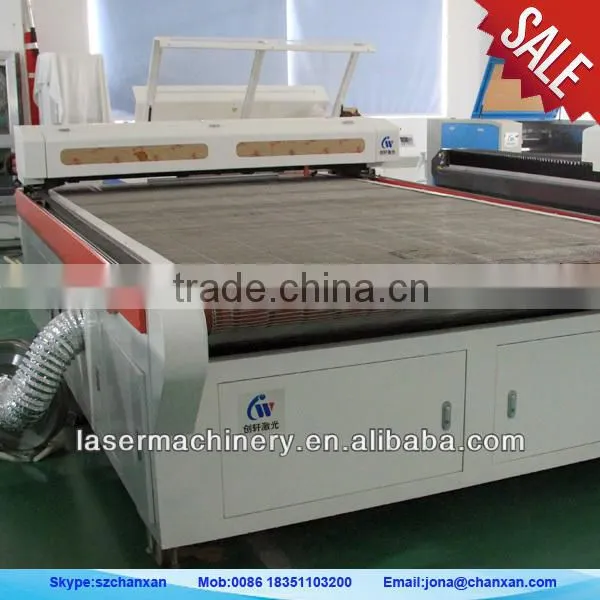

Machine Picture:
Cooperated enterprises:
Contact: Nancy Skype:nancyhyy88 Mob : 0086-15850106700
fabric cutting and engraving laser bed
