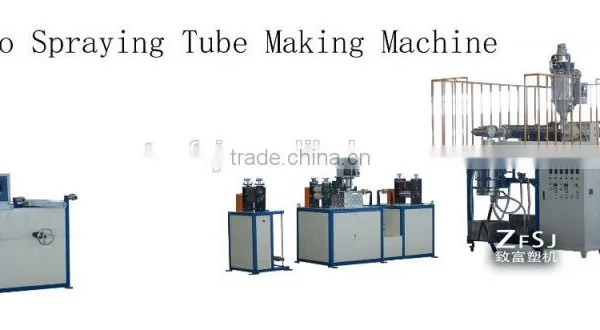

PE Irrigation Spray Tube Sprinkler Hose Pipe Machine

PE Irrigation Spray Tube Sprinkler Hose Pipe Machine thumbnail-1
PE Irrigation Spray Tube Sprinkler Hose Pipe Machine thumbnail-2
PE Irrigation Spray Tube Sprinkler Hose Pipe Machine thumbnail-3
PE Irrigation Spray Tube Sprinkler Hose Pipe Machine thumbnail-4
PE Irrigation Spray Tube Sprinkler Hose Pipe Machine photo-1
PE Irrigation Spray Tube Sprinkler Hose Pipe Machine photo-2
PE Irrigation Spray Tube Sprinkler Hose Pipe Machine photo-3
PE Irrigation Spray Tube Sprinkler Hose Pipe Machine photo-4
US$ 30,000 - 35,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Pipe
Plastic Processed:
PE
Contact Supplier Request Quote Chat Now
Tangshan Zhifu Plastic Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG TIANJIN CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Pipe
Plastic Processed PE
Screw Design Single-screw
Automatic Grade high
Place of Origin Hebei, China
Brand Name ZFSJ
Model Number SJWP-60
Voltage 380V, 3PHASES, 50HZ
Power(W) 48KW
Dimension(L*W*H) 11*2.25*3.6M
Weight 4T
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Product Description

PE irrigation spray tube  sprinkler hose pipe machine

PE irrigation spray tube sprinkler hose pipe machine







Ⅰ,Production line component

No.

Device

Quantity

Total power

(KW)

Length of Single machine

(m)

Weight

Of single machine

(T)

1

Automatic material feeding drying system

1set

2.5

1.2

0.075

2

ZFSJ-60×30/1 single screw extruder

1pcs

28

3.3

0.7

3

mold (includes patented product: durable net)

1 set

7

0.5

0.07

4

Vacuum sizing device

1 pcs

1.45

0.6

0.1

5

Tractor,punching machine

1 pcs

3.25

2.2

0.6

6

Cushion tractor

1 set

0.75

0.5

0.1

7

winder

1 pcs

3

1.4

0.3

 8

electric cabinet

1 pcs



0.9

0.1

II. Detailed instruction on machine

 (One) Automatic material feeding and drying system

Material feeding way                                  vacuum absorption way

Drying way                                                  automatic controlling hot wind heating



 (Two)ZFSJ-60×30/1 single screw bolt extruder

  1) Model                                                   ZFSJ-60×30/1



2)screw bolt

diameter                                                        60mm

L/D ratio                                                30:1

Material                                                 38CrMoAlA

Surface treating                                      nitriding,polished

3)barrel

material                                                   38CrMoAlA

heating controlling area                                 3 areas

heating way                                            copper inside and steel outside heating ring



(Three) Extrusion mold ,durable net

The form of extrusion mold           spiral type

Net changing way             durable net  (patented product)

heating controlling area                                    2

mold durable net heating way   Copper inside and steel outside heating rings

mold durable net heating way power                  7KW(220V)



(Four) Vacuum water tank

sizing method                            vacuum sizing

vacuum jacket material                     wear resisting copper

Vacuum pump power                       1.45kw

(five)Tractor,punching machine

hauling off type                                                     roller type

Clamping type                                               manual operation spring clamping

Shaping speed                                               ≤25m/min

Hauling off motor

method                             AC frequency conversion

power                                           1.5KW

otating speed                                 50HZ   1500 R/Min

the control motor of hole space

method                                              servo motor

power                                            0.75kw

the control motor of hole drilling

method                                              servo motor

power                                            1kw

(Six) cushion tractor

hauling off type                                                  roller type

Clamping type                                              manual operation spring clamping

Shaping speed                                              ≤25m/min

Hauling off motor

method                             AC frequency conversion

power                                           1.5KW

rotating speed                                 50HZ   1500 R/Min



 (Seven) Double station winder

Winding type                                                semi-automatic control

Roll changing way                                        manual

Rolling length                                            200m

Winding motor

Ø  method                                       torque motor

Ø driving power                                  0.75kw*2

 PE irrigation spray tube sprinkler hose pipe machine

 (Eight) electric cabinet

Low-voltage electrical equipment              French Schneider

Frequency convertor                        Taiwan Delta

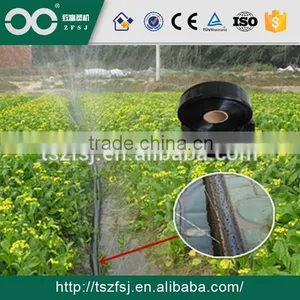

Final Products



PE irrigation spray tube sprinkler hose pipe machine



Main Export Market

Africa ,Asia ,Central America ,Europe ,Middle East ,North America ,Other ,South America

 The raw material:100% PE virgin material

  1. Packaging&Delivery:1). Packaging: inner plastic film, carton box outside.2). Delivery period: 5-10 working days  3). Sea shipping port: TIANJIN, CHINA
Packaging & Shipping

Machine package : strong seaworthy wooden Box

Container : 20F

Transportation way : By sea .

Tianjin,Xingang port,China .



PE irrigation spray tube sprinkler hose pipe machine

CERTIFICATE

Our Services

Sales Manager: LYNDA SONG & LILY LEE

have been working in ZHIFU Plastic Machinery Co.,Ltd for more than 7 years.

give you the best service and the most professional products introduction.

any questions,please feel free to contact us.

looking forward to cooperate with you sencerely

PE irrigation spray tube sprinkler hose pipe machine
