Side Mirror Actuator DC Motor FC-140A FC-140A

Side Mirror Actuator DC Motor FC-140A FC-140A thumbnail-1
Side Mirror Actuator DC Motor FC-140A FC-140A photo-1
Negotiable MOQ: 40000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Use:
Other, Dolls & Hobby
Place of Origin:
Guangdong, China
Brand Name:
ChengFang, Chengfang
Contact Supplier Request Quote Chat Now
Shenzhen Chengfang Electric Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Use Other, Dolls & Hobby
Place of Origin Guangdong, China
Brand Name ChengFang, Chengfang
Model Number FC-140SA, FC-140SA

Side mirror actuator motor




Toy vehicle motor
Weight: 22g Approx
ISO/TS16949 certified company



The models we list below are part of our existing designs.

We offer specific motor design for every customer.



FC-140A

Model No. Main Performance
Rated Voltage No Load At Maximum Efficiency At Stall
Speed Current Speed Current Torque Output Eff. Current Torque
  V r/min A r/min A g.cm W % A g.cm
FC-140SA-12220 12.0 CONST 13,000 0.09 10,184 0.33 23.5 2.49 62.5 1.2 110
FC-140SAV-09330 12.0 CONST 9,300 0.046 7,160 0.16 16.1 1.19 63.7 0.52 70
FC-140SA-07720 12.0 CONST 3,600 0.023 2,600 0.06 11.1 0.3 40.6 0.16 40
FC-140SAV-07700 13.5 CONST 4,250 0.027 3,076 0.07 15.2 0.48 49.4 0.19 55

 Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in   1mm=0.039in   1g=0.035oz

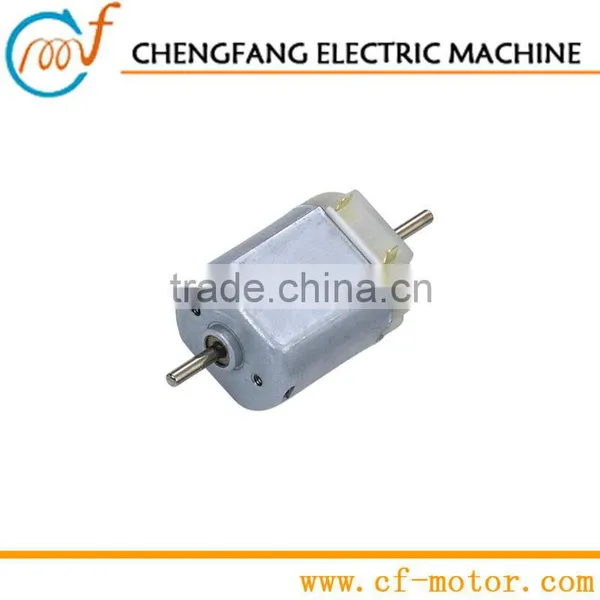

Side mirror actuator DC motor FC-140A FC-140A

Side mirror actuator DC motor FC-140A FC-140A







  • Side mirror actuator motor
  • Toy vehicle motor

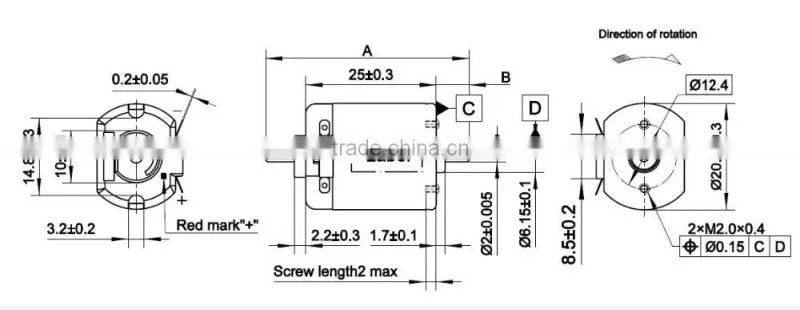

  • Dimension:dia. 20.4 x 15.4 Thk. x 25 L. shaft O.D. 2.0 mm
  • Basic Structure: SECD housing / Plastic end cap / Side terminal
  • Application: Side mirror / Toy vehicle
  • Weight: Approx. 22g


Basic Structure of Chengfang Motors

Customized Options

·2-pole stator
·Sr ferrite permanent magnet
·3, 5, 7, 8, 9, 12,16 slots armature
·Silicon-steel lamination with epoxy coating
·High-carbon steel shaft
·Cu-Ag alloy commutator
·Copper-graphite brushes
·Be-Cu leaf-brush commutating system
·SECD round / flat type housing
·SECD end cap / glassfiber reinforced PA6/6 end cap
·Cylinder / self-aligning Cu-Fe alloy sintered bushes
·155oC (class F) magnet wire










·Leadwires with connector / pins
·EMI suppression components
·PTC or thermostate protection
·Built-in AC/DC rectifier
·Built-in cooling fan
·Multiple output shaft
·diamond knurls, straight knurls, D-cut, stepped shaft
·Shaft-mounted gears, eccentric gears, belt pulleys
·Stainless steel (SS304, SS420) shaft
·Ball bearing
·Cage-brush commutating system
·Precious metal brush / commutator
·Hall encoder
·Low-cogging torque design
·180oC (class H), 200oC (class C) magnet wire
·-40oC ~ 220oC bearing lubricant
·Neodymium magnets

Side mirror actuator DC motor FC-140A FC-140A
