Trunk Lock Actuator Motor FK-280A, 12V dc Motor

Trunk Lock Actuator Motor FK-280A, 12V dc Motor thumbnail-1
Trunk Lock Actuator Motor FK-280A, 12V dc Motor photo-1
US$ 0.4 - 0.6 MOQ: 40000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CF Motor, Chengfang
Model Number:
FK-280SA, FK-280SA
Contact Supplier Request Quote Chat Now
Shenzhen Chengfang Electric Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CF Motor, Chengfang
Model Number FK-280SA, FK-280SA

Trunk lock actuator motor
Weight: 38g Approx
Application:  Automotive products / Rotating disc

The models we list below are part of our existing designs.

We offer specific motor design for every customer.



FK-280A

Model No. Main Performance
Rated Voltage No Load At Maximum Efficiency At Stall
Speed Current Speed Current Torque Output Eff. Current Torque
  V r/min A r/min A g.cm W % A g.cm
FK-280SA-4525 1.2 CONST 8670 0.73 6560 2.24 17.7 1.3 48.44 8.34 98
FK-280SA-20120 12.0 CONST 16200 0.18 13522 0.71 38.9 5.63 66.02 4.8 290
FK-280SA-2760 4.5 CONST 12200 0.27 10060 1.21 30.4 3.28 64.33 6.25 215
FK-280SAV-16228 9.0 CONST 6000 0.06 5052 0.32 31.6 1.64 57.1 1.7 200
FK-280SAV-2780 5.0 CONST 10000 0.2 8225 0.93 39.1 3.3 71.2 4.3 220
FK-280PAV-3544 3.0 CONST 11000 0.35 9227 1.82 33.9 3.21 58.7 9.5 210
FK-280SAV-14240 12.0 CONST 8400 0.074 6890 0.29 29.4 2.14 62.01 1.58 190
FK-280SA-3153 2.40 CONST 7500 0.3 6094 1.3 33.8 2.11 67.6 5.64 180

 Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in   1mm=0.039in   1g=0.035oz





Trunk Lock Actuator Motor FK-280A, 12V dc motor

Trunk Lock Actuator Motor FK-280A, 12V dc motor





  • Trunk lock actuator motor

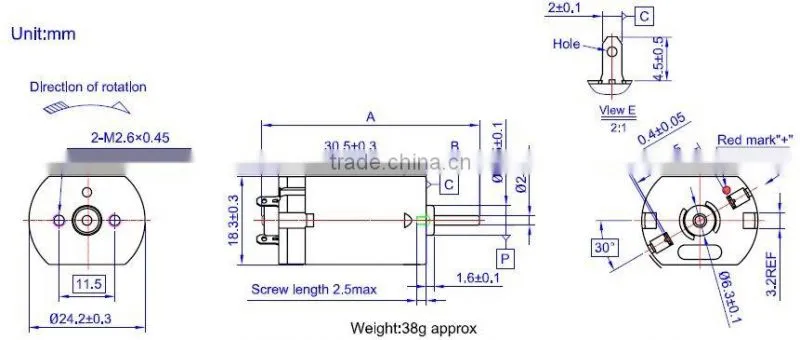

  • Dimension: dia. 24 x 18.3 Thk. x 30.5 L. shaft O.D. 2.0 mm
  • Basic Structure: SECD housing / Plastic end cap / End terminal
  • Application: Automotive products / Rotating disc / Power scissor
  • Weight: Approx. 38g


Basic Structure of Chengfang Motors

Customized Options

·2-pole stator
·Sr ferrite permanent magnet
·3, 5, 7, 8, 9, 12,16 slots armature
·Silicon-steel lamination with epoxy coating
·High-carbon steel shaft
·Cu-Ag alloy commutator
·Copper-graphite brushes
·Be-Cu leaf-brush commutating system
·SECD round / flat type housing
·SECD end cap / glassfiber reinforced PA6/6 end cap
·Cylinder / self-aligning Cu-Fe alloy sintered bushes
·155oC (class F) magnet wire






·Leadwires with connector / pins
·EMI suppression components
·PTC or thermostate protection
·Built-in AC/DC rectifier
·Built-in cooling fan
·Multiple output shaft
·diamond knurls, straight knurls, D-cut, stepped shaft
·Shaft-mounted gears, eccentric gears, belt pulleys
·Stainless steel (SS304, SS420) shaft
·Ball bearing
·Cage-brush commutating system
·Precious metal brush / commutator
·Hall encoder
·Low-cogging torque design
·180oC (class H), 200oC (class C) magnet wire
·-40oC ~ 220oC bearing lubricant
·Neodymium magnets
