Side Mirror Actuator Motor FT-140A, 12V dc Motor

Side Mirror Actuator Motor FT-140A, 12V dc Motor thumbnail-1
Side Mirror Actuator Motor FT-140A, 12V dc Motor photo-1
US$ 0.3 - 0.8 MOQ: 40 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CF Motor, Chengfang
Model Number:
FT-140SA, FT-140A
Contact Supplier Request Quote Chat Now
Shenzhen Chengfang Electric Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CF Motor, Chengfang
Model Number FT-140SA, FT-140A

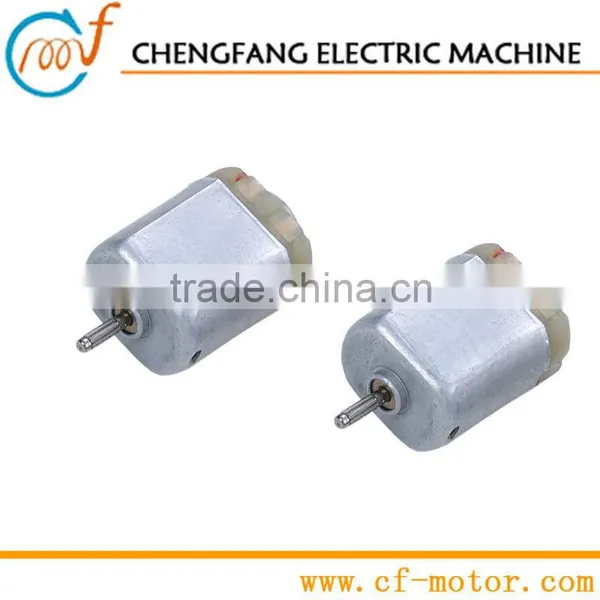

Side Mirror Actuator Motor FT-140A, 12V dc motor



Side Mirror actuator Motor
Headlight cleaning motor
Application: Side Mirror
Weight: 22g Approx.



Note: the models we list below are part of our existing designs. We offer specific motor design for every customer.



FT-140A

Model No. Main Performance
Rated Voltage No Load At Maximum Efficiency At Stall
Speed Current Speed Current Torque Output Eff. Current Torque
  V r/min A r/min A g.cm W % A g.cm
FT-140SA-11275 12.0 CONST 10,200 0.05 8,307 0 18.6 1.58 60 0.96 100
FT-140SA-12240 12.0 CONST 11,500 0.072 9,305 0 26.7 2.55 70 1.3 140
FT-140SA-10350 12.0 CONST 8,200 0.045 6,475 0 16.8 1.12 56 0.63 80
FT-140SA-10385 13.5 CONST 8,070 0.041 6,441 0 20.2 1.34 61 0.64 100
FT-140RA-11305 12.0 CONST 14,000 0.059 11,145 0 12.2 1.4 51 0.9 60
FT-140RA-09480 12.0 CONST 8,600 0.03 6,583 0 11.7 0.79 67 0.32 50



Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in   1mm=0.039in   1g=0.035oz



Side Mirror Actuator Motor FT-140A, 12V dc motor

Side Mirror Actuator Motor FT-140A, 12V dc motor





  • Side mirror actuator motor
  • Headlight cleaning motor

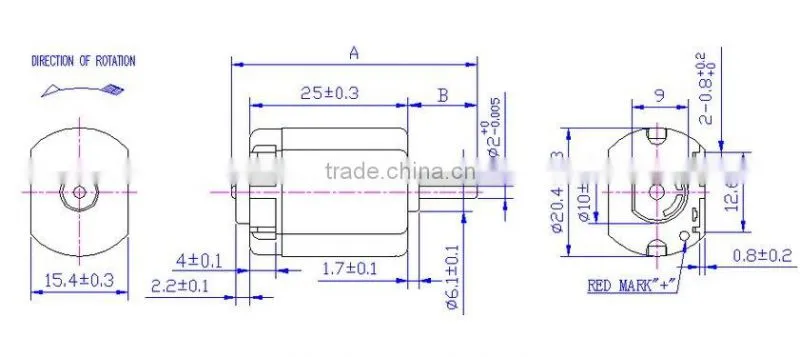

  • Dimension: dia. 20.4 x 15.4 Thk. x 25 L. shaft O.D. 2.0 mm
  • Basic Structure: SECD housing / Plastic end cap / Female Terminal
  • Application: Side Mirror
  • Weight: Approx. 20g


Basic Structure of Chengfang Motors

Customized Options

·2-pole stator
·Sr ferrite permanent magnet
·3, 5, 7, 8, 9, 12,16 slots armature
·Silicon-steel lamination with epoxy coating
·High-carbon steel shaft
·Cu-Ag alloy commutator
·Copper-graphite brushes
·Be-Cu leaf-brush commutating system
·SECD round / flat type housing
·SECD end cap / glassfiber reinforced PA6/6 end cap
·Cylinder / self-aligning Cu-Fe alloy sintered bushes
·155oC (class F) magnet wire






·Leadwires with connector / pins
·EMI suppression components
·PTC or thermostate protection
·Built-in AC/DC rectifier
·Built-in cooling fan
·Multiple output shaft
·diamond knurls, straight knurls, D-cut, stepped shaft
·Shaft-mounted gears, eccentric gears, belt pulleys
·Stainless steel (SS304, SS420) shaft
·Ball bearing
·Cage-brush commutating system
·Precious metal brush / commutator
·Hall encoder
·Low-cogging torque design
·180oC (class H), 200oC (class C) magnet wire
·-40oC ~ 220oC bearing lubricant
·Neodymium magnets
