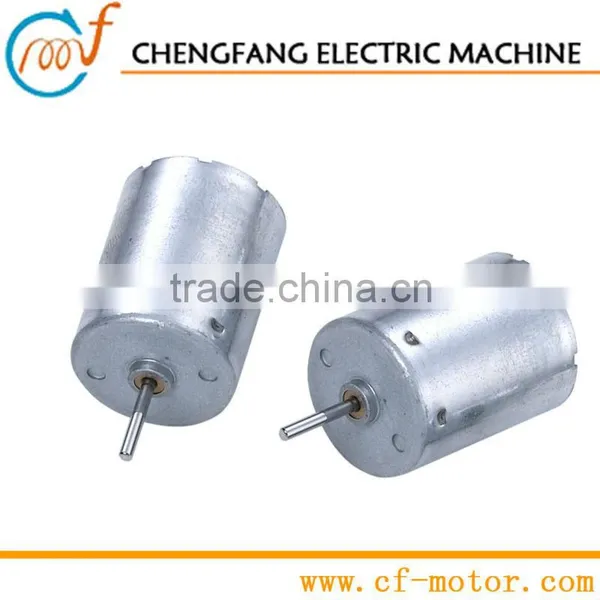

dc Motor for Electric Car | RC-370H

dc Motor for Electric Car | RC-370H thumbnail-1
dc Motor for Electric Car | RC-370H photo-1
US$ 0.5 - 0.9 MOQ: 10000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CF motor
Model Number:
RF/RC-370SH
Contact Supplier Request Quote Chat Now
Shenzhen Chengfang Electric Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CF motor
Model Number RF/RC-370SH
Usage Car, Fan, Home Appliance
Certification ROHS, UL
Type Micro Motor
Construction Permanent Magnet
Commutation Brush
Protect Feature Other
Speed(RPM) 3000~30000
Voltage(V) 1.0~24

Specifications

Aero model motor
Remote control plane motor
Radio control plane motor
Weight: 50g Approx

Aero model motor




Remote control plane motor
Radio control plane motor
Weight: 50g Approx



The models we list below are part of our existing designs.

We offer specific motor design for every customer.



RC-370H

Model No. Main Performance
Rated Voltage No Load At Maximum Efficiency At Stall
Speed Current Speed Current Torque Output Eff. Current Torque
  V r/min A r/min A g.cm W % A g.cm
RC-370SHV-08930 24.0 CONST 3,200 0.017 2,526 0.06 35.8 0.93 60.4 0.24 170
RC-370SH-5029 7.2 CONST 31,000 0.72 27,900 6.32 95.7 27.44 60.3 57 960
RC-370SH-15357 12.0 CONST 4,050 0.034 3,428 0.19 44.6 1.57 69.9 1.03 290
RC-370SH-4013 3.6 CONST 30,000 2.06 23,770 7.86 62.3 15.21 53.7 30 300
RC-370SH-3552 2.4 CONST 5,600 0.23 4,708 1.21 41.4 2 68.8 6.4 260
RF-370SHV-10400 8.0 CONST 2,400 0.015 1,969 0.07 16.2 0.33 60.7 0.31 90
RF-370SHV-16290 12.0 CONST 4,970 0.032 4,268 0.199 39.6 1.78 74.03 1.47 334.5
RF-370SH-13455 12.0 CONST 3,200 0.02 2,703 0.11 34.2 0.95 71.8 0.6 220

 Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in   1mm=0.039in   1g=0.035oz

dc motor for electric car | RC-370Hdc motor for electric car | RC-370H







  • Aero model motor
  • Remote control plane motor
  • Radio control plane motor
  • Dimension: dia. 24.4 x 30.8 L. shaft O.D. 2.0 mm
  • Basic Structure: SECD housing / SECC end cap / Strontium Ferrite Magnet
  • Application: Aeromodelling / Gear box
  • Weight: Approx. 50g


Basic Structure of Chengfang Motors

Customized Options

·2-pole stator
·Sr ferrite permanent magnet
·3, 5, 7, 8, 9, 12,16 slots armature
·Silicon-steel lamination with epoxy coating
·High-carbon steel shaft
·Cu-Ag alloy commutator
·Copper-graphite brushes
·Be-Cu leaf-brush commutating system
·SECD round / flat type housing
·SECD end cap / glassfiber reinforced PA6/6 end cap
·Cylinder / self-aligning Cu-Fe alloy sintered bushes
·155oC (class F) magnet wire











·Leadwires with connector / pins
·EMI suppression components
·PTC or thermostate protection
·Built-in AC/DC rectifier
·Built-in cooling fan
·Multiple output shaft
·diamond knurls, straight knurls, D-cut, stepped shaft
·Shaft-mounted gears, eccentric gears, belt pulleys
·Stainless steel (SS304, SS420) shaft
·Ball bearing
·Cage-brush commutating system
·Precious metal brush / commutator
·Hall encoder
·Low-cogging torque design
·180oC (class H), 200oC (class C) magnet wire
·-40oC ~ 220oC bearing lubricant
·Neodymium magnets
