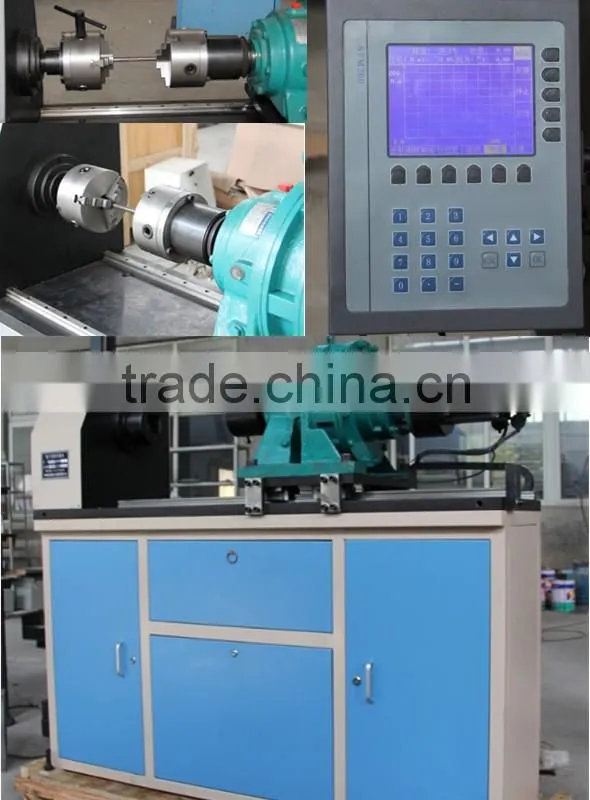

Help CenterNDS-1000N/m Electronic Torsion Test Equipment
Related Products
-
NDW Series Computerized Material Torsion Testing Machine From HensgrandUS$ 4,000 - 10,000MOQ: 1 Set -
Digital Display Steel Bar Torsion Testing MachineUS$ 2,000 - 4,000MOQ: 1 Set
-
EZ Series Digital Display Torsion Testing MachineUS$ 1,000 - 8,000MOQ: 1 Set
-
EZ Series Digital Display Torsion TesterUS$ 1,000 - 8,000MOQ: 1 Set
-
Metal Wire Fatigue TesterNegotiableMOQ: 1 Set
Hydrostatic testing machine/High Quality Torsion Testing Machine
1.Application:
Digital display Material Torsion Servo Testing Machine is designed for conducting torsion and twist tests on various metal wires, tubes and steel materials. Torque measurement is by torque transducer while angle of twist is measured by photoelectrical coder. Torque range can be adjusted and torque is applied to specimen by servo motor and cycloid speed reducer.
This tester is mainly applied in the research department, all kinds of institutions and industrial andmining enterprises material experiment of various materials used for measuring the mechanical properties by torsion.
2.Technical parameter:
Model |
NDS-500 |
NDS-1000 |
NDS-2000 |
NDS-3000 |
NDS-5000 |
|
Max dynamic test torque N/M |
500 |
1000 |
2000 |
3000 |
5000 |
|
Test level |
1 Class |
|||||
Test range |
2%-100%FS |
|||||
Torque force value relative error |
≤±1% |
|||||
Torque speed relative error |
≤±1% |
|||||
Force resolution |
1/50000 |
|||||
Torque Angle measuring relative errors |
≤±1% |
|||||
Torque angle resolution(°) |
0.05-999.9°/min |
|||||
Two chuck maximum distance |
300mm 550mm 600mm 650 mm |
|||||
Dimension |
1200*390*1169 1420*390*1169 1470*390*1200 1924*690*1512 |
|||||
Weight |
340 580 860 2150 |
|||||
Power supply |
0.5kW/AC220V±10% 1kW/AC220V±10% 1.5kW/AC220V±10% 5kW/AC220V±10% |
|||||
torsion testing machine

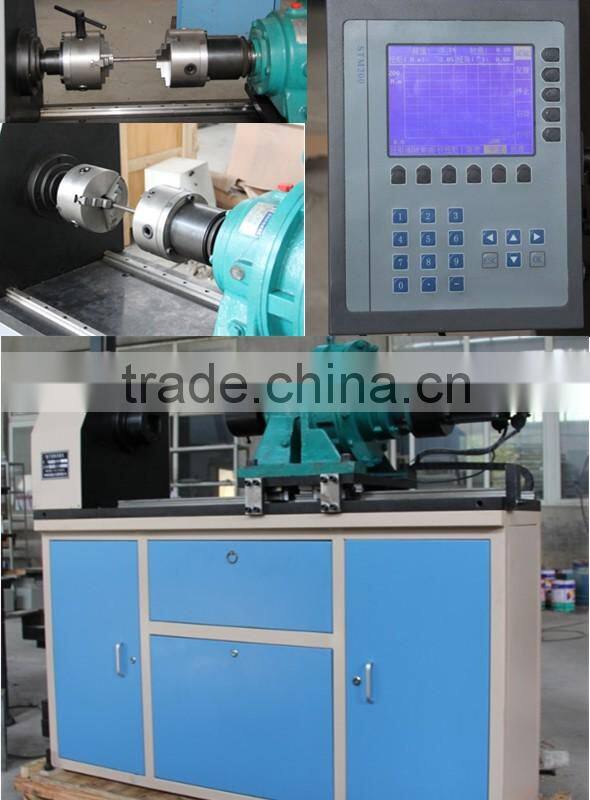

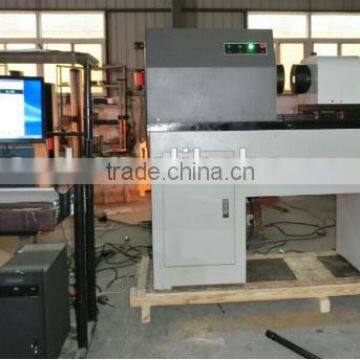

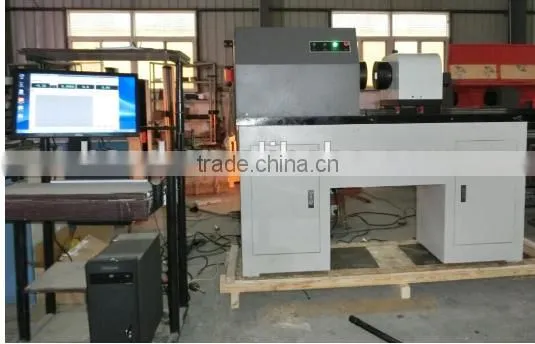

Detail Show:
Factory Show
Lifelong after-sales service & maintenance;
24 hours’ consult pre-sale on line or by Phone
Overseas training, installation is available.
CE Certifacate
About Us:
One of the leaders which manufacturing kinds of Universal Testing Machines .
Profesional technology and high quality !
The most comprehensive technical guidance and after-sales service !
The biggest manufacturer is in China, the top quality is in China, the best service is also in China !
Please believe Hengsgrand, believe China Power !
We sincerely look forward to cooperation with you !
Look forward to your email!
Don't hesitate :
Contacts: Jessica Jia
whatsapp: +8613225317062
Skype:jessica-hssd
