Specifications
1.usage:wire torsion testing2.LCD display
3.high testing accuracy
4.with CE

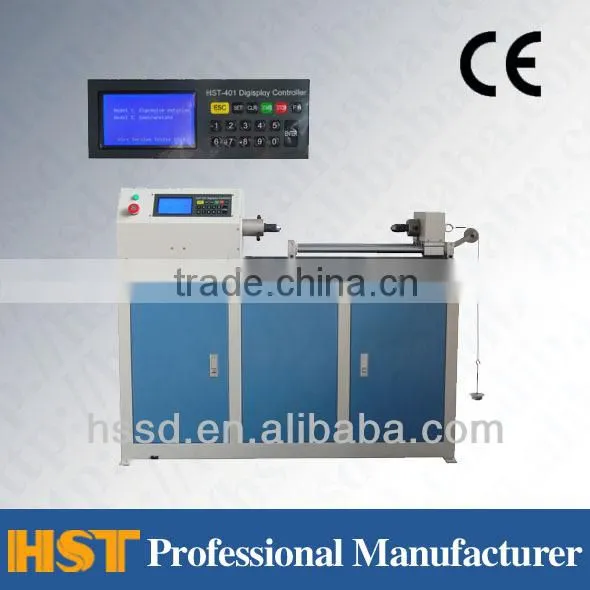

Digital Display Torsion Tester
Application:
Metal wire torsion testing machine applies to determine the ability of diameter(or feature size) of 0.1-20.0 mm wire for bearing plastic deformation in one-way or two-way reverse , display the surface and internal defects of the wire.
Specification:
Model |
EZ-1 |
EZ-3 |
EZ-10 |
EZ-20 |
Metal wire dia |
0.1-1mm |
1-3 mm |
1-10 mm |
1-20mm |
two chuck maximum distance |
500mm |
500mm |
570 |
500mm |
Torsion speed |
1.0-300mm/min(Arbitrary set) |
|||
Speed error |
less than ±10% |
|||
|
Minimum reading value of circle
|
0.1 |
|||
two chuck coaxality |
less than 0.4mm |
|||
|
Parallel degree
|
less than 0.2mm |
|||
|
Jaw hardness ( HRC ) |
HRC50-65 |
|||
Power supply |
AC220V±10% ,50HZ |
|||
Machine working noise |
less than 50 dB(A) |
less than 70 dB(A) |
||
Features:
1.Torsion in one direction, the sample rotate 360 degrees around their own axis to a direction as a reverse to
stipulate number or the sample is broken.
2.Torsion in two direction, the sample rotate 360 degrees around their own axis as a reverse to stipulate number,t
hen rotation frequency or the same sample split to the opposite direction.

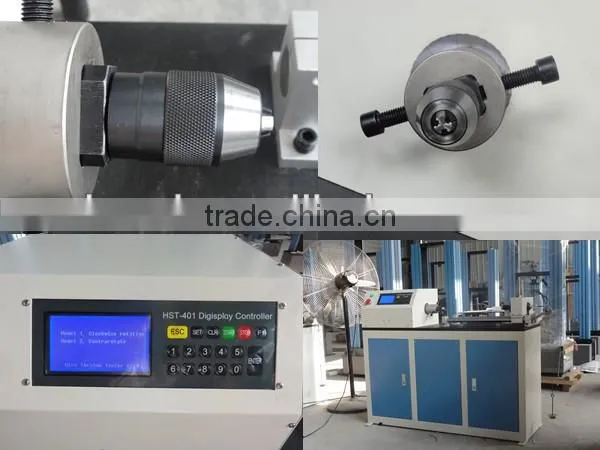

Digital Display Torsion Tester Pics:
CE Certificate:
