Digital Display Steel Bar Torsion Testing Machine

Digital Display Steel Bar Torsion Testing Machine photo-1
US$ 2,000 - 4,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
HS or OEM
Model Number:
EZ-10
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name HS or OEM
Model Number EZ-10
Power Electronic
Usage Torsion Tester

Specifications

Torsion Testing Machine
1. CE certificate, factory
2. LCD display
3. High testing accuracy
4. 0.2-20mm test range

Metal Wire Torsion Testing Machine



Application:

Wire torsion testing machine applies to determine the ability of diameter(or feature size) of 0.1-20.0 mm wire for bearing plastic deformation in oneway or twoway reverse, display the surface and internal defects of the wire .



Features:

1. Torsion in one direction, the sample rotate 360 degrees around their own axis to a direction as a reverse to stipulate number or the sample is broken.



2. Torsion in two direction, the sample rotate 360 degrees around their own axis as a reverse to stipulate number,then rotation frequency or the same sample split to the opposite direction.



Technical parameter:

Model

EZ-1

EZ-3

EZ-10

EZ-20

Metal wire dia

0.2-1mm

1-3 mm

1-10 mm

1-20mm

two chuck maximum distance

500mm

500mm

570mm

500mm

Torsion speed

           1.0-300mm/min(Arbitrary set)

Speed  error

                  less than ±10%

Minimum reading value of circle

                        0.1

two chuck comicality

                less than 0.4mm

Parallel degree

                less than 0.2mm

Jaw hardness ( HRC )

                 HRC55-64

Power supply

           AC220V±10% ,50HZ

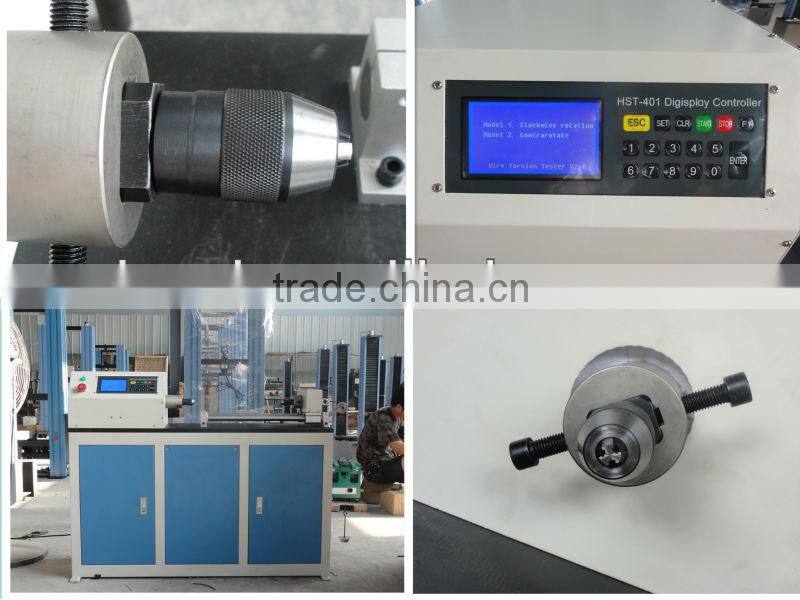

Wire Torsion Tester Detailed pictures:

Digital Display Steel Bar Torsion Testing Machine



CECertificate:

Digital Display Steel Bar Torsion Testing Machine
