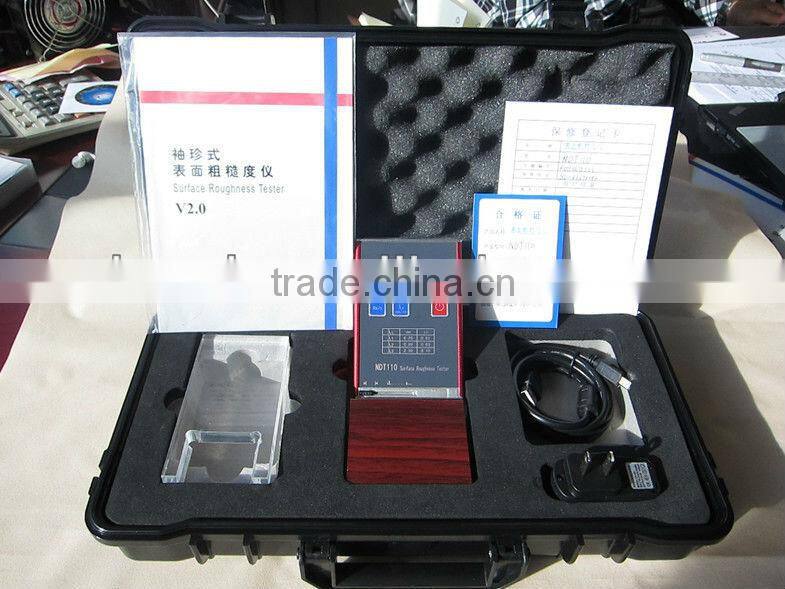

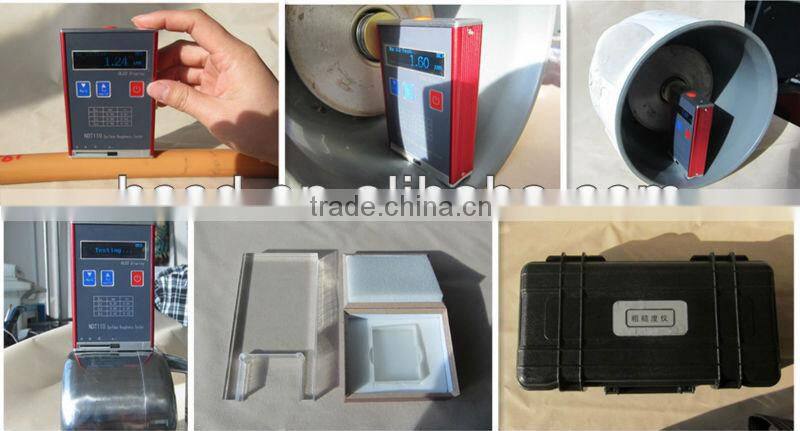

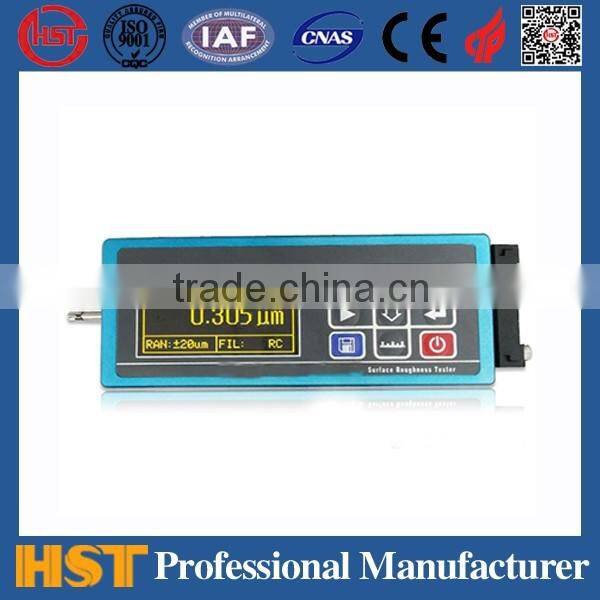

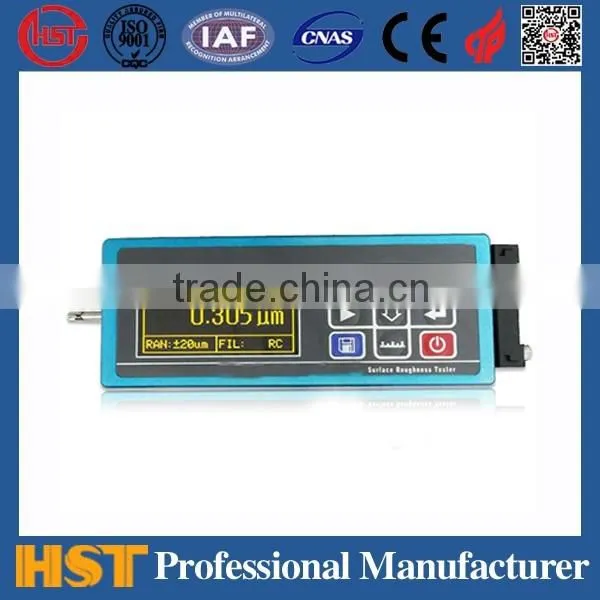

HSR210 Portable Digital Surface Roughness Gauge
Portable roughness measuring instruments is a portable stylus surface roughness shape measuring
instrument, applicable to the workshop testing station, laboratory, metrology room environmental detection.
Measurement of parameters in line with international standards of the United States, Germany, Japan and
is compatible with Britain and other industrial developed country standards. Measurement results can be
digital and graphic LCD display, also can be output to the printer .
Functions and features:
1.Electromechanical integration design, small volume, light weight, easy to use;
2.Using DSP chip to control and data processing, high speed, low power consumption;
3.Large range, parameters Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx;
4.128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;
5.Display information rich, intuitive, can display all the parameters and graphics;
6.Compatible with ISO, DIN, ANSI, JIS national standards;
7.Built-in lithium ion rechargeable battery and a charging control circuit, high capacity, no memory effect;
8.Residual quantity indicator icon, prompting the user to charge;
9.Display of the charging process instructions, the operator can understand the degree of charge
10.Working time more than 20 hours of continuous work
11.Large capacity data memory, can store 100 groups of original data and waveform.
12.Real-time clock settings and display, convenient data recording and storage
13.With automatic dormancy, automatic shutdown and power saving function
14.Reliable control motor to go dead circuit and software design
15.Measurement information display, menu prompt information, false information and switch machine
and other tips that information;
16.Full metal shell design, sturdy, compact, portable, high reliability.
17.Can be in English freely switch
18.Can be connected to a computer and printer;
19.Optional sensor surface, hole sensor, measuring platform, sensor, an extension rod and other accessories.
Technical parameters:
Item |
Description |
The maximum driving trip |
17.5mm/0.7inch |
Indicating error |
Not more than ± 10% |
Variation of indication |
Not more than 6% |
The measured profile |
Roughness, waviness, the original contour |
Parameter |
Ra(0.005μm ~ 16μm), Rz(0.02μm ~ 160μm), Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx. |
Filter |
RC,PCRC,Gauss,ISO13565 |
The sampling length L |
0.25mm,0.8mm,2.5mm,8mm |
Evaluation length L |
(1-5)l |
Internal storage capacity |
100 groups of original data |
External input / output interface |
USB |
Electric source |
Built-in rechargeable lithium ion battery or external power adapter |
Surface Roughness Gauge
Shipping & delivery:
It depends on your requirement. We offer as many shipping options as possible, we have cooperated with
some transpotation companies and shipping companies. If you need, we can transport products to our
country port or even shipping to your country port.
Machine' Packaging:
Simulation Aninmatronic Costom Triceratops are covered with air bubble firm before put them into the
wood en case, which not only has good shock absorption, impact resistance, heat sealing and also has
theadvantages of nontoxic, odorless, moisture corrosion, good transparency ect.
Surface Roughness Gauge
Surface Roughness Gauge
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting
experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale
service team will provide perfect technical support and help guests solve problems encountered while
using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
Product use training, each of our product provide video training to show you how to install & operate. We can
arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
