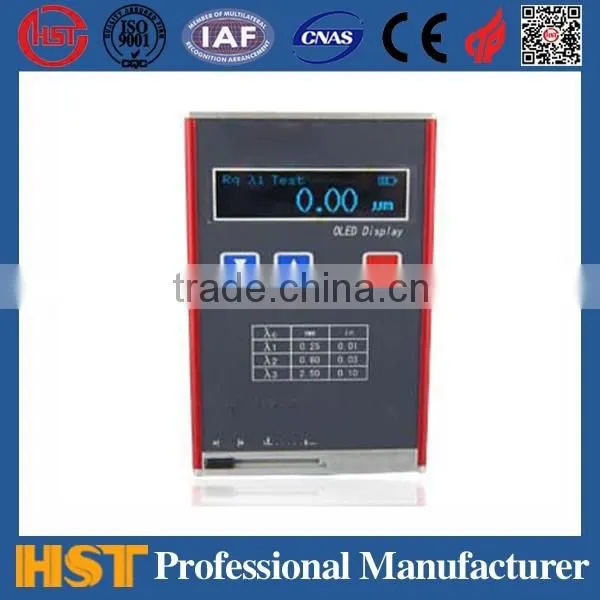

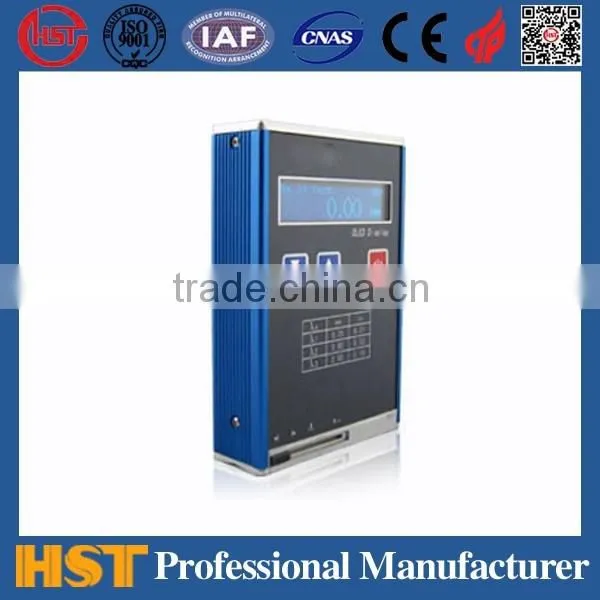

HSR100 Portable Digital Surface Roughness Gauge
The performance advantage
The roughness of metal and non-metallic surface
Pocket-size & economically price
Large measuring range suitable for most materials
Features external calibration at keyboard
Optimized electric circuit design with transducer structure-design,high integrate power, driver and display.
Select freely with Ra,Rz, Rq, Rt parameters.
It could test ex-circle, flat surface, conical surface and also test groove with length and width larger than 80*30mm.
Main Function:
Shape used to pull aluminum mold design, durable, anti-electromagnetic interference ability significantly, in line with the design of the new trend.
Using high-speed DSP processor for data processing and calculation, measurement and computation speed is greatly improved.
Liquid crystal display wide temperature using OLED color display, popular high brightness, no visual angle,, is suitable for various occasions.
The lithium ion rechargeable battery, can work for a long time, no memory effect, can while charging, charging time is short, long battery life.
Charging and communication using the common USB interface. Using a dedicated charger or computer USB port for charging, convenient and quick.
Dot matrix liquid crystal display, interface prompt information rich.
Real-time monitoring of lithium battery power and display, and to remind users to charge with charging progress indication.
Automatic shutdown function and low power design of software and hardware of the instrument with long working hours, suitable for field use.
Specification:
Testing parameters(µm ):Ra,Rz,Rq,Rt
Stroke length(mm):6
Sample length(mm):0.25 ,0.80 ,2.50
Evaluation length(mm):1.25 ,4.0
Measuring range(µm ): Ra: 0.05 ~ 10.0 Rz: 0.1 ~ 50
Error:±15%
Variability: <12%
Transducer contacting pin round diameter and angle:
Contacting pin round diameter:10 µm±1 µm
Battery:3.7V Li
Size:106 mm×70 mm×24 mm
Weight:200g
Sensor needle static force and its rate of change:
Stylus static force: ≤ 0.016N
Force measuring rate of change: ≤ 800N/m
Working conditions:
Temperature: -20℃~40℃
Relative humidity: < 90%
No shake and coercivity around
Surface Roughness Gauge
Shipping & delivery:
It depends on your requirement. We offer as many shipping options as possible, we have cooperated with
some transpotation companies and shipping companies. If you need, we can transport products to our
country port or even shipping to your country port.
Machine' Packaging:
Simulation Aninmatronic Costom Triceratops are covered with air bubble firm before put them into the
wood en case, which not only has good shock absorption, impact resistance, heat sealing and also has
theadvantages of nontoxic, odorless, moisture corrosion, good transparency ect.
Surface Roughness Gauge
Surface Roughness Gauge
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting
experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale
service team will provide perfect technical support and help guests solve problems encountered while
using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
Product use training, each of our product provide video training to show you how to install & operate. We can
arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
Surface Roughness Gauge
