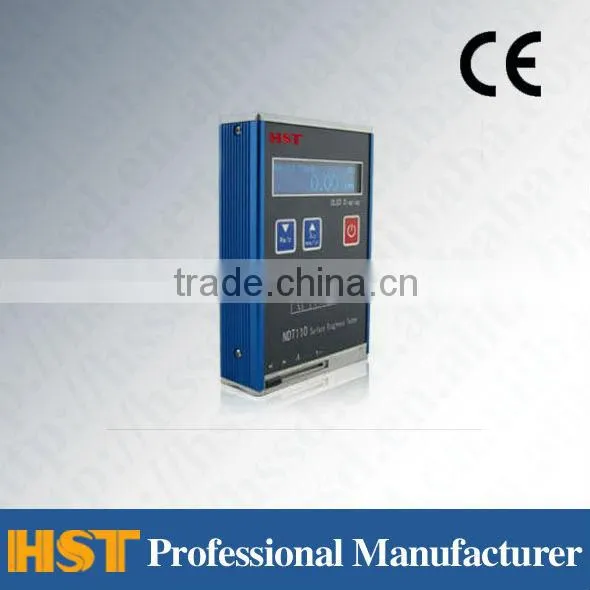

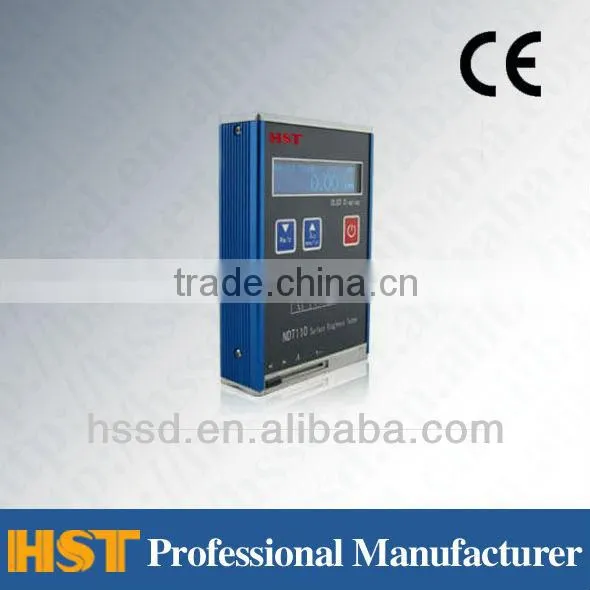

Help CenterDigital Surface Roughness Tester
Related Products
-
HS110 Portable Surface Roughness TesterUS$ 200 - 1,000MOQ: 1 Set -
HS110 Portable Surface Roughness Tester/Digital Surface Roughness TesterUS$ 200 - 1,000MOQ: 1 Set
-
TR200 Portable Surface Roughness Tester/High Accuracy Surface Roughness GaugeUS$ 600 - 2,000MOQ: 1 Set
-
HSR110 Digital Portable Surface Roughness TesterUS$ 900 - 2,500MOQ: 1 Set
-
Paper Surface Roughness TesterUS$ 99 - 699MOQ: 1 Set
Specifications
HSR100 Surface Roughness GaugeLarge measuring range to160 aam
ISO, DIN, ANSI, JIS standards
Parameters:Ra,Rz, Rq, Rt
Surface Roughness Gauge
The performance advantage
The roughness of metal and non-metallic surface
Pocket-size & economically price
Large measuring range suitable for most materials
Features external calibration at keyboard
Select freely with Ra,Rz parameters.
Optimized electric circuit design with transducer structuredesign,high integrate power, driver and display.
It could test ex-circle, flat surface, conical surface and also test groove with length and width larger than 80*30mm.
Main Function:
- Shape used to pull aluminum mold design, durable, anti-electromagnetic interference ability significantly, in line with the design of the new trend.
- Using high-speed DSP processor for data processing and calculation, measurement and computation speed is greatly improved.
- Liquid crystal display wide temperature using OLED color display, popular high brightness, no visual angle,, is suitable for various occasions.
- The lithium ion rechargeable battery, can work for a long time, no memory effect, can while charging, charging time is short, long battery life.
- Charging and communication using the common USB interface. Using a dedicated charger or computer USB port for charging, convenient and quick.
- Dot matrix liquid crystal display, interface prompt information rich
- Real-time monitoring of lithium battery power and display, and to remind users to charge with charging progress indication.
- Automatic shutdown function and low power design of software and hardware of the instrument with long working hours, suitable for field use.
Specification:
-Testing parameters(µm ): Ra,Rz, Rq, Rt
-Stroke length(mm):6
-Sample length(mm):0.25 ,0.80 ,2.50
-Evaluation length(mm):1.25 ,4.0 ,5.0
-Measuring range(µm ): Ra,Rq : 0.05 ~ 10.0 Rz,Rt: 0.1 ~ 50
-Error:±10%
-Variability: <12%
-Transducer contacting pin round diameter and angle:
-Contacting pin round diameter:10 µm±1 µm
-Battery:3.7V Li
-Size:106 mm×70 mm×24 mm
-Weight:200g
-Sensor needle static force and its rate of change: Stylus static force: ≤ 0.016N
Force measuring rate of change: ≤ 800N/m
Working conditions:
Temperature: -20°C~40°C
Relative humidity: < 90%
No shake and coercivity around
