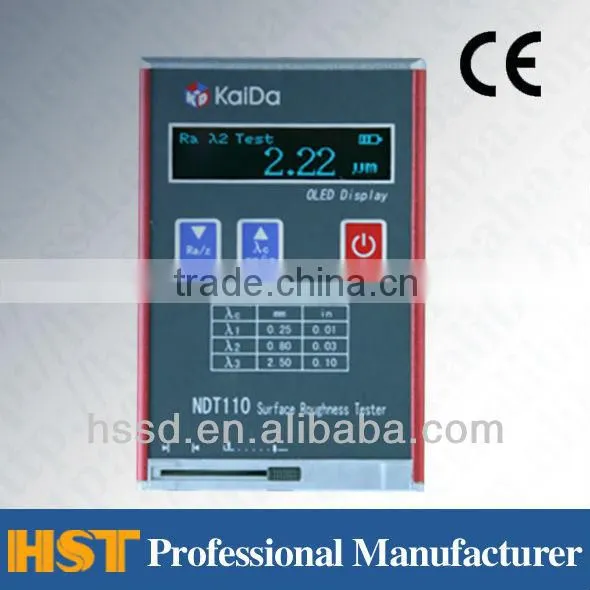

HS110 Portable Surface Roughness Tester

HS110 Portable Surface Roughness Tester thumbnail-1
HS110 Portable Surface Roughness Tester photo-1
US$ 200 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
HS or OEM
Model Number:
HS-110
Contact Supplier Request Quote Chat Now
Jinan Hensgrand Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name HS or OEM
Model Number HS-110

Specifications

1. Potable size, easy operation
2. Calibration sample piece use optical glass substrate
3. Dot Matrix LED display

HS110 Portable Surface Roughness Tester



Test range:

Can test plane surface, Cylindrical surface and conical surface with diameter ≥20mm, groove ≥80×30mm



Function:

Can choose four parameters:Ra,Rz,Rt,Rq;

Calibration sample piece use optical glass substrate

Calibration function, simple operation

Widely used for test metal and non metal processing surface

Adopting high speed DSP processor to get fast reaction

Can choose sampling length 0.25 ,0.80 ,2.50;

Dot Matrix LED display, high brightness, no perspective, wide temperature

Auto power off and low power consumption design

Two ways charging:Special Charger or USB port

Sensor probe with protective door;

Using aluminum mold design, good ability to resist electromagnetic interference



Main technical parameter:

Test parameter(μm)

Ra,Rz,Rq,Rt

Test range(μm)

Ra, Rq: 0.05 ~ 10.0             Rz, Rt: 0.1 ~ 50

sampling length(mm)

0.25 , 0.80 , 2.50

Evaluation length(mm)

1.25 , 4.0 , 5.0

Stroke length(mm)

6

indicating accuracy

0.01

indication error

±(7-10)%

Variability of indication

<12%

Transducer contacting pin round

 diameter and angle

Pin Tip arc radius:10 μm±1 μm

Transducer contacting pin static

 load and  change rate

contacting pin static load:≤ 0.016N

 load change rate :≤ 800N/m

Transducer Guide head pressure

≤ 0.5N

Battery

3.7V lithium ion battery

Overall size

106 mm×70 mm×24 mm

Weight

200g

Working environment

Temperature: -20°C~40C

Relative humidity:<  90%

No vibration, no corrosive medium around



Configuration

HS110 main unit

1 PC

Scribed line calibration sample piece

1 PC

Holder

1 PC

Charger

1 PC

Data line

1 PC

Instruction book

1 PC

Certificate of quality

1 PC
