Plastic drop ball impact test machine
Application:
Digital Display Charpy Impact Testing Machine is Single-chip microcomputer control, electric hammer block release, the impact energy display by the LCD.
Each set of sample can do one to ten data, test data can be deleted arbitrarily.
Automatically calculate the strength and average strength. Automatic print data report.
Scope of application: hard plastic, fiber reinforced composite materials, glass fiber reinforced
plastic, ceramic, asbestos etc. Nonmetal materials for impact test.
Standard:
JB/T8761,GB/T1043,ISO179 and so on.
Plastic impact testing machine specification:
Model |
XJJ-50D |
|||
Impact Energy |
7.5J |
15J |
25J |
50J |
|
Pendulum Torque (Standard Configuration Is One Pendulum) |
7.5 J Pendulum PL=3.866Nm |
15 J Pendulum PL=7.7324Nm |
25 J Pendulum PL=12.8888Nm |
50 J Pendulum PL=25.777Nm |
Dial Indexing Angle |
1/100 |
|||
Impact Speed |
3.8m/s |
|||
Pendulum Angle |
160° |
|||
|
Round Angle Of Impact Cutting Edge |
R=2±0.5mm |
|||
Round Angle Of The Jaw |
R=1±0.1mm |
|||
Impact Blade Angle |
30° |
|||
|
The Distance Between Pendulum Center And Sample Center |
380mm |
|||
Accuracy Of Energy |
0.001 J |
|||
Span Of Support |
40mm |
60mm |
70mm |
95mm |
Energy Loss |
0.5% |
|||
Dimension |
550mm×350mm×850mm |
|||
Weight |
160 kg |
|||
Sample Type |
Length C |
Width B |
Thickness D |
Supporting Space |
I |
80 |
10 |
4 |
10 |
II |
50 |
6 |
4 |
60 |
III |
120 |
15 |
10 |
70 |
IV |
125 |
13 |
13 |
95 |

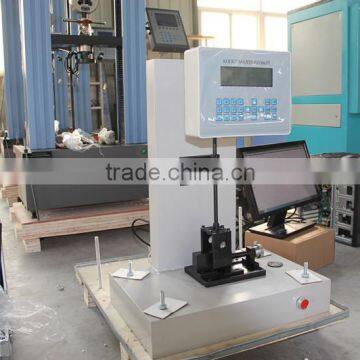

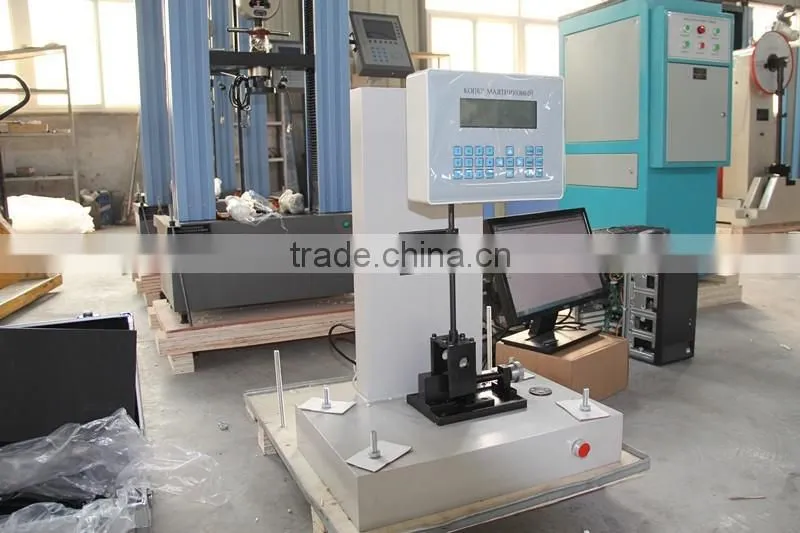

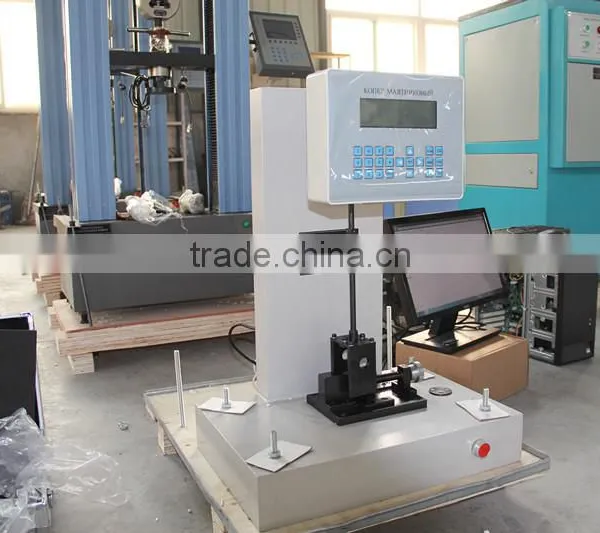

Plastic charpy impact testing machine photos:

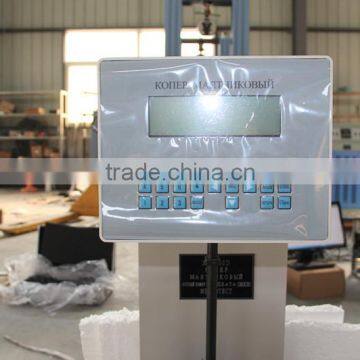

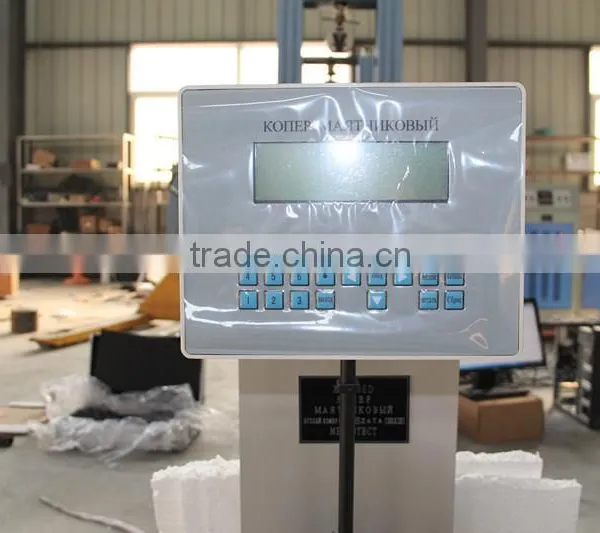

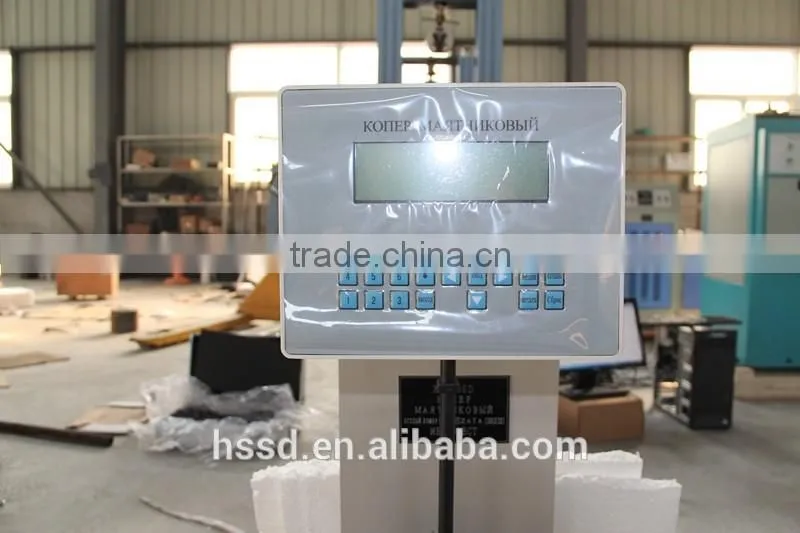

Digital English Panel:
CE certificate:
Dear customer, if you need our testing machines, please contact with us without any hesitate ! We will supply our best service for you !
-------------
Adela Wang
Jinan Hensgrand Instrument Co.,Ltd.
Tel/WhatsApp: +86-18660396497
Fax:+86-531-81901323
TradeManager: cn1519065146tuuj
Dear customer, if you still insterested in below products, please "click " picture directly for details. Also can send us inquiry directly !

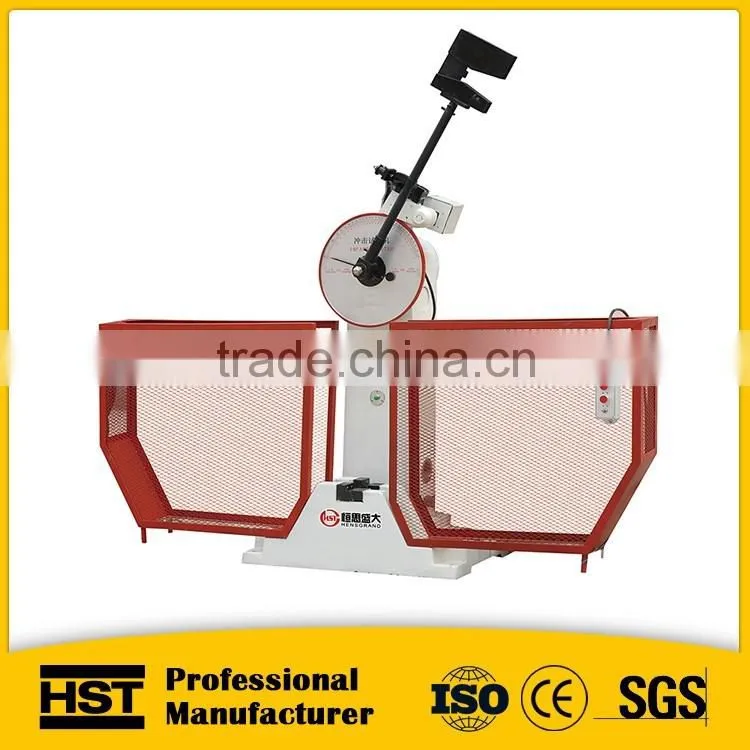

Metal impact tester
