Home > Instruments & Meters > Test Instrument > Test Machine > XJJ-5D LCD Charpy & Izod Combined Impact Testing Machine

XJJ-5D LCD Charpy & Izod Combined Impact Testing Machine

XJJ-5D LCD Charpy & Izod Combined Impact Testing Machine photo-1
XJJ-5D LCD Charpy & Izod Combined Impact Testing Machine photo-2
XJJ-5D LCD Charpy & Izod Combined Impact Testing Machine photo-3
XJJ-5D LCD Charpy & Izod Combined Impact Testing Machine photo-4
XJJ-5D LCD Charpy & Izod Combined Impact Testing Machine photo-5
XJJ-5D LCD Charpy & Izod Combined Impact Testing Machine photo-6
US$ 560 - 2,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
HST
Model Number:
XJJ-5D
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name HST
Model Number XJJ-5D
Power Electronic
Usage Impact Testing Machine

XJJ-5D LCD Charpy & Izod combined impact testing machine

XJJ-5D LCD Charpy & Izod combined impact testing machine



Product Application

 Application:

XJJ-5D Digital Display Charpy Impact Testing Machine is Single-chip microcomputer control, electric hammer block release, the impact energy display by the LCD.

Each set of sample can do one to ten data, test data can be deleted arbitrarily.

Automatically calculate the strength and average strength. Automatic print data report.

Scope of application: hard plastic, fiber reinforced composite materials, glass fiber reinforced

plastic, ceramic, asbestos etc. Nonmetal materials for impact test.

2.Standard:

JB/T8761,GB/T1043,ISO179 and so on.

Specification Data

Plastic impact testing machine specification:

Model

XJJ-5D

Impact Energy

1 J

2 J

4 J

5 J

Pendulum Torque  (Standard

Configuration Is One Pendulum)

1J Pendulum

PL=0.5155Nm

2J Pendulum

PL=1.0311Nm

4J Pendulum

PL=2.0622Nm

5J Pendulum

 PL=2.5777Nm

Impact Speed

2.9m/s

Pendulum Angle

160°

The Distance Between

Pendulum Center And

Sample Center

221mm

Round Angle Of The Jaw

R=1±0.1mm

Round Angle Of Impact

Cutting Edge

R=2±0.5mm

Impact Blade Angle

30°

Accuracy Of Energy

0.0001 J

Span Of Support

40mm

60mm

70mm

95mm



Machine parts photo

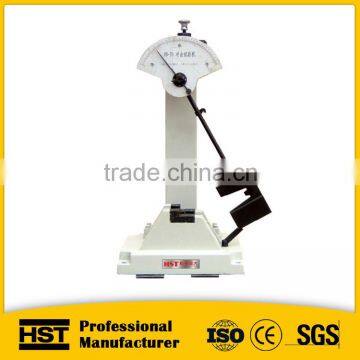

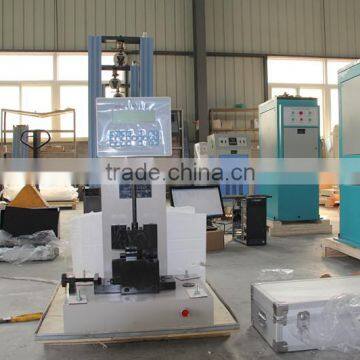

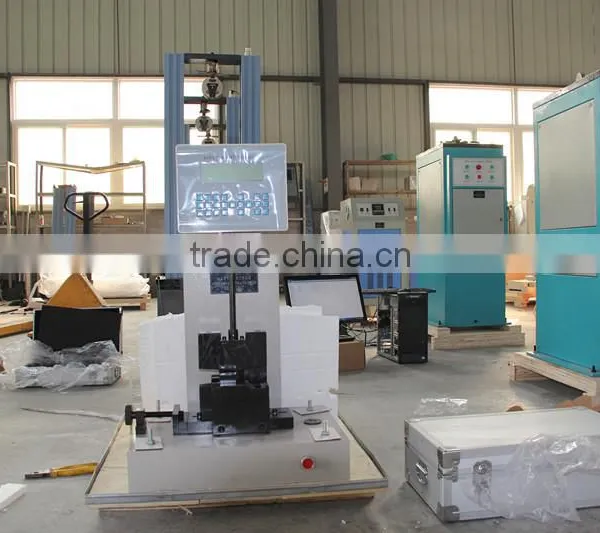

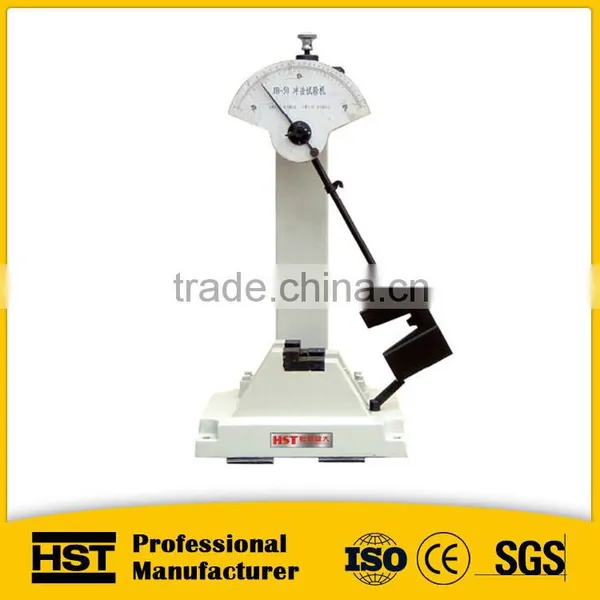

 Plastic charpy impact testing machine photos:XJJ-5D LCD Charpy & Izod combined impact testing machine

Digital English Panel:

XJJ-5D LCD Charpy & Izod combined impact testing machine



Certifications

 CE certificate:

XJJ-5D LCD Charpy & Izod combined impact testing machine
