JB-500B 500J Semi Automatic Dial Display Charpy Impact Tester
1. Application
JB type charpy impact testing machine /impact tester is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load Pendulum raising, impacting, pendulum down controlled by electric.
2. Standards
ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007
3. Main Technical Specifications
Model |
JB-300B |
JB-500B |
JB-800B |
||
impact energy |
150/300J |
250/500J |
500/800J |
||
|
The distance between the pendulum shaft and impact point |
750mm |
800mm |
800mm |
||
Impact speed |
5.2m/s |
5.4 m/s |
5.9m/s |
||
Pre-rising angle of the pendulum |
150° |
||||
Specimen bearer span |
40+0.2mm |
||||
Round angle of the jaw |
R1-1.5mm |
||||
Round angle of impact edge |
R2-2.5mm,R8±0.05mm |
||||
Angle accuracy |
0.1° |
||||
Standard specimen dimension |
10mm×10(7.5/5)mm×55mm |
||||
Power supply |
3phs, 380V, 50Hz Or 220V,60Hz |
||||
Dimensions (mm) |
2124 x 600 x 1340 |
2200 ×650 ×1960 |
2450 x 1200 x 2455
|
||
Net Weight (kg) |
450 |
650 |
2300 |
||
4. Features:
4.1 The principle machine of the testing machine has single supporting column structure, cantilever type pendulum hanging mode; the pendulum body is U-shaped
4.2 The impact cutter is installed and fixed by screws and is convenient and easy to be replaced;
4.3 Safety guard pin is arranged on the principle machine which is also provided with safety guard net

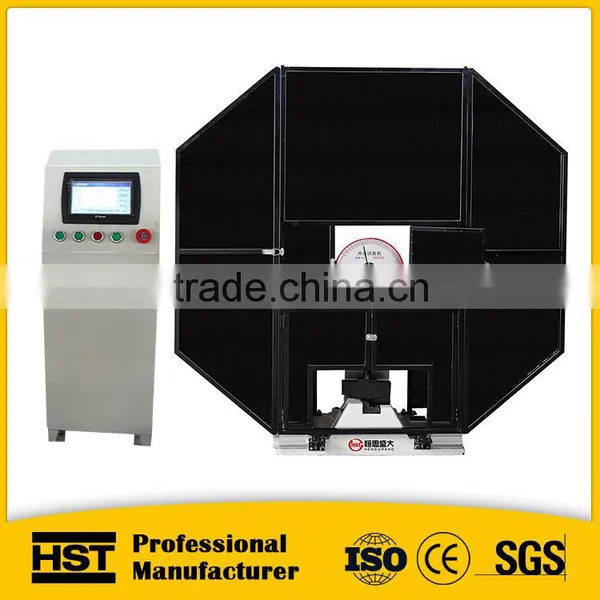

JB-B 300J 500J Charpy Impact Test Equipment Price

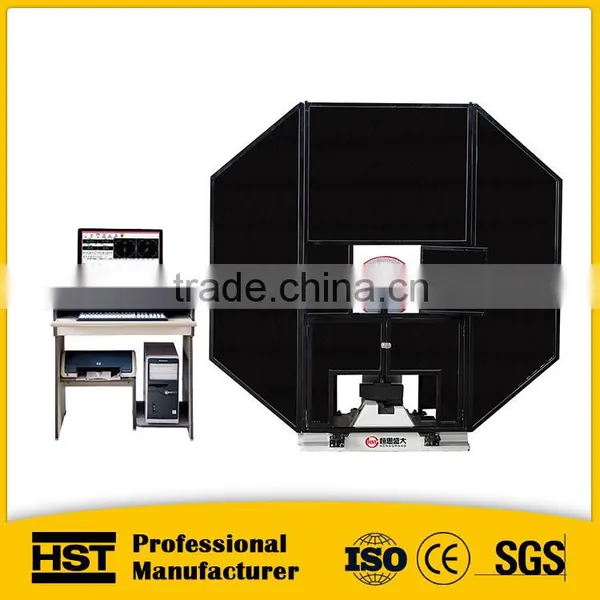

Charpy Impact Testing Machine

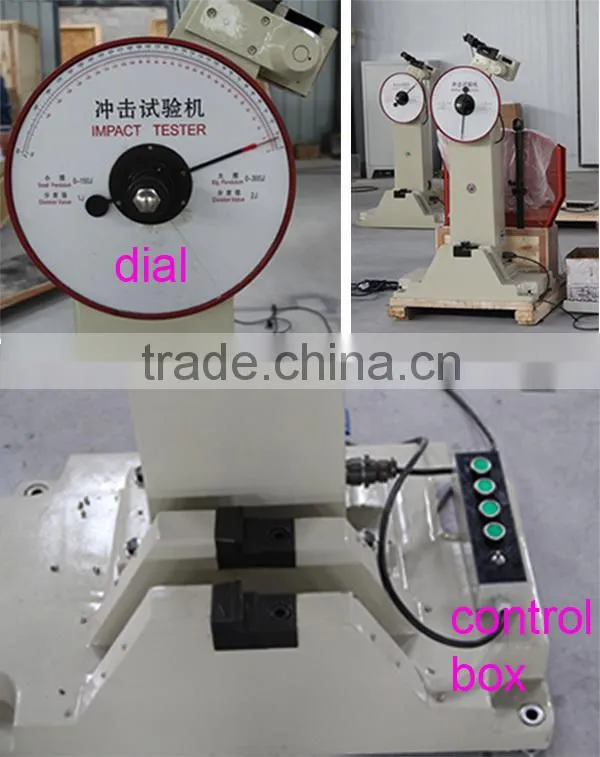

Detail Show

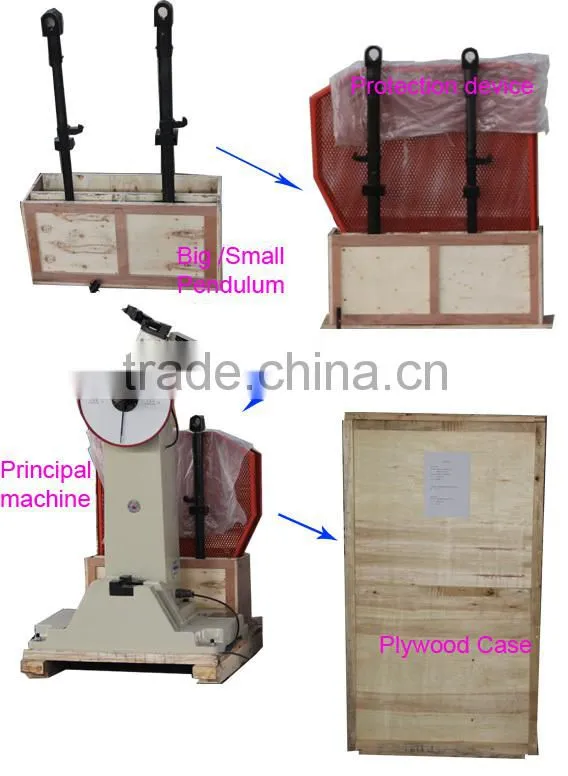

Packaging

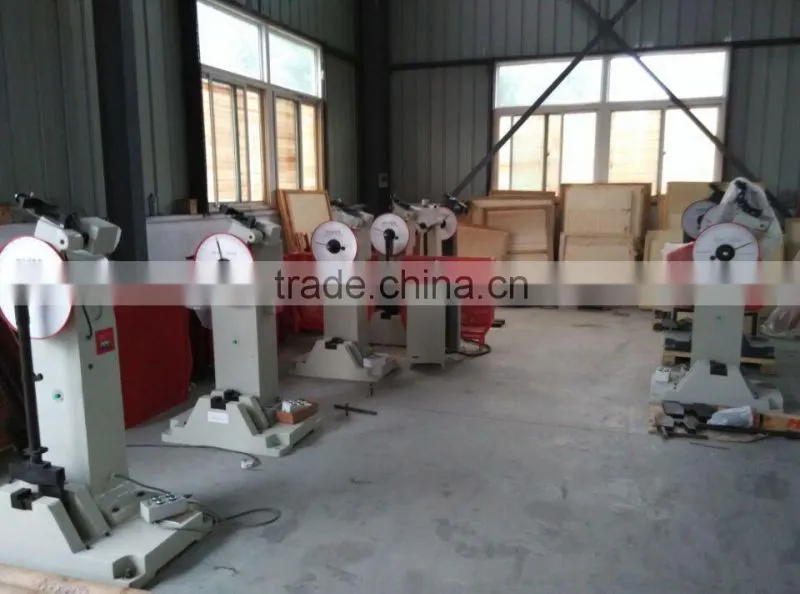

Impact Testing Machine

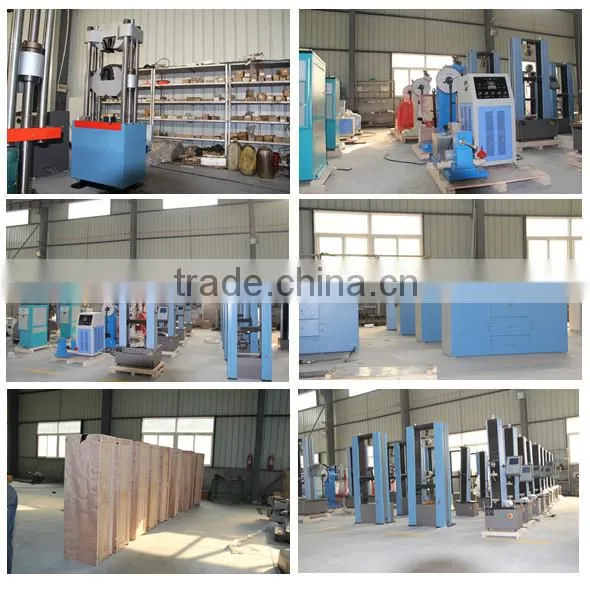

Factory Show

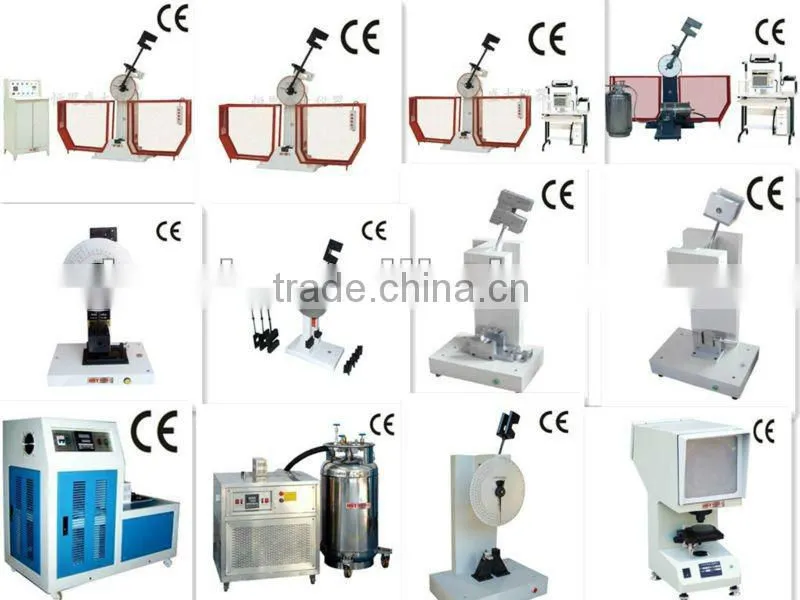

Impact Testing Machine have been given CE Certificate
We sincerely welcome friends at home and abroad to cooperate with us.
We would like to offer you our best products and service.
