Industrial Water Purification System
Features:

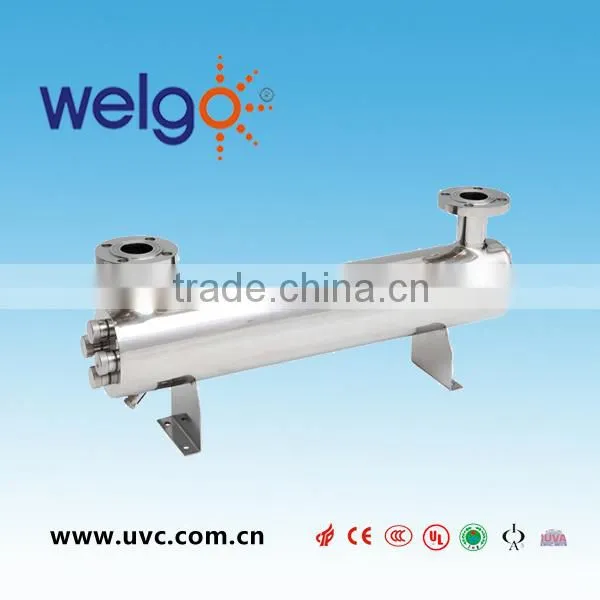

ML series UV sterilizer is the one with multiple lamps for large flow rate.
1. Chamber: Polished 304 stainless steel, S.S 316 on request
2. UV lamp: Low pressure amalgam high intensity UV lamp. Preheating improves the lamp lifetime. 254nm wavelength, 12000 hours service life.
3. Quartz Sleeve: High transmittance more than 92%, high UV output.
4. Electrical Cabinet:
Housing material: 304 stainless steel;
with voltmeter, status indicating light, audible and visual alarm, ballast (with UL certificate), UV Intensity Monitoring System and time accumulator monitor as optional.
5. Munual cleaning, pneumatic cleaning and electric cleaning as optional.
6. High Bactericidal Efficiency: up to 99%
7. Natural way disinfection, no additional harmful chemicals
Technical Parameters | |
Model |
WGUV-110T320-5U |
Flow rate @30mj/cm2 |
110m3/hr |
Lamp |
320W*5pcs |
Lamp Life |
9000-12000 hours (approx. 1 year) |
Total power |
1650W |
Inlet / Outlet |
DN150 |
Dimension(mm) |
1660*273*463 |
Power supply |
220V/50Hz, 110V/60Hz |
Operating pressure |
100PSI |
Max. working pressure |
125PSI |
Operating temperature |
Up to 45 deg C |
Chamber material |
304 stainless steel(316L or PVC optional) |
Cleaning system |
Optional Manual or auto- cleaning system |
UV intensity monitor |
optional |
Why choose us?
** Founded in 2001
** 15 year experience of R&D, manufacturing and sales of UV sterilizer
** Obtain many certificates such as ISO9001:2008, CE, UL, SASO,C-TICK, ROHS, etc

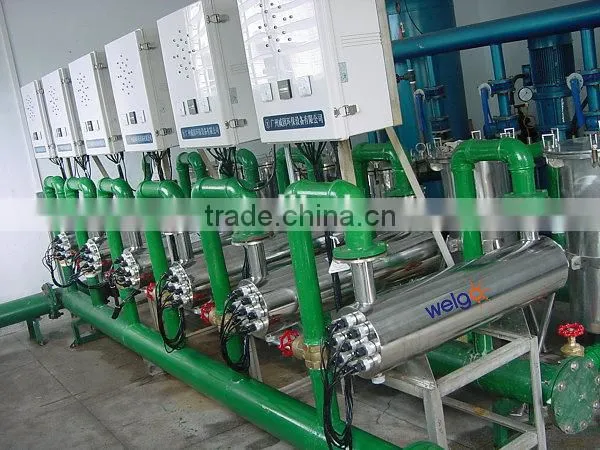

** Thousands of installation in Hotels, swimming pools, drinking water, aquariums, food industrial, beverage industrial, municipal wastewater treatment, aquaculture, etcboth in domestic and overseas market.
Our own factory! 15 years experience of R&D and manufacturing of Ultraviolet Sterilizers
Obtain many certificates such as ISO9001:2008, CE, UL, SASO,C-TICK, ROHS, etc
Aquatech Amsterdam Show

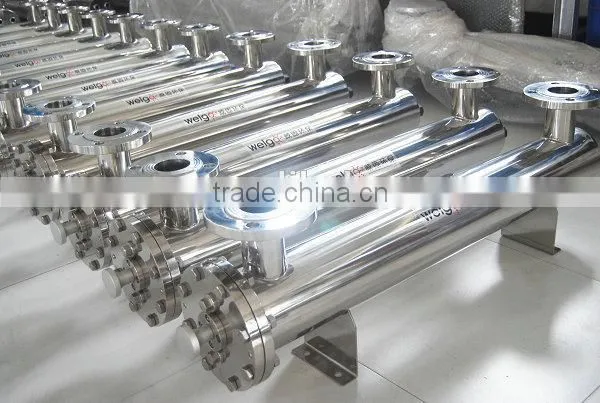

ML Series UV Sterilizer(with manual wiper system)
Professional Packing & Shipping
For bottled water disinfection
