High Quality 100m wireless hdmi extender,wireless hdmi video transmitter, wireless hdmi 1080p
Model No.: LM-WHD100
Product Name: High Quality 100m wireless hdmi extender,wireless hdmi video transmitter, wireless hdmi 1080p
Features:
1. 5GHz Wireless HD video transmission;
2. Support 3D format;
3. Supported resolutions-up to 1080p/60Hz( included);
4. HDMI input/output, support devices with HDMI;
5. Very low latency: <30ms;
6. Effective range: 100m/330ft (Line of sight);
7. Hot-shoe installation with 1/4 screw nut;
8. LCD screen displays the status of device;
9. Plug & Play - no software is required.
Specification:
ITEM |
Details |
Frequency |
5 GHz |
Video Input/Output |
HDMI |
Bandwidth |
40MHz |
Video |
480p,576p,1080i,1080p |
Audio |
PCM,DTS-HD,Dobly TrueHD |
Transmission range |
100m/330ft |
Installation |
Hot-shoe, 1/4 inch screw nut |
Storage Temperature |
-40~80℃ |
Transmitter | |
Antenna |
External Antenna X 2pcs |
Power Supply |
DC 6V~17V; Canon LP-E6+, etc |
Power Consumption |
5.5W |
Working Temperature |
By battery 0 ~40℃; By DC -10~60℃ |
Transmission Power |
14dBm |
Receiver | |
Antenna |
Built-in antenna |
Power Supply |
DC 6V~17V; SONY NP-F750, etc |
Power Consumption |
5 W |
Working Temperature |
By battery 0 ~40℃; By DC -10~40℃ |
Transmission Power |
15dBm |
Panel Description:
Connection Diagram:

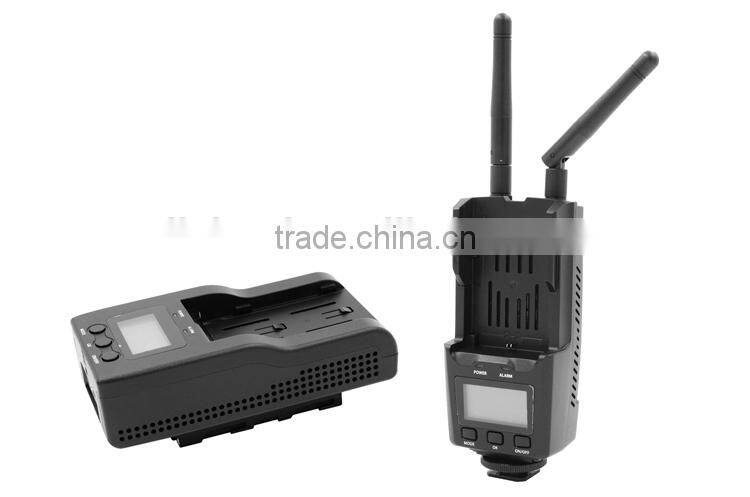

Product Pictures:
Packing Contents: High Quality 100m wireless hdmi extender,wireless hdmi video transmitter, wireless hdmi 1080p
1. Main Unit. HDMI Wireless Video Transmitter Receiver
2. 1pcs Standard HDMI Cable
3. 1pcs Standard HDMI to Mini HDMI Cable
4. 2pcs Antenna
5. 2pcs DC 12V 1A Power Supply
High Quality 100m wireless hdmi extender,wireless hdmi video transmitter, wireless hdmi 1080p
