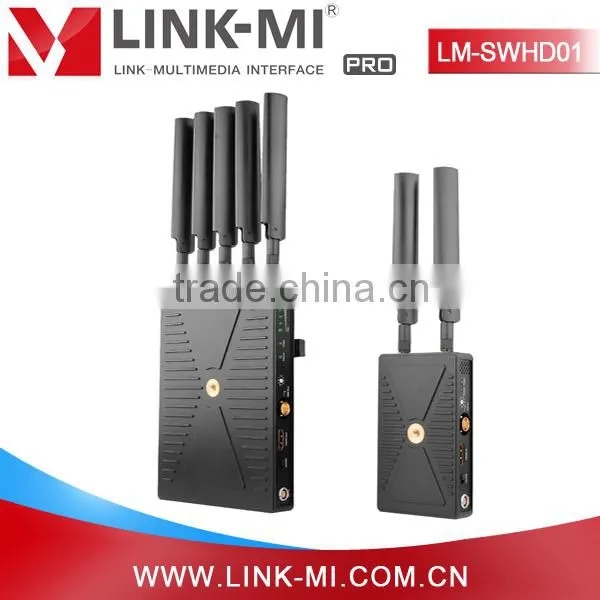

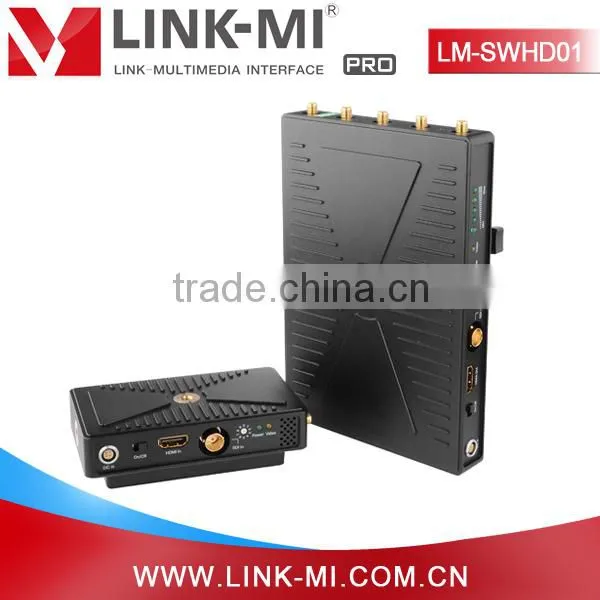

LINK-MI Pro LM-SWHD01 Long Range Wireless Video Transmitter and Receiver 300m With HDMI & SDI In and Out
Model No.: LM-SWHD01
Product Type: Wireless Video Transmitter and Receiver
Keyword: Wireless Video Transmitter and Receiver
Wireless Video Transmitter and Receiver
Model No.: LM-SWHD01
Introduction:
The Long Range Wireless Video Transmitter and Receiver utilize today’s most advanced wireless video transmission technology, which can realize the broadcast-class and uncompressed 3G SDI/HDMI HD video signal transmitted with no compression and zero delay.
The long range wireless video transmitter an receiver includes one transmitter and one receiver, where the transmitter provides a 3G/HD SDI input and a HDMI input, and the receiver also provides a 3G/HD SDI output and a HDMI output.
The wireless video transmitter and receiver has 2 stick antennas in transmitter side, and 5 stick antennas in receiver side, and it can work in 5.1-5.9GHz frequency band and be flexibly software configured to licensed or ISM band of global different regions, as well as the side panel of both transmitter and receiver have been installed a frequency select knob, which provides maximum 10 workable frequency channels, and supports maximum 4 sets working simultaneously.
The wireless video transmitter and receiver can accept wide range DC power input, which is suitable for many kinds of camera battery model. The long range wireless video transmitter and receiver also can sustain ±8 kV ESD (HBM, contact discharge), the industry class metal case and professional heat design would guarantee most robust reliability.
Product Description:
Features:
1. HDMI 1.3 spec supports
2. HDMI and 3G SDI input and output
3. Highest resolution 1080p@60Hz, no delay and no compression
4. Support audio formats include Dolby True HD, DTS-master, etc.
5. AES-128 encryption with air interface HD video data stream
6. Support point to point, and point to multi points network topology
7. Each RX paired to the unique TX in factory
8. 5GHz ISM frequency band, maximum 10 frequency channels selected by user knob, coexist with WIFI.
9. Maximum transmission distance 300m
10. Signal indicators for wireless power status, Video status and receiver RSSI
11. Wide range power voltage input, adapt most kinds of camera battery

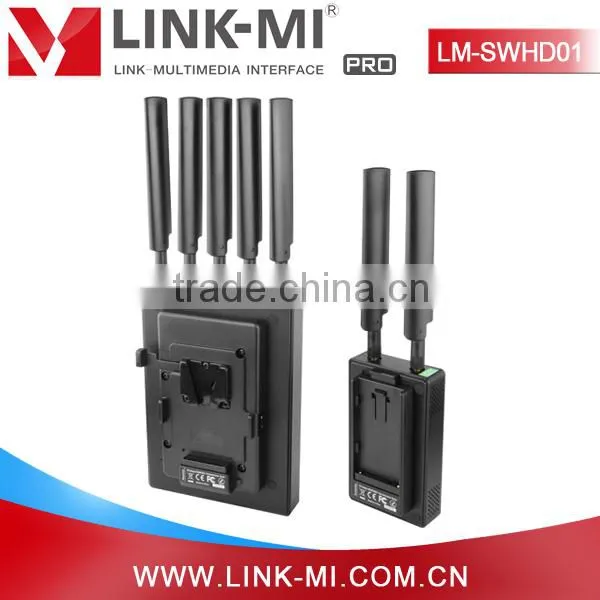

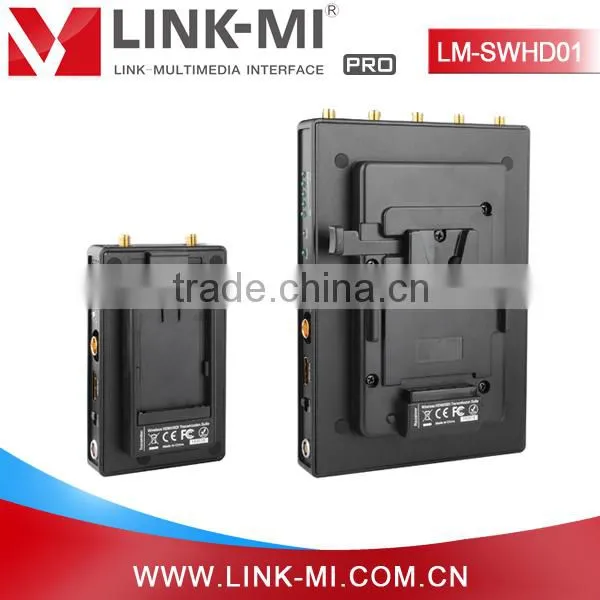

12. V-Lock Battery Plate on Receiver and Optional Sony F970 battery buckle on transmitter, convenient for field battery install and replacement
13. Any input and output ports with ±8 kV ESD protection level (HBM, contact discharge)
14. Industrial metal case, stable and reliable
Specifications:
|
Transmitter |
Receiver |
Interface |
SDI Input(BNC Female); HDMI Input(Type A female); 2 Antenna port(2 SMA male); DC input (4 pin LEMO female) |
SDI Output(BNC Female); HDMI Output(Type A female); 5 Antenna port(SMA male); DC input (4 pin LEMO female) |
Supply voltage range |
6.5-16.8V DC |
|
Power consumption |
<6.5W |
< 6 W |
Size |
(L x W x H): 120x 70 x 25mm, don’t include antennas |
(L x W x H): 160x 110 x 25mm, don’t include antennas |
Mass |
380g |
540g |
Video Format |
HDMI: 525i, 625i, 720p 50/59.94/60,1080i 50/59.94/60,1080p 23.98/24/25/29.9/30/50/59.94/60; HDMI Type A SDI: 3G, HD, and SD-SDI (auto-selected), SMPTE-259/274/292/296/372/424/425;1x BNC |
|
Audio Format |
SDI embedded 4 channel 24 bit/48KHz |
|
Signal Indicator |
POWER-Green; VIDEO-Yellow |
POWER-Green; Wireless RSSI-Green(5 LEDs); VIDEO-Yellow |
Frequency Band |
5.1-5.9GHz, configurable with China, North American, Europe, etc |
|
Modulation Mode |
OFDM 16QAM |
|
Transmission Power |
Maximum 21dBm |
/ |
Receiver Sensitivity |
/ |
-75dBm |
Occupied Bandwidth |
20/40MHz |
|
Temperature Range |
0 ~ 40°C (operating condition); -20~60°C(Storage) |
|
Compliance |
FCC; CE |
|
Panel Description:
Installation:
Connection and Operation:

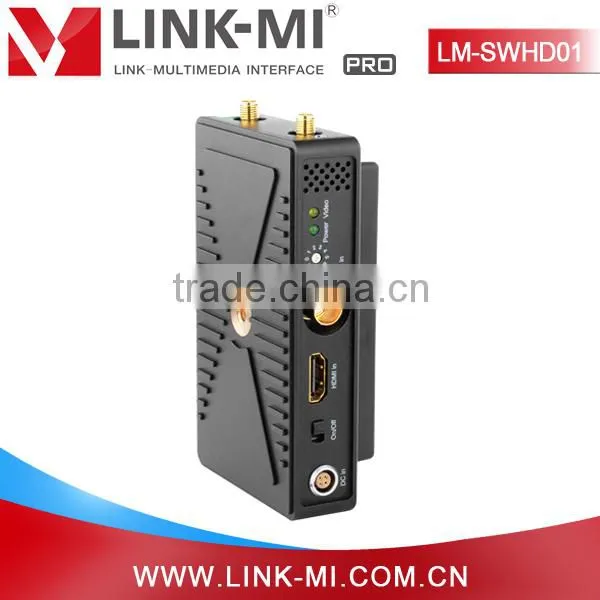

A. Transmitter side

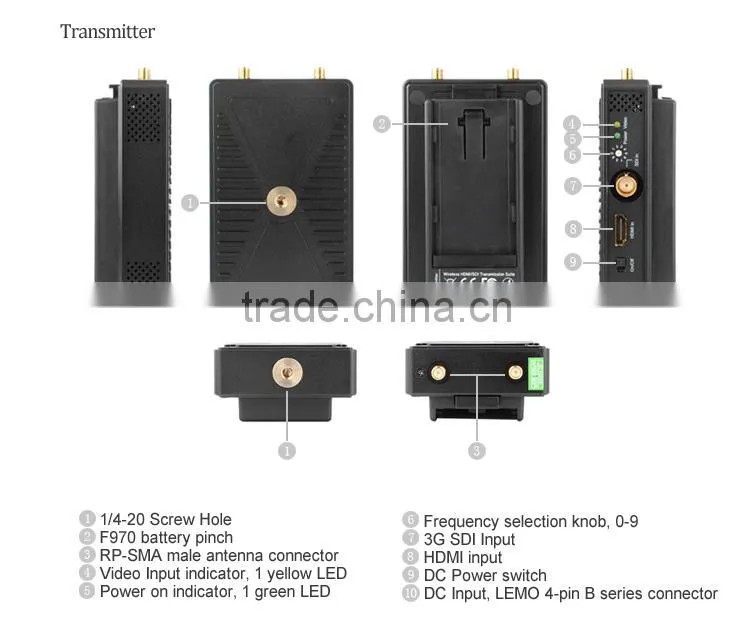

a) Install 2 Omni-directional and high efficiency antennas to Transmitter’s SMA male antenna connectors.

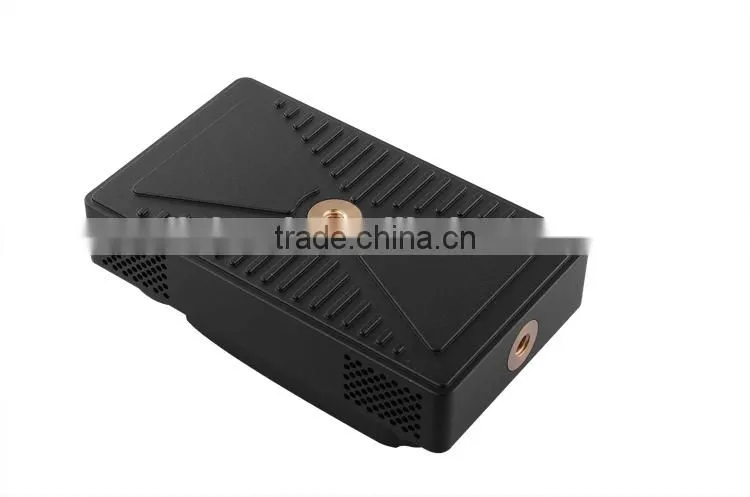

b) There are 3 1/4-20 screw nuts in transmitter metal case, which are located on surface, rear and bottom. So the user can utilize a 1/4 screw to ISO518 hot-shoe converter fix the transmitter on camera.
c) Install Battery into battery buckle if your product model includes battery buckle option; please note the battery model must match the battery buckle type.
d) The user can also utilize a subsidiary LEMO 4 pin male to D-Type receptacle power cable to get power input from an outside power source.
e) All TX installation guidelines see below figure.
B. Receiver side

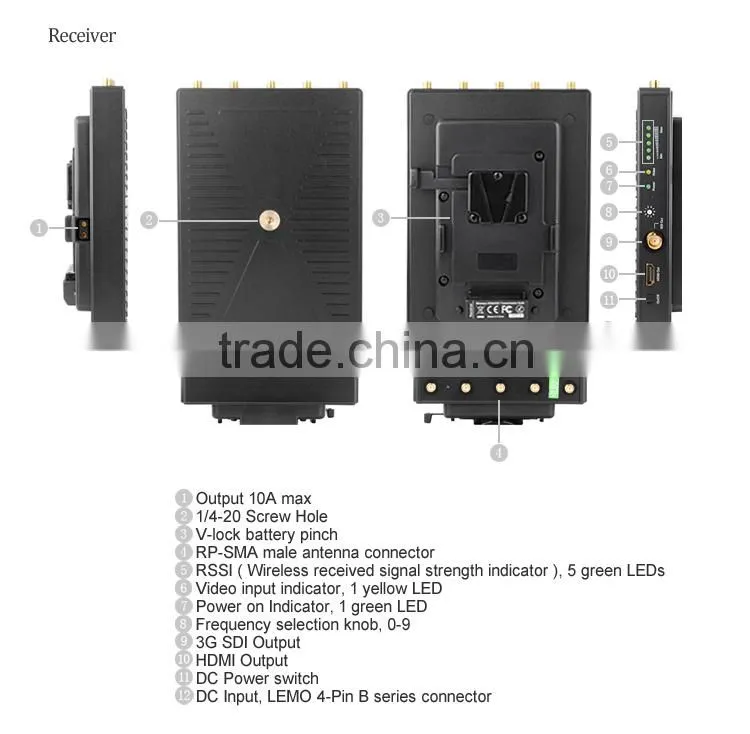

a) Install 5 pcs Omni-directional and high efficiency antennas to receiver’s SMA male antenna connectors.
b) There are a 1/4-20 screw nut in the surface side of receiver. The user can utilize a 1/4 screw fix the subsidiary metal hook with the receiver.
c) Install Battery into battery buckle if your product model includes the option of battery buckles; please note the battery model must match the battery buckle type.
d) The user can also utilize a subsidiary LEMO 4 pin-male to D-Type receptacle power cable to get power input from an outside power source.
e) All RX installation guidelines see below figure.
C. Typical connection instruction

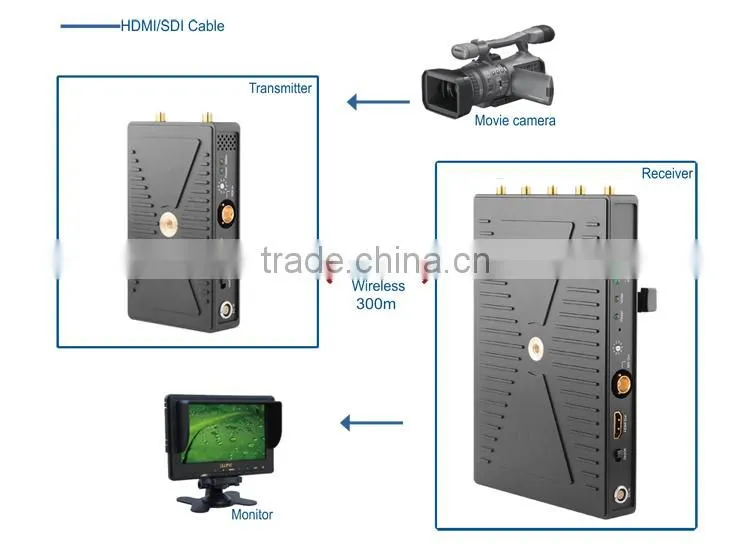

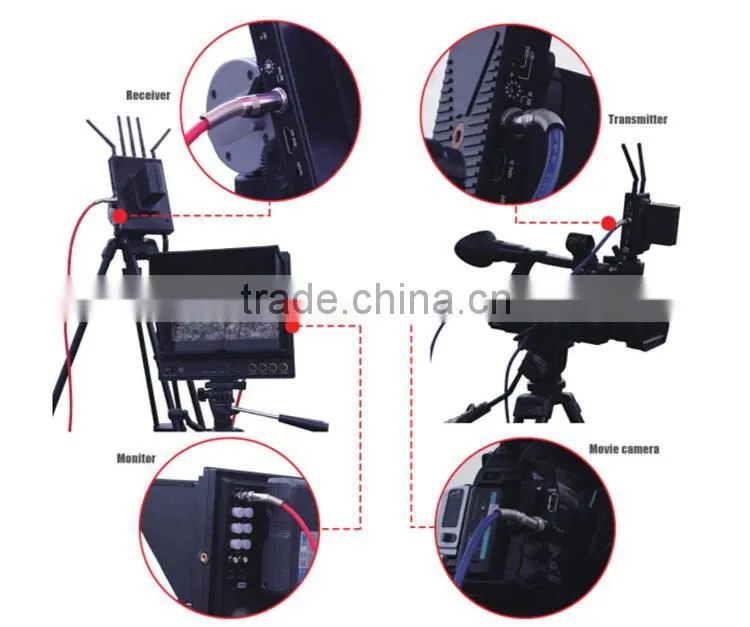

Connect camera SDI or HDMI output to transmitter SDI or HDMI input port, and the transmitter can fixed in hot-shoe port of the camera. Connect HDMI or SDI output port of the receiver to SDI or HDMI input port of the HD monitor. Make sure all antennas and batteries are equipped normally. See below figure.
Connection Diagram:
Packing Information:
1. 1 unit Wireless Video transmitter
2. 1 unit Wireless Video receiver
3. 7pcs 5GHz Omni-directional and high efficiency antennas (SMA female)

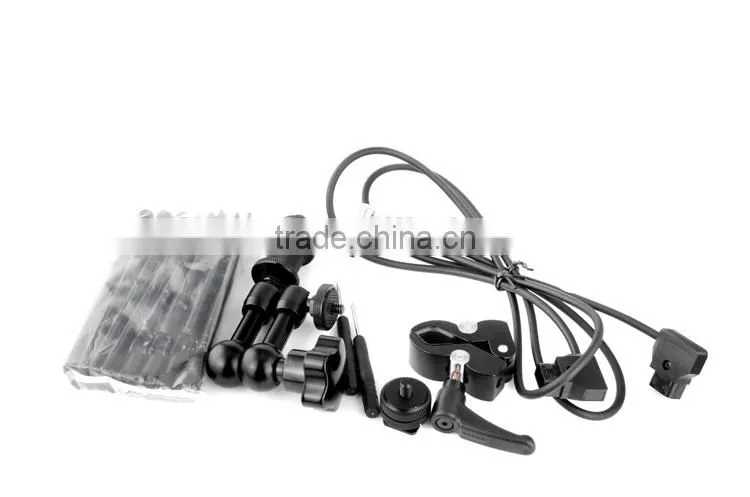

4. 2pcs DC convert cable (LEMO 4 pin-male to D-Type receptacle)
5. 1pcs user manual
6. 2pcs torx screwdriver
7. 1pcs 1/4-20 screw to ISO518 hot-shoe converter.
8. SONY NP-F970/Panasonic D28s/Canon 5D2 battery buckle (Optional)
9. 350*250*50mm carton packing
