New Arrivals For 2016 WHDI 800M/2625ft Audio Video 5Ghz Wireless Transmitter, HDMI Signal Wireless Transmitter and Receiver. uncompress , no delay, HD1080P
Introduction: 5Ghz Wireless Transmitter
Specializing in the wireless video synchronous transmission of radio. The 5Ghz Wireless Transmitter is designed to replace the current widely used cables in the live broadcasting and production environments. Cables alawys suffer from wiring hassles and sometimes just impossible to have cables. This 5Ghz Wireless Transmitter supports good wireless coverage, plug ad play, industry standard power and video interfaces and will provide you state-of-art picture quality with very low latency in both indoor and outdoor applications.

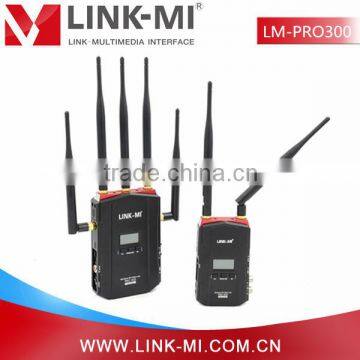

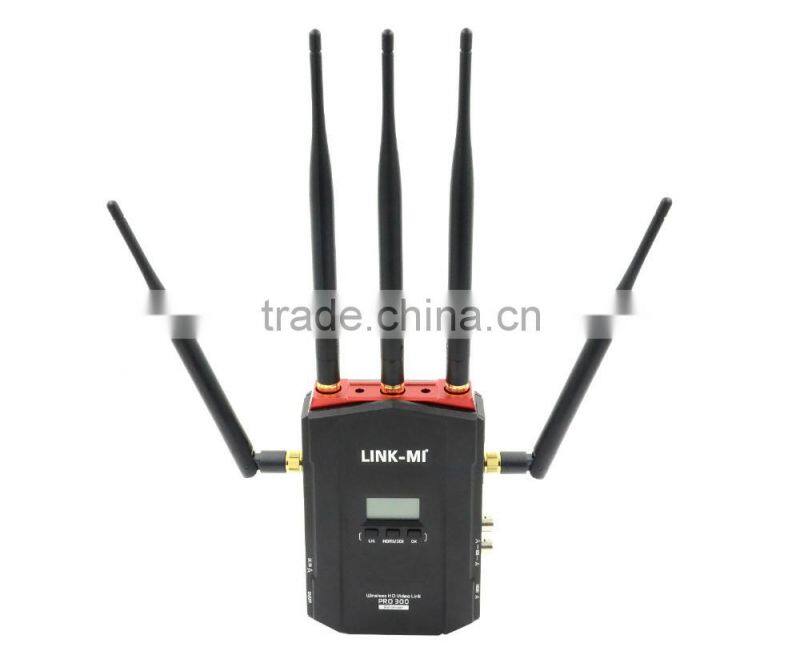

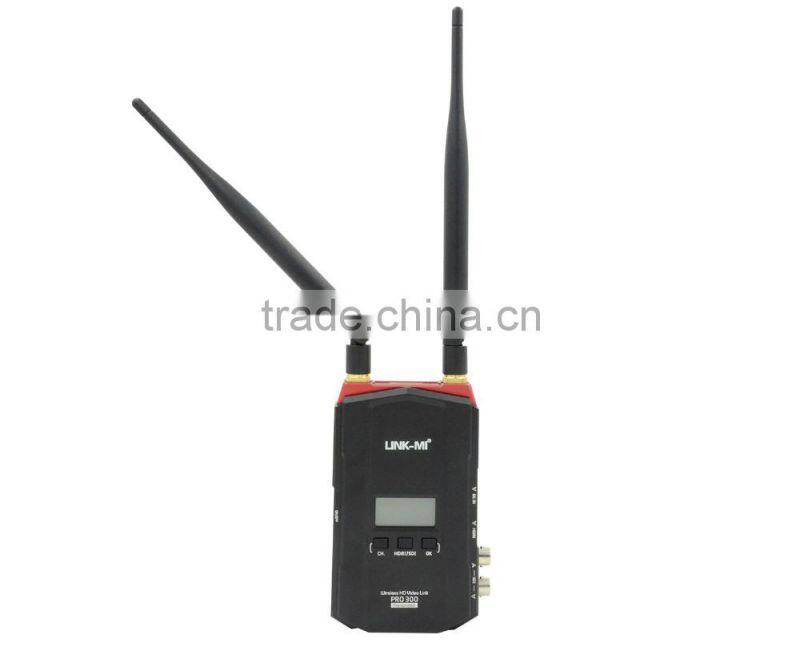

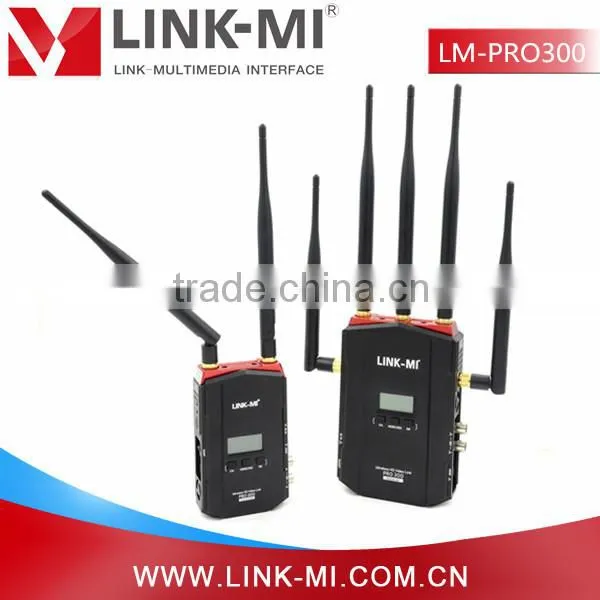

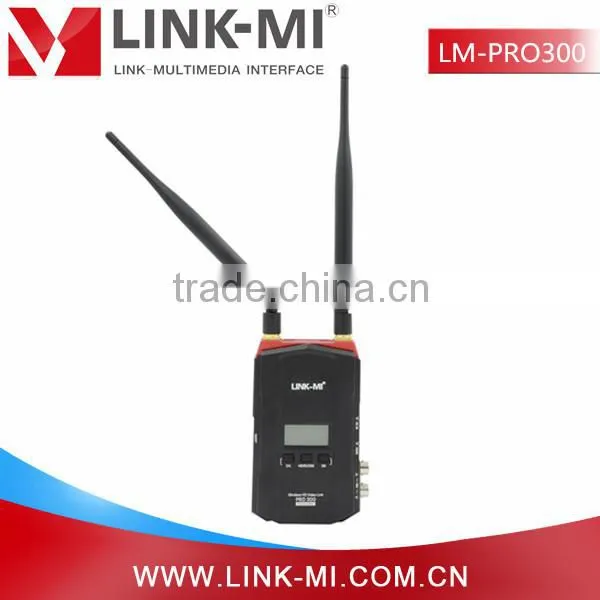

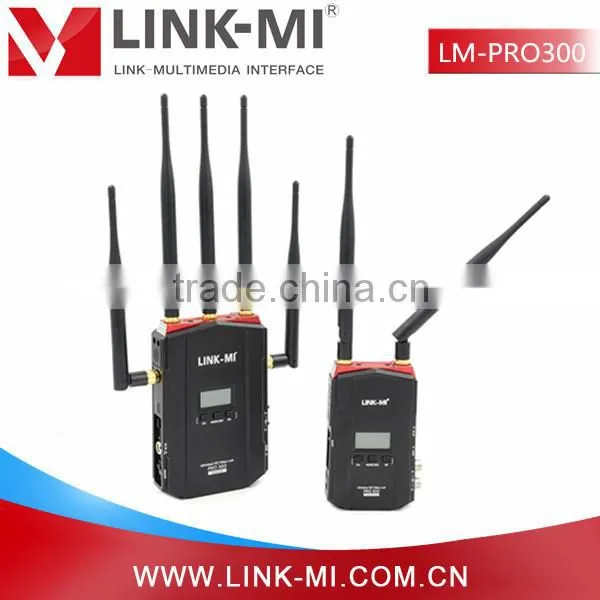

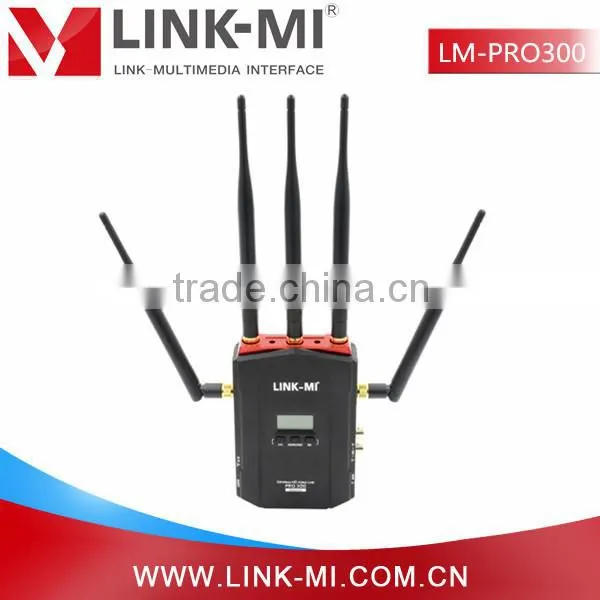

Product Picture: 5Ghz Wireless Transmitter
Model No.: LM-PRO300
Product Type: 5Ghz Wireless Transmitter 800M/2625ft
5Ghz WHDI Wireless Transmitter
Features: 5Ghz Wireless Transmitter
♦ The Wireless HD Video Link System can be used in film production, live broadcasting as well as many
other applications which requires good quality wireless video connections such as wedding and conferences.
♦ 5GHz ISM Band Wireless HD Video Transmission
♦ Supports multiple channel switching and broadcast mode for 1 transmitter to multiple receivers
♦ Supports up to 1080p/60Hz resolution, HDMI/HD-SDI/3G-SDI 4:2:2, 10bits color depth
♦ Uncompromised picture quality with very low latency <0.01ms
♦ Effective Range:800m/2625ft ( line of sight )
♦ HDMI 1.3 with EDID support
♦ Plug & Play - fully hardware design, no software is required
♦ AES128/256 Encryption

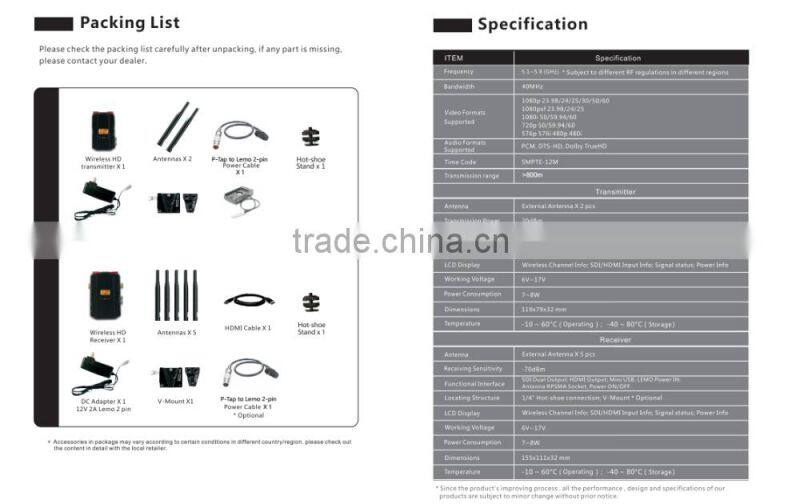

Specification: 5Ghz Wireless Transmitter
ITEM |
Specification |
Frequency |
5.1-5.9 (GHz) Subject to different RF regulations in different regions |
Bandwidth |
40MHz |
Video Formats Supported |
1080p 23.98/24/25/30/50/60 1080psf 23.98/24/25 1080i 50/59.94/60 720p 50/59.94/60 576p 576i 480p 480i |
Audio Formats Supported |
PCM, DTS-HD,Dolby TrueHD |
Time Code |
SMPTE-12M |
Transmission range |
>800m / 2625ft ( Line of sight) |
Transmitter | |
Antenna |
External Antenna X 2pcs |
Transmission Power |
20dBm |
Functional Interface |
HDMI input; SDI input; SDI Loop output; Mini USB; LEMO Power IN; Antenna RPSMA Socket, Power ON/OFF |
Mounting Structure |
1/4’ Hot-shoe connection; V-Mount* Optional |
LCD Display |
Wireless Channel Info; SDI/ HDMI Signal Info |
Working Voltage |
6V-17V |
Power Consumption |
12W |
Dimensions |
119x79x32 mm |
Temperature |
-10~60℃ (Operating); -40~80 ℃ (Storage) |
Receiver | |
Antenna |
External Antenna X 5 pcs |
Receiving Sensitivity |
-70dBm |
Functional Interface |
SDI Dual output; HDMI output; Mini USB; LEMO Power IN; Antenna RPSMA Socket, Power ON/OFF |
Locating Structure |
1/4 Hot-shoe connection; V-Mount* Optional |
LCD Display |
Wireless Channel Info; SDI/ HDMI Signal Info |
Working Voltage |
6V~17V |
Power Consumption |
7~8W |
Dimensions |
155x111x32mm |
Temperature |
-10~60℃ (Operating); -40~80 ℃ (Storage) |

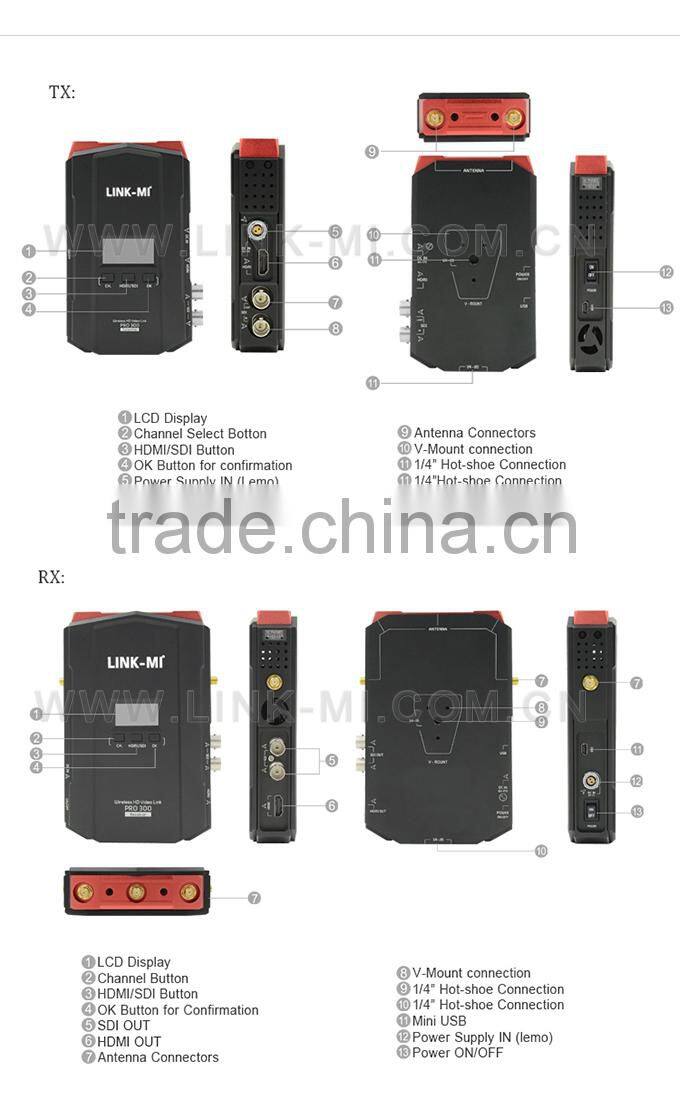

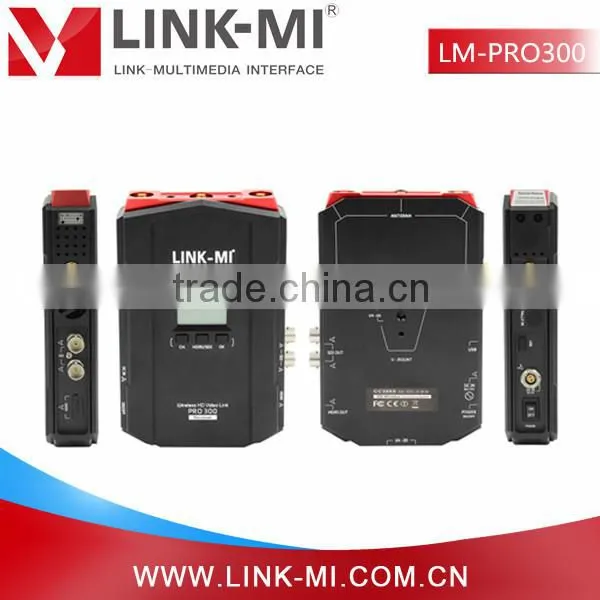

Panel Description: 5Ghz Wireless Transmitter and Receiver
