Specification
6x2 HDMI Matrix Switch
♦ Six HDMI Inputs Switch or Split to Two HD Displays
♦ HDMI Supports Full HD, 3D and 4Kx2K Video
♦ Support 2.0/ 5.1/ ADV Three Kinds of Audio Mode Options
LINK-MI LM-HD602 6x2 HDMI Matrix Switch Support ARC, PIP Function
Introduction
The 6x2 HDMI Matrix Switch supports the feature of PIP, ARC, 4K and 3D, which can switch or splitter the six HD input sources to the two HD Displays. It also can do the audio extract by the Optical port or HP port. ARC feature can let you return your TV audio to the av receiver; the PIP feature can let you choose the input sources channel by watch the small picture window at the Display.

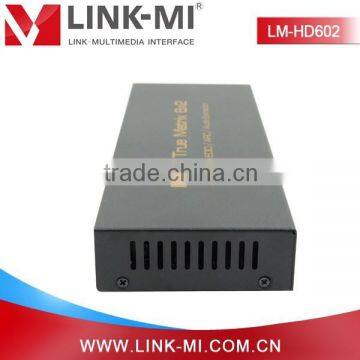

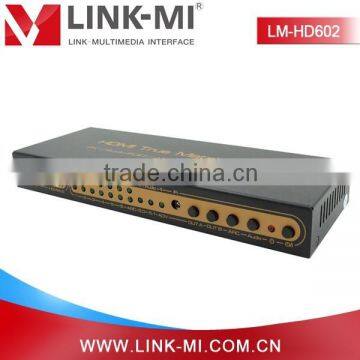

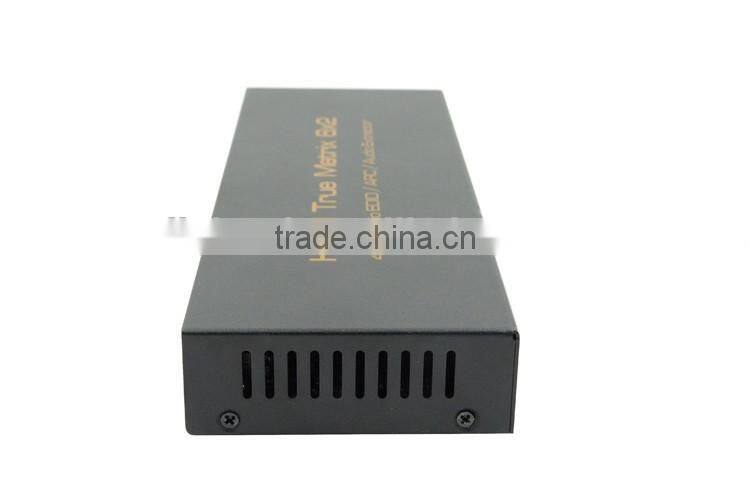

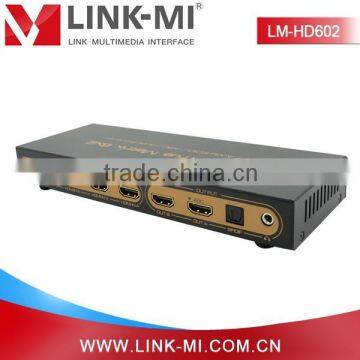

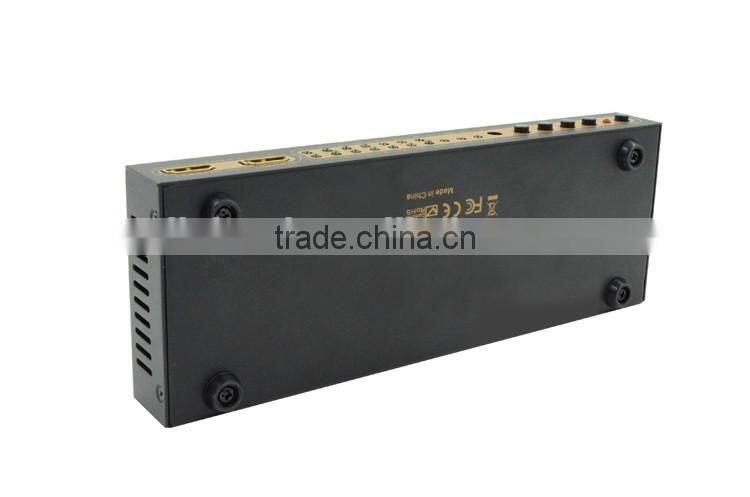

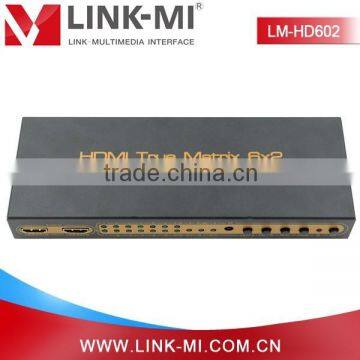

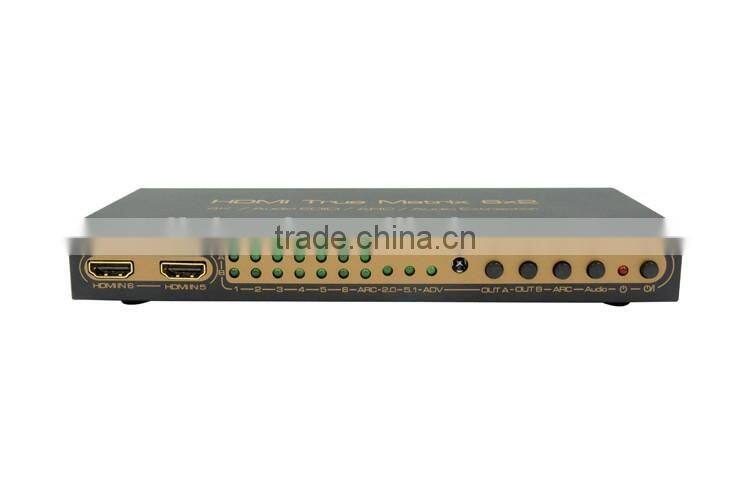

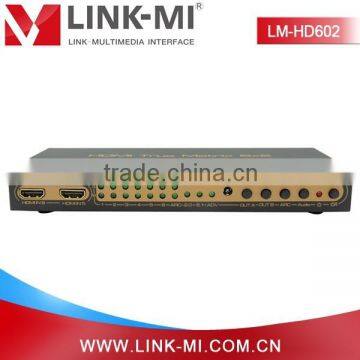

Product Picture
Model No.: LM-HD602
Product Type: 6x2 HDMI Matrix Switch
6x2 HDMI Matrix Switch
Features
♦ Six HDMI Inputs switch or split to two HD Displays.
♦ HDMI supports Full HD,3D and 4Kx2K video
♦ Any input HD Source can do audio extract by the SPDIF or 3.5mm Headphone audio output port.
♦ HDMI to achieve the synchronization of audio signal separation.
♦ Support 2.0/ 5.1/ ADV three kinds of audio mode options
♦ Supports ARC ,TV audio will return and out by the Optical Port;(only the OUT A port supports ARC function).
♦ Supports HDMI audio separation, can output by optical and 3.5mm Headphone at the same time
♦ Support SPDIF digital audio format: Dolby digital (AC3), DTS and LPCM2.0
♦ Support PIP function: have one main picture and five small pictures, it can do switch of input sources by press button or remote.
♦ LED indication: when source or sink is working, LED related will go bright.
♦ Support IR Remote Control and Push Button at device control.
♦ Led Status Light allows the user to know the working status easily.
♦ Power-off memory
♦ No loss of quality
♦ Need DC5V/2A power supply
Specification
HDMI resolution |
4KX2K/3D/1080p/1080i/720p/576p/576i/480p/480i |
Support HDMI audio format |
DTS-HD/Dolby-trueHD/LPCM/DTS/Dolby-AC3/DSD |
Digital Audio Output Supported Audio Format |
LPCM2.0/Dolby AC3/ DTS |
Digital Audio Output Sampling Rate |
32KHz, 44.1KHz, 48KHz,88.2KHz, 96KHz, 176.4KHz, 192KHz |
Max transmission bandwidth |
300MHz |
Max baud rate |
9.0Gbps |
Input/ Output TMDS signal |
0.5~1.5Volts p-p |
Input/ Output DDC signal |
5Volts p-p (TTL) |
Input cable distance |
≤10m(1080P)/5M(4K) AWG26 HDMI standard cable |
Output cable distance |
≤15m(1080P)/5M(4K) AWG26 HDMI standard cable |
Max working current |
700mA |
Power adapter format |
Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A |
Operating Temperature range |
-0 to +40℃ |
Storage Temperature range |
-20 to +60℃ |
Operating Humidity range |
5 to 85%RH (No Condensation) |
Storage Humidity range |
5 to 95%RH (No Condensation) |
Dimension (L x W x H) |
205x74x26 (mm) |
Weight |
440g |

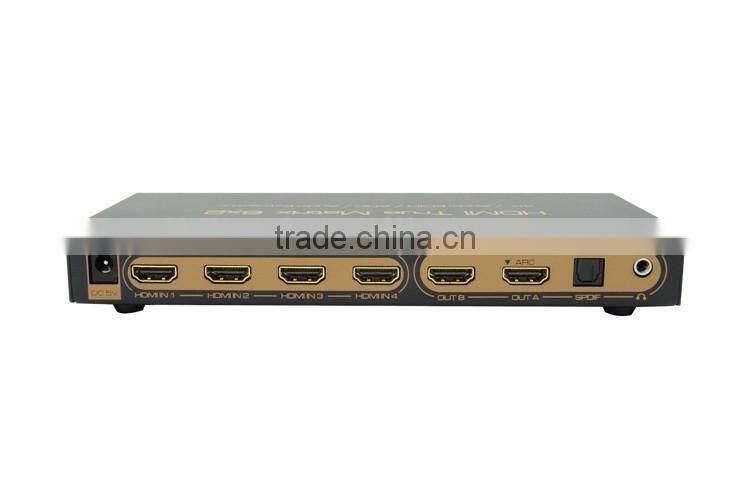

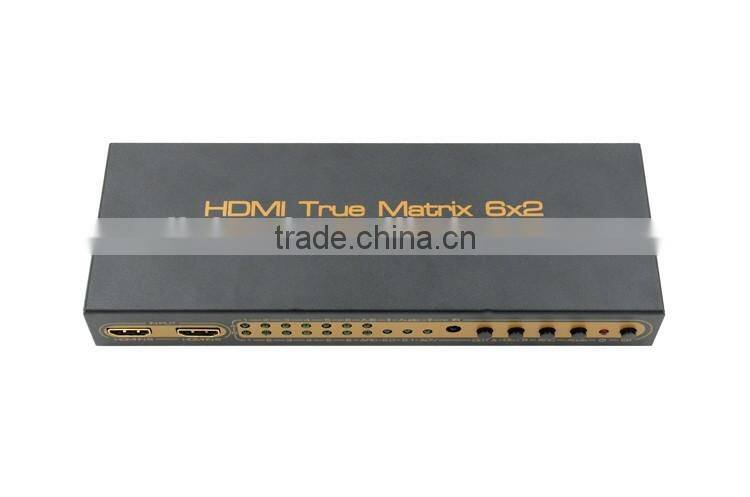

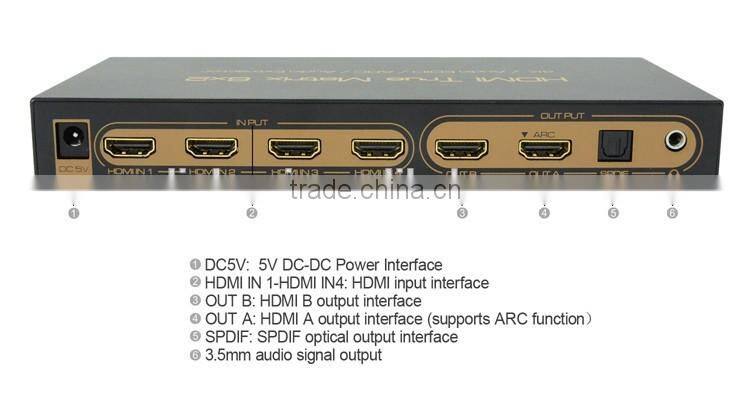

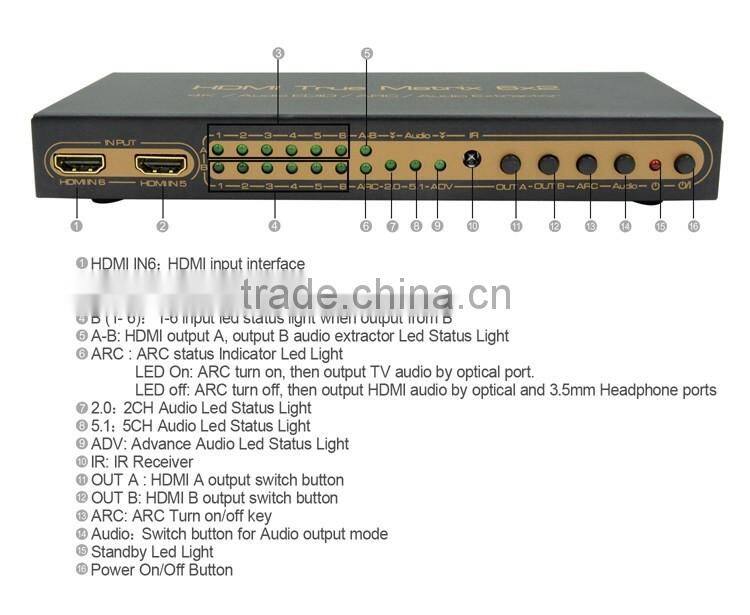

Panel Description
Connection and Operating
♦ Connect one cable from each HDMI source devices into HDMI Matrix inputs.
♦ Connect one cable from each display (monitor or projector) into the HDMI Matrix outputs.
♦ To use optical cable to connect the SPDIF output port with the AV Receiver.
♦ To use the analog av cable to connect the 3.5mm Headphone port of the device with the active speakers.
♦ To use the remote or push button at device to switch the input source.
♦ To connect the 5V adapter with the device.

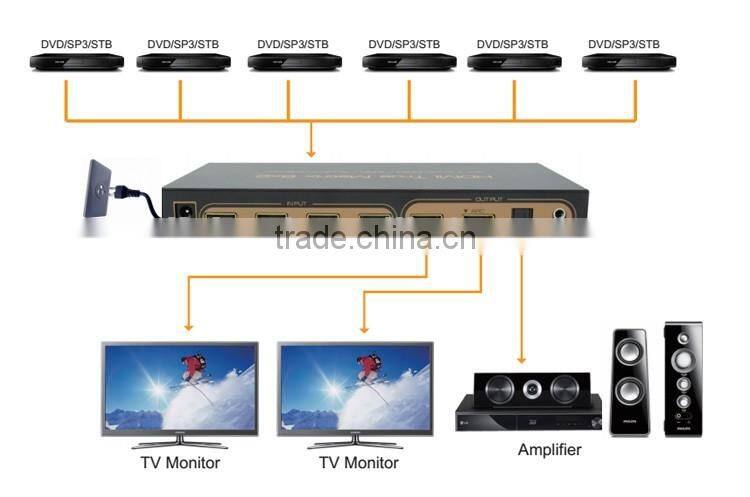

Wiring Diagram
Packing Contents: 6x2 HDMI Matrix Switch
♦ 1pcs 6x2 HDMI Matrix Switch
♦ 1pcs 5V power adapter
♦ 1pcs Remote
♦ 1pcs User manual
