4x4 HDMI Matrix Switcher
♦ Four Input HD Source Signals Switch and Distribute to Four HD Displays
♦ Support Signal Reforming
LINK-MI LM-HD404 4x4 HDMI Matrix Switcher With IR, RS232
Introduction
The 4x4 HDMI Matrix Switcher can connect four HD Sources with four HD Displays; it can easily switch and distribute four HD Source signals to four HD displays at the same time.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

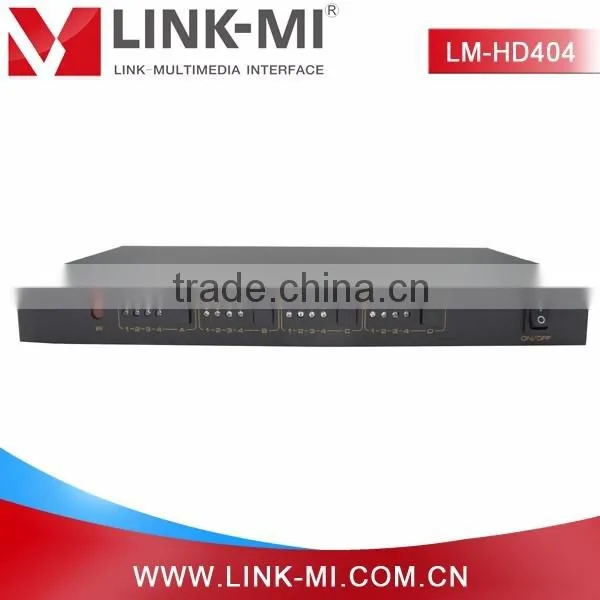

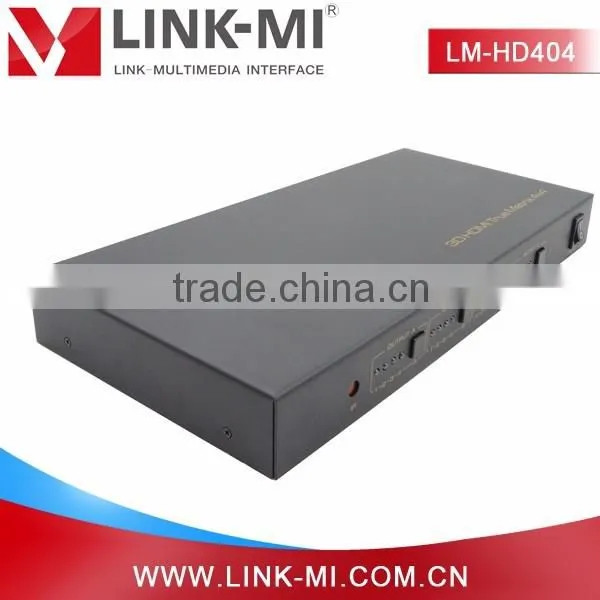

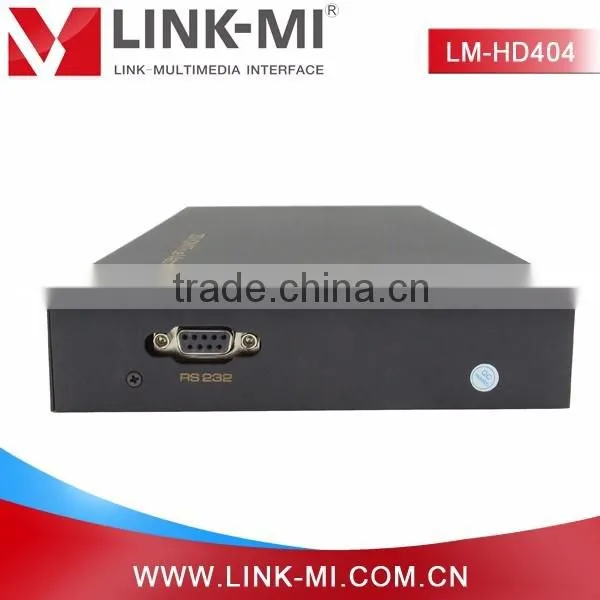

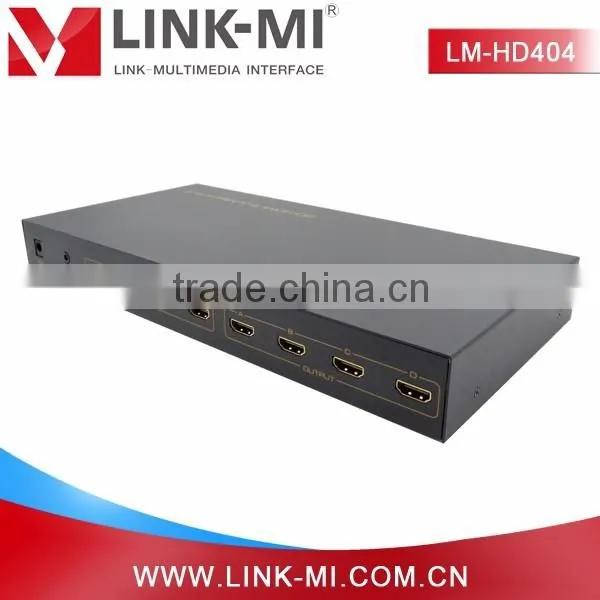

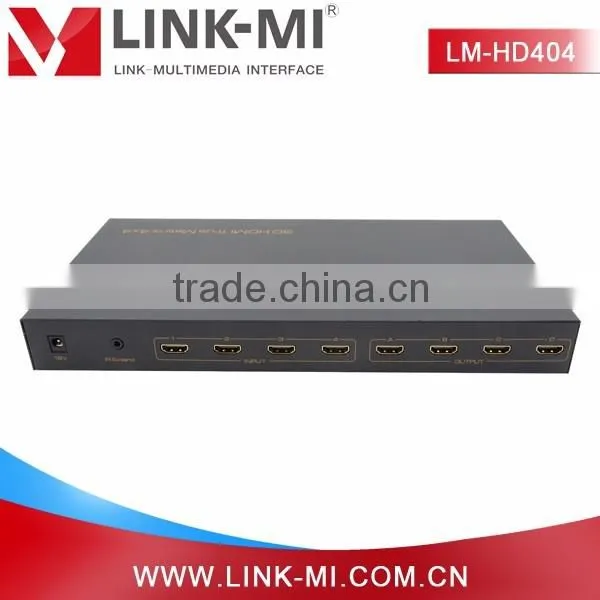

Product Picture
Model No.: LM-HD404
Product Type: 4x4 HDMI Matrix Switcher
4x4 HDMI Matrix Switcher
Features
♦ Four Input HD Source signals switch and distribute to four HD Displays
♦ Support 30/36 Bit Deep Color
♦ Support Blue-Ray DVD24/50/60fs/HD-DVD/xv-YCC
♦ Support Audio Format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
♦ Support Signal Reforming
♦ Input HDMI Cable length up to 10M if use the standard AWG26 HDMI Cable; Output HDMI Cable length up to 15M if use the standard AWG26 HDMI Cable.
♦ It can use the remote to choose the signal source or switch the input signal source by press the switch button.
♦ Use 5V3A Power Adapter
Specification
HDMI Input/ Output Resolution |
24/50/60fs/3D/1080p/1080i/720p/576p/576i/480p/480i |
Deep Color |
24bit/deep color 30bit,36bit |
HDMI Audio Format |
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
HDMI Max bandwidth |
225MHz |
HDMI Max baud rate |
6.75Gbps |
Input/ Output TMDS signal |
0.5~1.5 Volts p-p(TTL) |
Input/ Output DDC signal |
5 Volts p-p (TTL) |
HDMI Input cable distance |
≤10m AWG26 HDMI standard cable |
Output cable distance |
≤15m AWG26 HDMI standard cable |
Max working current |
2A |
Power adapter format |
5V/3A |
Operating Temperature range |
-15 to +55℃ |
Operating Humidity range |
5 to 90%RH (No Condensation) |
Product size (L x W x H) |
308X151X36 (mm) |
Weight |
1216g |

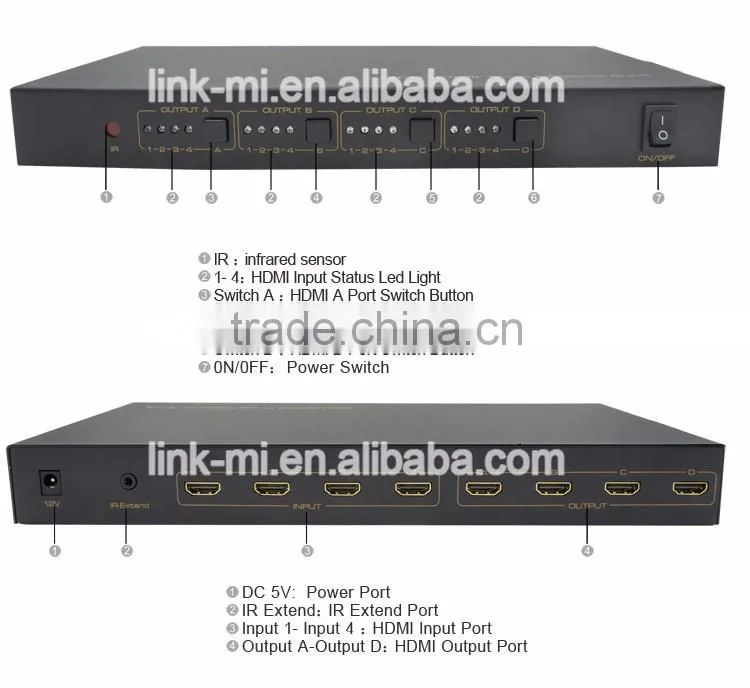

Panel Description
Connection and Operating
♦ To use the HDMI cable to connect the four HD sources with the HDMI input port of the matrix.
♦ To use the HDMI Cable to connect the four HD displays with the HDMI output port of the matrix.
♦ To connect the power adapter with the matrix.
♦ To use the RS232 cable and the IR cable to connect the RS232 port and IR port of the matrix with the control equipment to do control to the matrix.

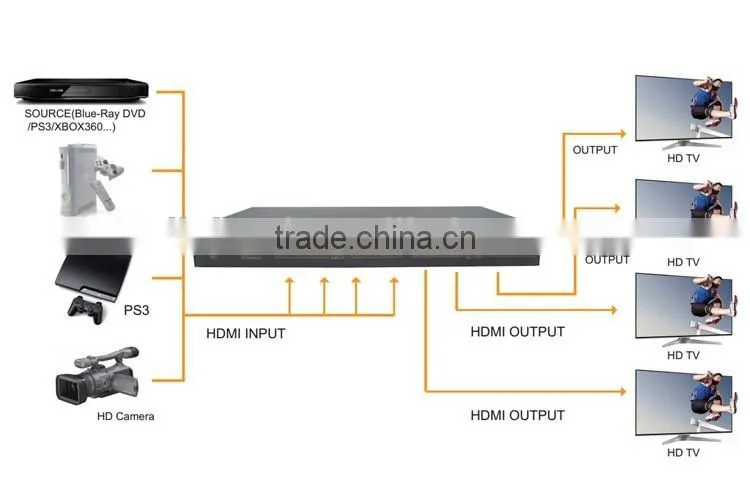

Wiring Diagram
Packing Contents: 4x4 HDMI Matrix Switcher
♦ Main Unit. 4x4 HDMI Matrix Switcher
♦ Power Adapter
♦ Remote
♦ User Manual
♦ CD ( RS232 Control Software)
♦ IR Extender Cable
♦ RS232 Serial Port Cable
