Specification
3x3 Video Wall Controller
♦ All-format Signal Capture--- Including Composite Video, VGA, DVI, HDMI etc
♦ Various Control Port---RS232, Remote Controller
♦ HDCP Compliant---HDMI 1.3, HDCP Protection
LM-TV09 HDMI/VGA/AV/USB 3x3 LED/LCD Video Wall Controller Built-in Conversion For Analog/Digital
Introduction
LM-TV09 3x3 Video Wall Controller is designed to be a truly in/out modular video wall processor, to capture, AD convert, route, distribute all-format signal to multiple video wall, including LCD TV,DID, DLP, Plasma, etc., while maintaining a true digital signal.
LM-TV09 3x3 Video Wall Controller with many different video interfaces, include HDMI, VGA, AV, and it is can decode video(like RMVB),audio(like MP3),Photo(like JPG) by itself through USB interface. Each video with audio can be switched together. output HDMI interface, resolution is 1080P or 720P, choosed by user.
LM-TV09 3x3 Video Wall Controller can be controlled by remote, button and RS232.

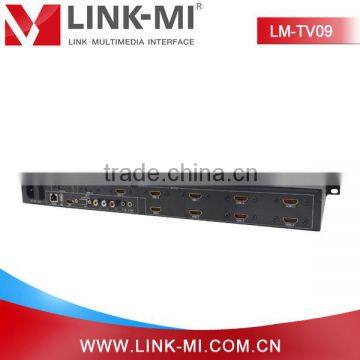

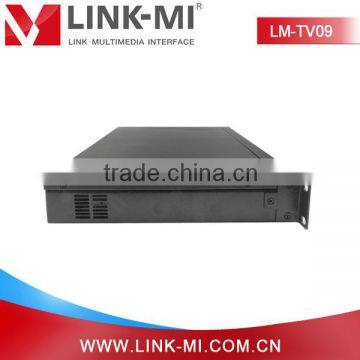

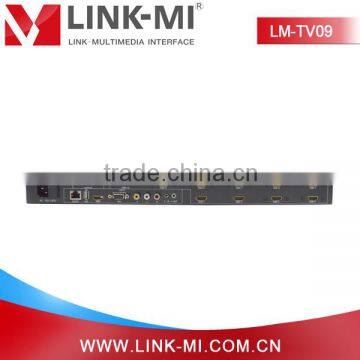

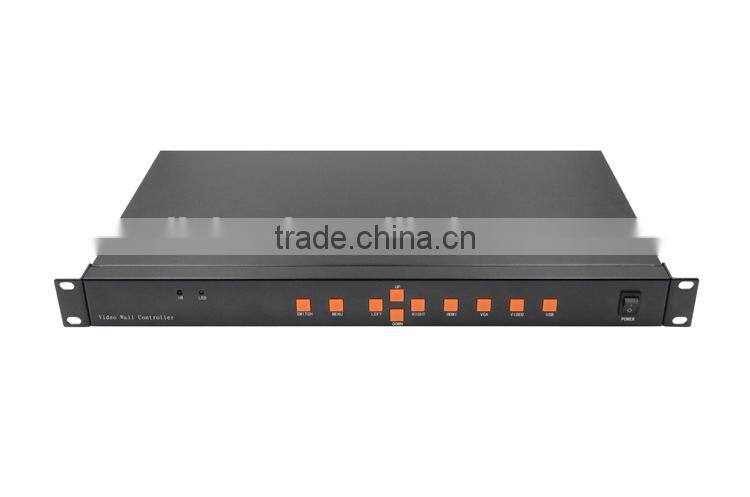

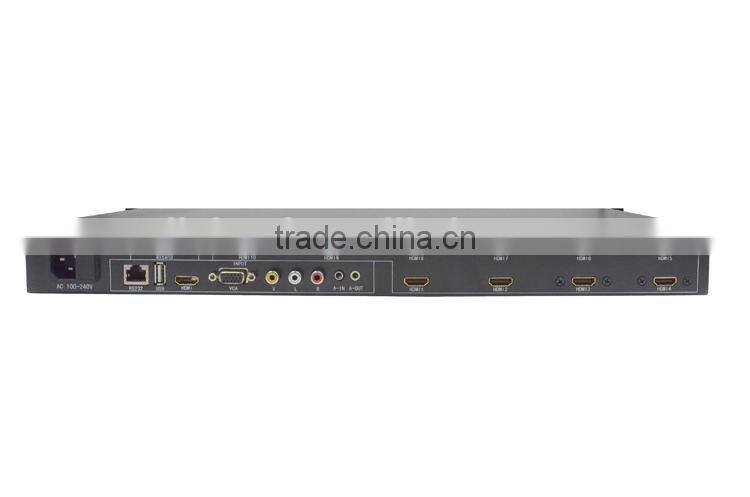

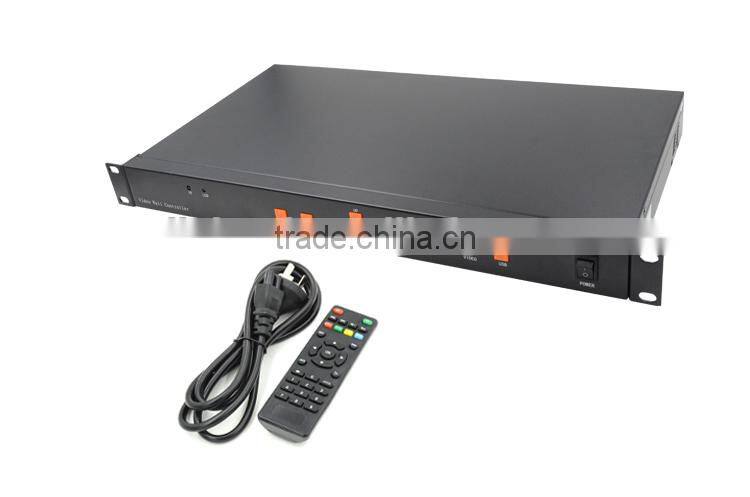

Product Picture
Model No.: LM-TV09
Product Type: 3x3 Video Wall Controller
3x3 Video Wall Controller
Features
♦ Truly in/out modular design--- truly concept modular, in/out boards
♦ All-format signal capture--- including composite video, VGA, DVI, HDMI etc
♦ Fully-digital processing channel inside --- Built-in conversion for analog/digital, interlaced/progressive, resolution, aspect ratio and refresh rate.
♦ Individually supports 180° rotation
♦ Easy maintenance--- suitable for all environment
♦ Various control port---RS232, remote controller
♦ HDCP compliant---HDMI 1.3, HDCP protection
♦ Support DVI1.0
Specification
Name |
Spec |
HDMI input |
|
Interface |
HDMI (support HDCP1.3 and DVI1.0) |
Resolution |
Up to 1920*1080 |
Color |
24bit,16.77M |
VGA input |
|
Interface |
DB15 |
Resolution |
800*600 to 1920*1080 |
AV input |
|
Interface |
RCA |
Identification |
Auto |
Standard |
PAL,NTSC |
USB |
|
Video |
RM, RMVB, AVI, WMV, MOV, MP4, FLV, MPG, DAT, MPEG |
Audio |
MP3, WMA, FLAC |
Picture |
JPG, BMP, PNG |
Audio in |
Fit for VGA video |
Audio output |
Fit for output video |
HDMI output |
720P or 1080P |
Controller |
Remote,button,RS232 |
Power |
Input:AC 100-240V |
Dimension |
441mm(L)x239mm(W)x44mm(H) |

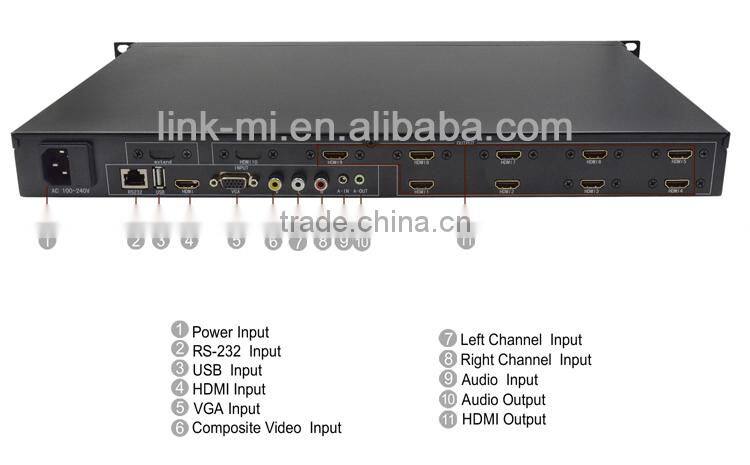

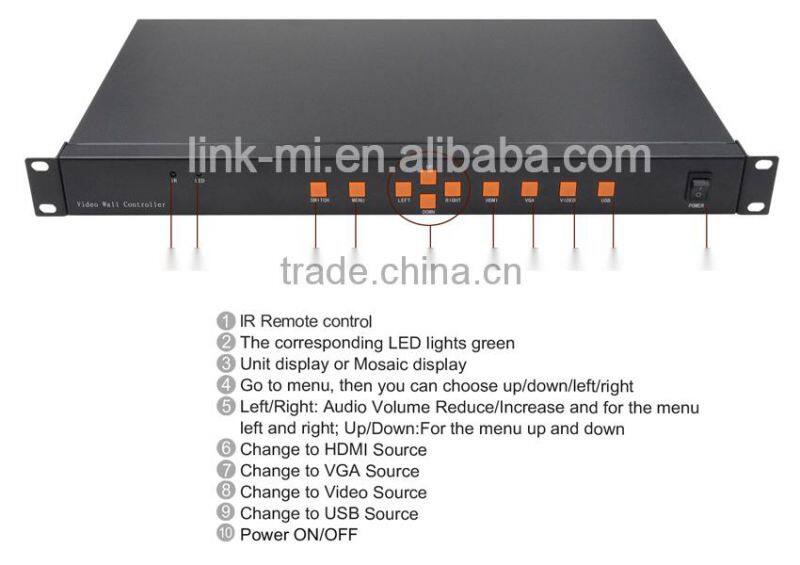

Panel Description

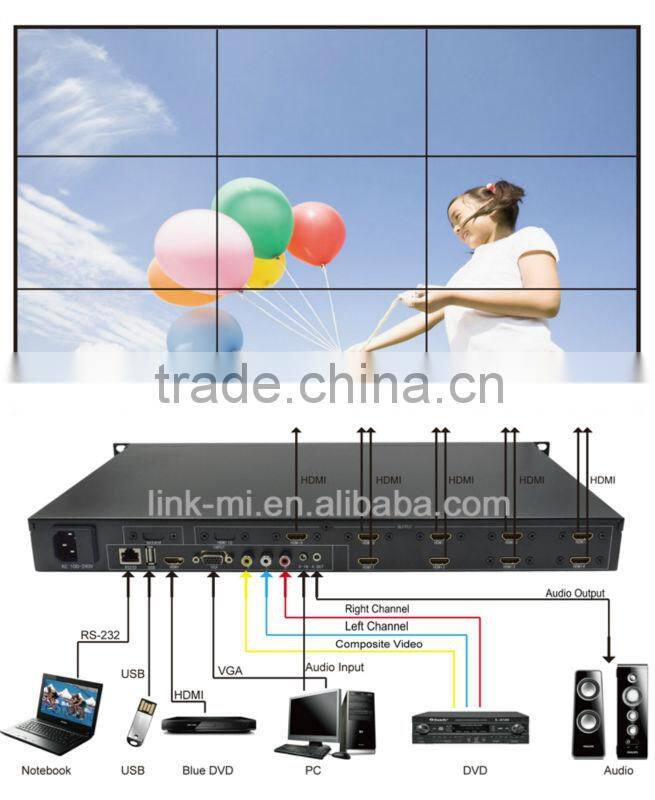

Wiring Diagram

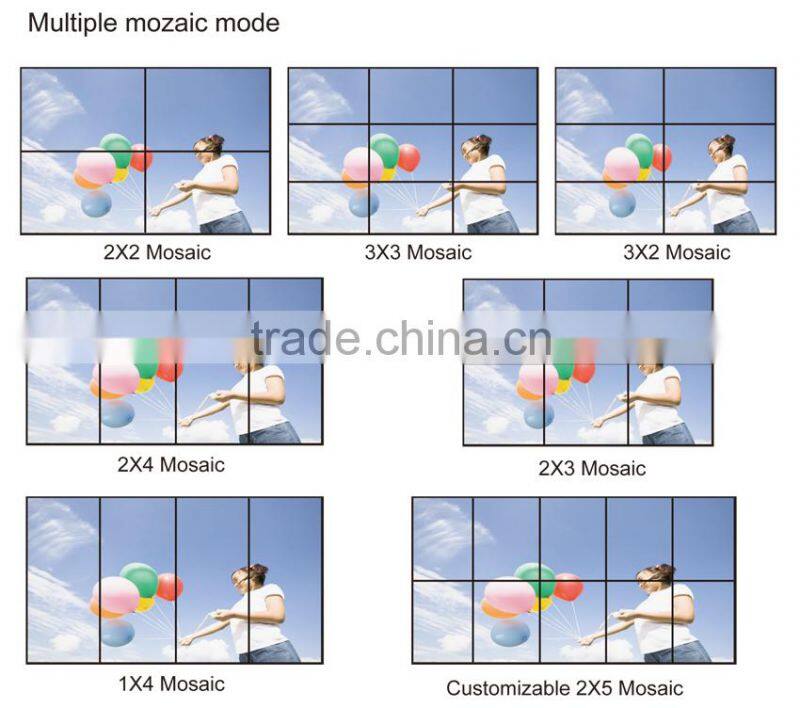

Multiple Mosaic Mode
Packing Contents: 3x3 Video Wall Controller
♦ Main Unit. 1pcs 3x3 Video Wall Controller
♦ 1pcs Power Adapter
♦ 1pcs Remote Controller
♦ 1pcs User Manual
