LM-STF501H SD/HD/3G SDI BNC to Fiber Video Converter With RS485
- 10000 Piece / Pieces per Month
- Shenzhen
- Credit Card
-
Dark Red Antique European antique desk lamp telephone for sale
-
Antique European brown lamp telephone landline with home phones
-
Antique European antique desk lamp home phones
-
Antique gramophone gift music box player
-
Classical turntable gramophone gift music box player
-
Modern turntable gramophone gift music box player
Product Details
| Brand Name: | LINK-MI/OEM | Model Number: | LM-STF501H | Place of Origin: | Guangdong, China |
Product Description
LM-STF501H SD/HD/3G SDI BNC to Fiber Video Converter With RS485
Model Number: LM-STF501H
Keywords: BNC to Fiber Video Converter
Introduction: BNC to Fiber Video Converter
LM-STF501H SD/HD/3G-SDI BNC to Fiber Video Converter is a economical device specially for transmission over single-mode Fiber with Transmitter and Receiver. SD/HD/3G-SDI Fiber Optical Extender adopts the advanced digital fiber transmission technology,transmiting a far distance over a single-mode fiber with SD/HD/3G-SDI video signal (Optional 1 reverse 485 control signals ),and supporting SMPTE292M.SMPTE259M.SMPTE424 standard signal.
Features
1.HD/3G-SDI HD digital video and audio signal Fiber Optical transmission.
2.Adapted SDI 270Mbps,1.485Gbit,2.97bitG speed rate.
3.Opposite RS485 data
4.Built-in cable equalizer,Reclocker and Cable Driver
5.Tested by Pathological
6.Support consumer customize and OEM
Specifications
Parameter |
| |
Video | Connector | BNC female connector |
| Interface Band Width | 1.4835Gbps,1.485Gbps,2.967Gbps,2.97Gbps |
| Impedance | 75Ω |
| Resolution | 1920*1080@60Hz; 1920*1080@50Hz; 1920*1080@30Hz; 1920*1080@25Hz; 1920*1080@24Hz; 1280*720@60Hz; 1280*720P@50Hz; 525i; 625i |
RS485 | Interface |
|
| Baud Rate | Support various rate |
Fiber | Fiber Connector | LC Fiber |
| Fiber Type | Single Mode |
| Wave Length | Single 1310nm |
| Band Width | 2.97Gbps |
| MaxTransmission Distance | Single Mode Fiber:20km/40km/60km |
| Power Supply | Power Adapter:DC 5V/2A |
| Power Consumption | MAX 2.5W |
| Operating Temperature | -5℃ ~ +70℃ |
| Operating Humidity | 5% ~ 90% |
| Dimension | 120mmx97.5mmx25.2mm |
| Guarantee | 1 Year |
Product Introductions
Connection Diagram
Operation
1. Connect SDI source signal to SDI transmitter
2. Connect SDI receiver to display
3. Using fiber cable to connect transmitter and receiver
4. Connect power to transmitter and receiver,when indicator lights,the system works normally.

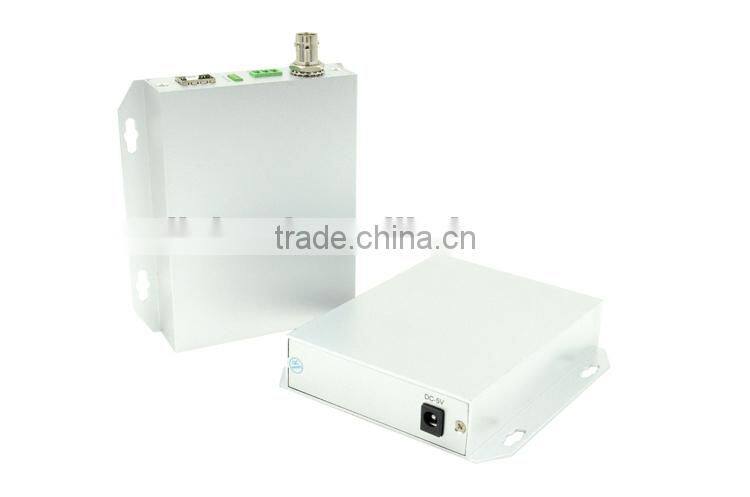

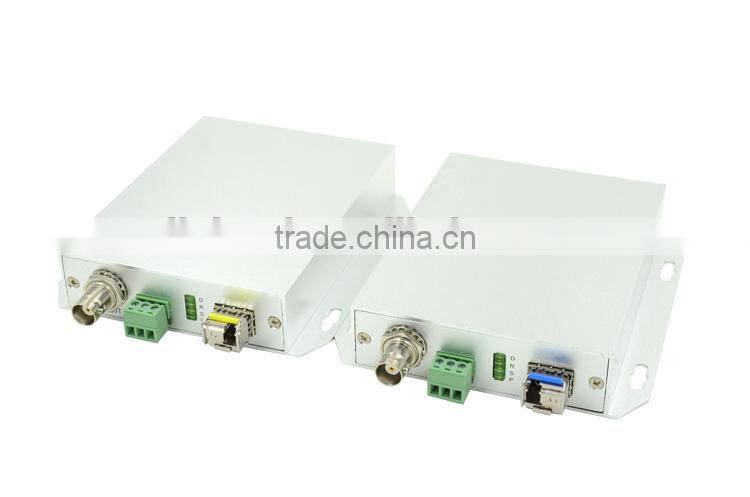

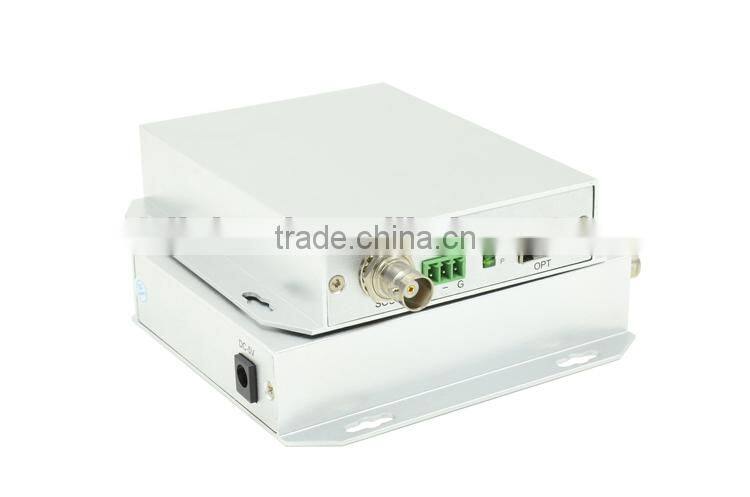

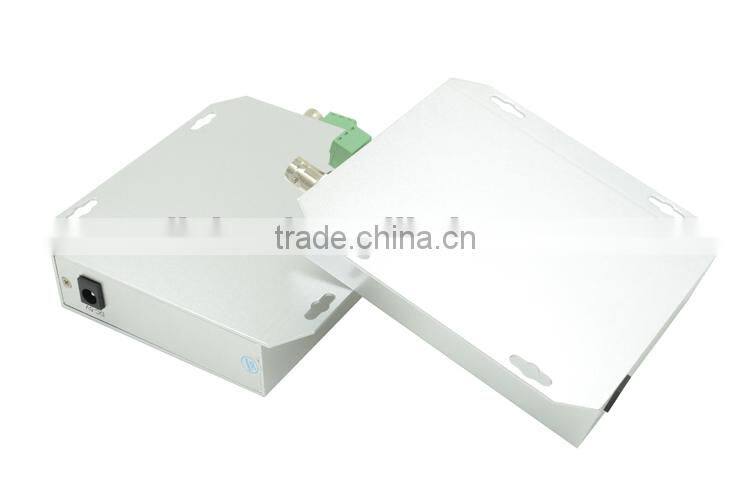

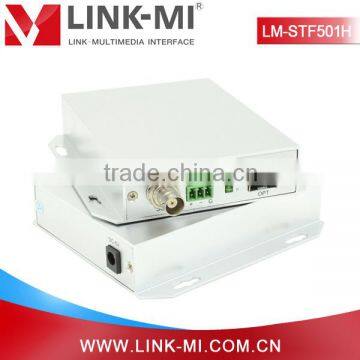

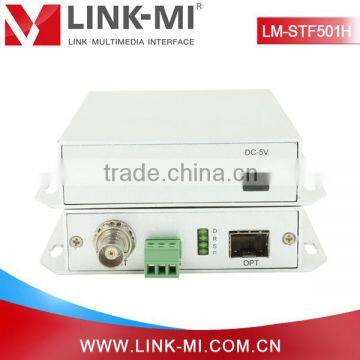

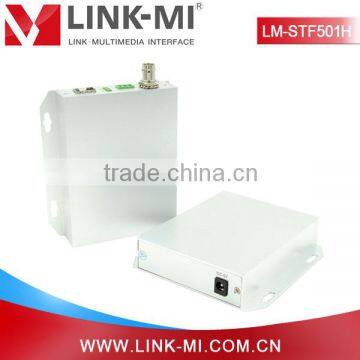

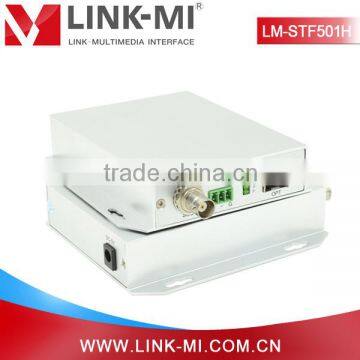

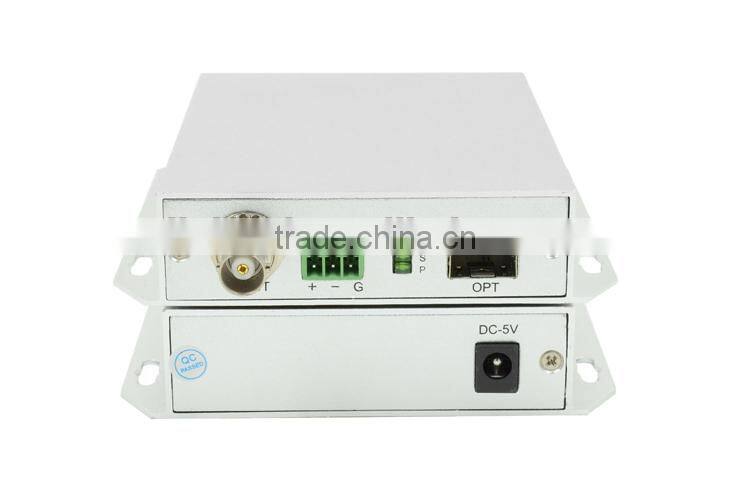

Product Display

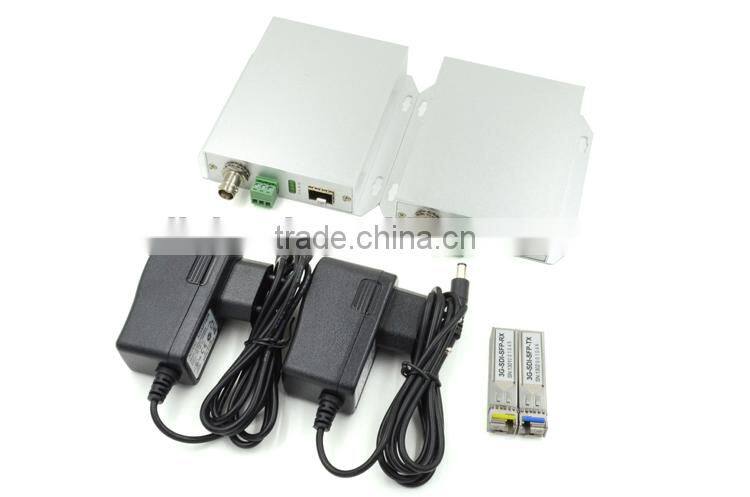

PACKING CONTENTS:SD/HD/3G SDI BNC to Fiber Video Converter With RS485
1. Main item : SD/HD/3G SDI Transmitter and Receiver
2. 2 pcs Power supply
3. 1 piece manual
