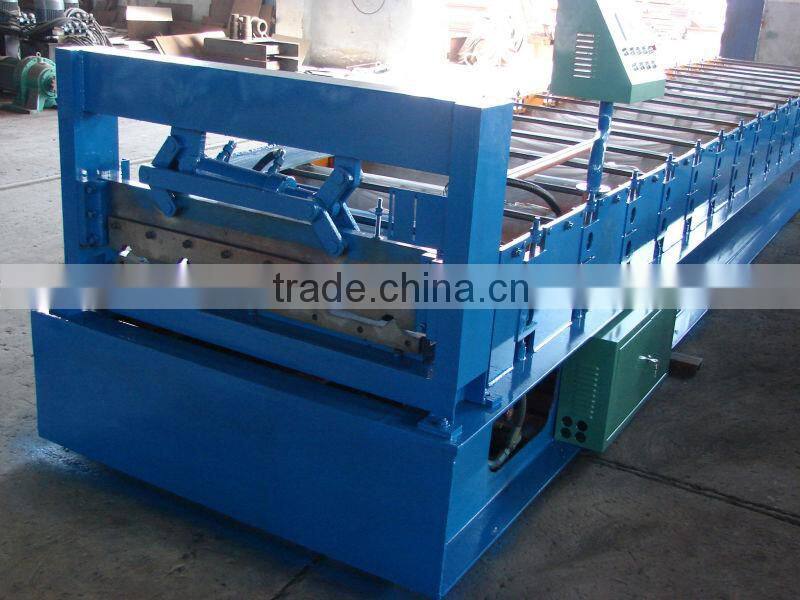

HT- Full Automatic Roll Forming Machine Line (Type 24-210-840)

HT- Full Automatic Roll Forming Machine Line (Type 24-210-840) thumbnail-1
HT- Full Automatic Roll Forming Machine Line (Type 24-210-840) photo-1
US$ 9,692 - 16,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Steel
Contact Supplier Request Quote Chat Now
Botou Huatong Corrugated Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tile Forming Machine
Tile Type Steel
Use Other, floor and roof
Production Capacity about 0-12 m/min
Place of Origin Hebei, China
Brand Name HUATONG
Model Number 24-210-840
Power(W) 3KW
Voltage 380V/50Hz/3phase
Dimension(L*W*H) 7.5m * 1.3m *1.5m
Weight about 4.5t
Certification ISO
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.well-known for its fine quality
2.Newest design;
3.Hydraulic Shearing Machine Price;
4.Hua Tong Roll Forming Machine;

HT- full automatic roll forming machine line (Type 24-210-840)HT- full automatic roll forming machine line             (Type 24-210-840)





1. Machine components

(1) Manualun-coiler                                  1 set

(2) Feeding device                                   1 set

(3) Roll-forming M/C                                  1 set

(4) Hydraulic cutter                                  1set

(5) PLC control system                               1 set

(6) Hydraulic station                                   1 set

(7) Product rack (un-powered)                        1 set

2. Spare parts

1).Easy damaged parts:

Fuse-link                                         2 pcs

2).Rubber mat                                       2 pcs

HT- full automatic roll forming machine line (Type 24-210-840)



Delivery:

(1) Material of frame : (high grade) 250mm H shape steel welding

(2) Thickness of middle plate : 12mm

(3) Step of forming roller : 17steps

(4) Diameter of shaft (solid shaft): 74mm

(5) Material of shaft (solid shaft): (high grade) 45# Steel,quenching and tempering treatment

(6) Material of roller: 45# Steel

(7) Treatment of roller : hard chromize coated

(8) Drive type of roll forming machine : drive by chain

(9) Chain : 19.05 mm (high grade)

(10) Bearing : 6210 (high grade)

(11) Reducer : 5# cycloid reducer (high grade)

(12) Power of main motor : 3KW

(13) Voltage : 380V/50Hz/3phase

(14) Line speed : about 0-12 m/min

(15) Motor power of hydraulic station : 3kw

(16) Oil pump of hydraulic station : gear oil pump (high grade)

(17) Hydraulic cutting: cutting controlled by PLC

(18) Accuracy of cutting : +/- 2mm

(19) Razor blades material : Cr12, quenching 58-62 °.

(20) Appearance size of main forming machine : (length) 7.5m * (width)1.3m *(height)1.5m

(21) Electrically controlled system : entire machine controlled by PLC

(22) PLC : DELTA(TAIWAN)

(23) Frequency converter : DELTA(TAIWAN)

(24) Frequency converter power : 3.7KW

(25) Encoder : RUI PU(high grade)

(26) Controlling desktop : text panel screen(high grade)

(27) Electrical parts : DELIXI or CHINT

Note : we can customize the design and fabrication on the particular type of machine according to the request of customer.
