Flat Sheet Leveling and Cutting Machine Production Line

Flat Sheet Leveling and Cutting Machine Production Line thumbnail-1
Flat Sheet Leveling and Cutting Machine Production Line photo-1
US$ 33,770 - 50,770 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, cutting machine line
Tile Type:
Steel
Contact Supplier Request Quote Chat Now
Botou Huatong Corrugated Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin new port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, cutting machine line
Tile Type Steel
Use Other, cutting steel panel
Place of Origin China
Brand Name Huatong
Power(W) 3KW
Voltage 280V, 380v
Warranty 12 month, 12 month
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Flat sheet leveling and cutting machine production line
1.Auto cutting machine line
2.easy control by PLC
3.Warranty : 1 YEAR

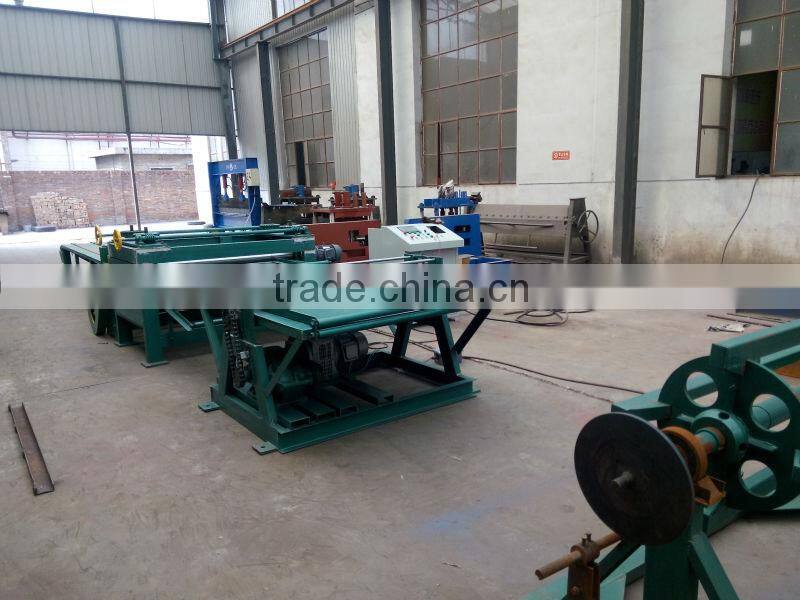

Flat sheet leveling and cutting machine production line

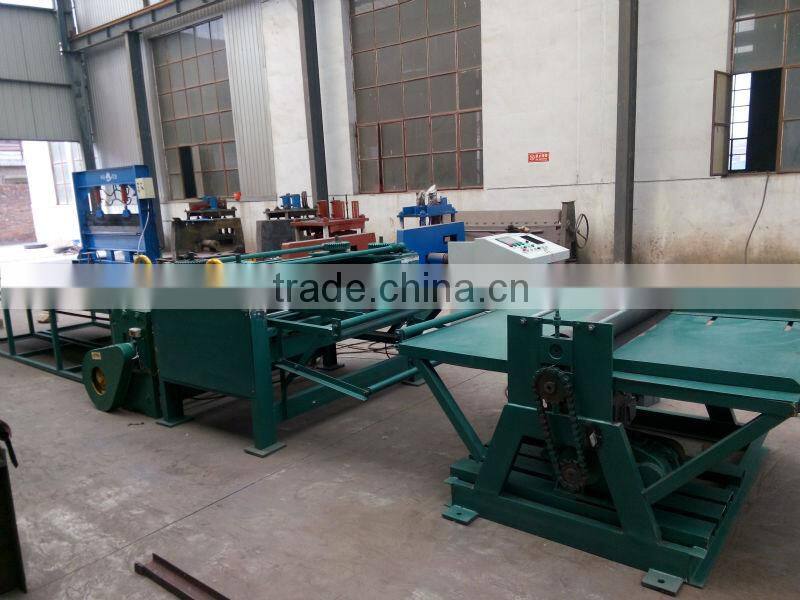

Flat sheet leveling and cutting machine production line

Flat sheet leveling and cutting machine production line

Leveler line

1. Leveler machine

(1)   step of leveler roller : 15 steps

(2)   dia of roller : 95mm

(3)   power : 5.5kw

(4)   effective width : 1.2m

(5)   thickness of material (plate) : 0.13mm-0.5mm (also suit for 0.1mm-1.0mm)

(6)   appearance size : 1.2m (length)*1.5m (width)*1.2m (height)

2. Slitting machine

(1)   roller : 3

(2)   cutter : 3

(3) power : 2.2kw

(4) effective width : 1.2m

(5) thickness of material(plate) : 0.13mm-0.5mm (also suit for 0.1mm-1.0mm)

(6) appearance size : 1.0m (length)*1.5m (width)*1.2m (height)

(7) Weight : about 0.9T

3. Shearing machine

(1)  form of shearing machine : mechanical form

(2)  power : 2.2kw

(3)  effective width : 1.2m

(4)  thickness of material(plate) : 0.13mm-0.5mm (also suit for 0.1mm-1.0mm)

(5)  appearance size : 0.6m (length)*1.8m (width)*1.2m (height)

4. Conveyer machine

(1) shuangjiao roller

(2) power : 3kw

(3) effective width : 1.2m

(4) appearance size : 1.0m (length)*1.7m (width)*1.0m (height)

5. Stacker

(1) power : 2.2kw

(2) appearance size : 0.6m (length)*1.8m (width) *0.7m (height)

Note : production capacity of Leveler line: 16m-19m/min

      Weight of total Leveler line : about 5T

6. Cutting control by computer

(1) oil pressure control

(2) power :3KW

7. Electrical equipment

Brand of frequency converters is DELTA(TAIWAN)

Electrical parts : DELIXI or CHINT

Flat sheet leveling and cutting machine production line





Note : we can customize the design and fabrication on the particular type of machine according to the request of customer.
