Specifications
Flat sheet leveling and shearing machine production line1.Auto cutting machine line
2.easy control by PLC
3.Warranty : 1 YEA

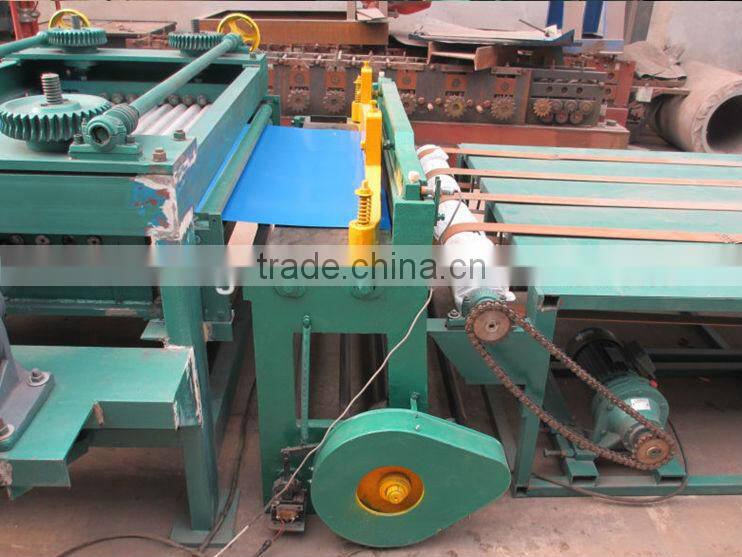

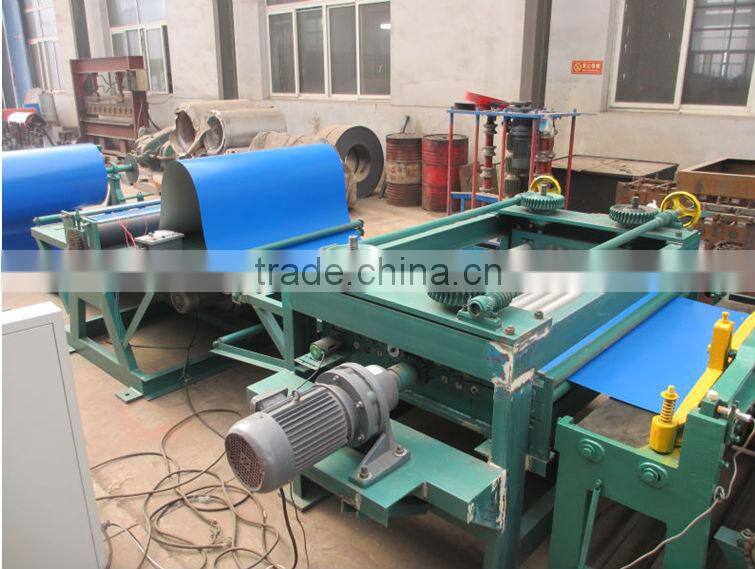

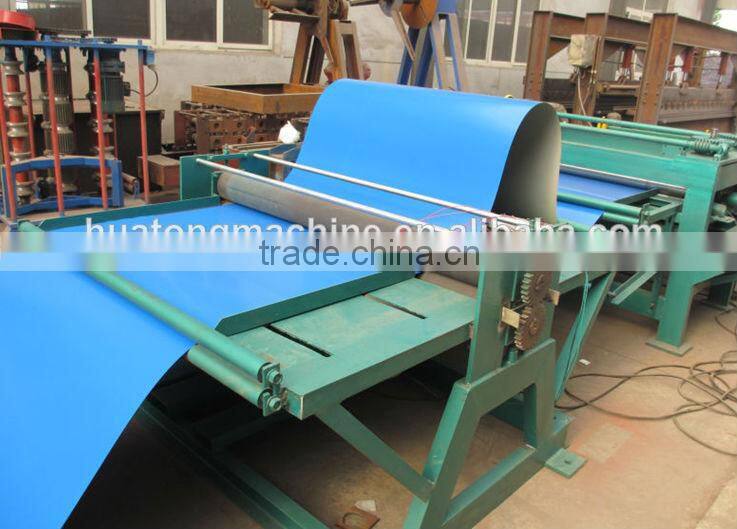

Flat sheet leveling and shearing machine production line
Leveler line
1. Leveler machine
(1) step of leveler roller : 15 steps
(2) dia of roller : 95mm
(3) power : 5.5kw
(4) effective width : 1.2m
(5) thickness of material (plate) : 0.13mm-0.5mm (also suit for 0.1mm-1.0mm)
(6) appearance size : 1.2m (length)*1.5m (width)*1.2m (height)
2. Slitting machine
(1) roller : 3
(2) cutter : 3
(3) power : 2.2kw
(4) effective width : 1.2m
(5) thickness of material(plate) : 0.13mm-0.5mm (also suit for 0.1mm-1.0mm)
(6) appearance size : 1.0m (length)*1.5m (width)*1.2m (height)
(7) Weight : about 0.9T
3. Shearing machine
(1) form of shearing machine : mechanical form
(2) power : 2.2kw
(3) effective width : 1.2m
(4) thickness of material(plate) : 0.13mm-0.5mm (also suit for 0.1mm-1.0mm)
(5) appearance size : 0.6m (length)*1.8m (width)*1.2m (height)
4. Conveyer machine
(1) shuangjiao roller
(2) power : 3kw
(3) effective width : 1.2m
(4) appearance size : 1.0m (length)*1.7m (width)*1.0m (height)
5. Stacker
(1) power : 2.2kw
(2) appearance size : 0.6m (length)*1.8m (width) *0.7m (height)
Note : production capacity of Leveler line: 16m-19m/min
Weight of total Leveler line : about 5T
6. Cutting control by computer
(1) oil pressure control
(2) power :3KW
7. Electrical equipment
Brand of frequency converters is DELTA(TAIWAN)
Electrical parts : DELIXI or CHINT
Note : we can customize the design and fabrication on the particular type of machine according to the request of customer.
