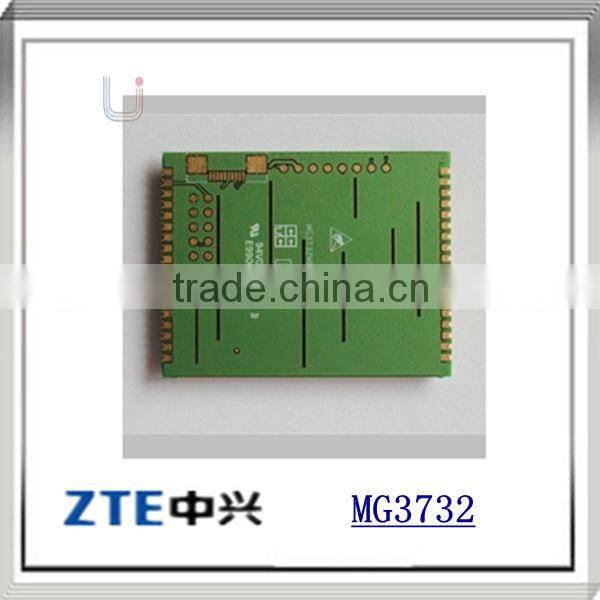

Zte Module Zte Gsm Gprs Wcdma Module Wireless Module Mg3732

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ZTE

Model Number:

MG3732

Shenzhen Head Weblink Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHEN ZHEN OR HONG KONG

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ZTE

Model Number MG3732

3.Frequency band:WCDMA850/900/2100MHz or 850/1900/2100MHz
GSM850/900/1800/1900MHz

4. Function :Built-in TCP/IP protocol/USB/UART port

5. Highlights :Single-sided layout with super-thin and small bulk design, compatible with MC8630/MT3732/MW3736 on hardware

Basic functions
Item	Description
Voice call	Circuit-switching service
Packet data	Packet data service
SMS	Support TEXT

Interfaces of the modules
Interfaces	Descriptions
Power interface	Supply power to the module, reset the module or turn on/off the module
Audio interface	Double audio I/O channel, one for differential, one for single end
USIM interface	R-UIM
USB interface	USB2.0 High Speed
UART interface	Hardware full flow control port, customized by software
PCM interface	Transmit voice data for Bluetooth applications
Antenna interface	50 Ohm input resistance control

Technical parameters
Items	Descriptions
Working temperature	-20°C~+70°C
Critical temperature	-30°C~+75°C
Storage temperature	-40°C~+85°C
Dimensions	39.5mm31mm2.65mm
Weight	7g
Data Rate	DL:3.6Mbit/s;UL:384Kbit/s
Input voltage	3.3V~4.25V
Maximum current	1800mA @ -102dBm
Standby current (average)	10mA @ -75dBm
Call current	230mA @ -75dBm
Rx. Sensitivity	-106.5dBm
Max. Tx power	GSM850, EGSM900: 33dBm(2W)
	GSM1800, PCS1900: 30dBm(1W)
	WCDMA: 23dBm
Frequency range	GSM850: Tx: 824~849MHz Rx: 869~894MHz
	EGSM900: Tx: 880~915MHz Rx: 925~960MHz
	DCS1800: Tx: 1710~1785MHz Rx: 1805~1880MHz
	PCS1900: Tx: 1850~1910MHz Rx: 1930~1990MHz
	WCDMA 2100: Tx: 1920~1980MHz Rx: 2110~2170MHz
	WCDMA 1900: Tx: 1850~1910MHz Rx: 1930~1990MHz
	WCDMA 850: Tx: 824~849MHz Rx: 869~894MHz
