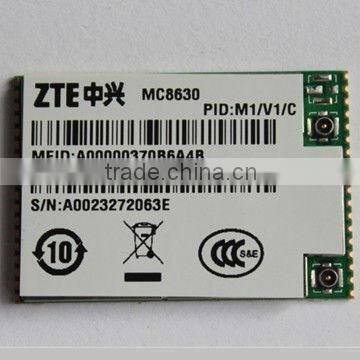

Help CenterZTE MC8630 Wcdma Hspa 3G Module
Related Products
-
Mg3732 3g Wcdma Gsm/gprs/edge Module Hsdpa ModemNegotiableMOQ: 1 Piece -
Mf210 Wcdma 3g Hsdpa Module Zte Modem ModuleNegotiableMOQ: 1 Piece
-
EVDO Rev.A 800mhz ZTE MC8630 3G Modem ModuleNegotiableMOQ: 1 Piece
-
HUAWEI MU509 Module Wireless 3G WCDMA HSDPA Modem 900/2100MHz GSM850/900/1800/1900MHz GSM850/900/1800/1900MHzNegotiableMOQ: 1 Piece
-
3g Evdo Dongle Driver Cdma 1x Evdo Usb ModemUS$ 17.5 - 20MOQ: 1 Piece
With the stamp-hole interface for MC8630, It's widely used for the products like AMR, Gateway, Tablet, Telematics, Tracking solution, Security solution and much more. This module can be built-in wireless Internet to the consumer electronic equipment/ebook etc, also can be used in the vehicle-mounted system/wireless monitoring/wireless router/wireless DTU, etc.
Network : CDMA2000 1X/EV-DO Rev.A
Frequency band : 800MHz
Dimensions : 39.5*27*2.35mm
Temperature : -30°C~+75°C
Voltage : 3.3V~4.2V/typical 3.8V
Consumption: About 7mA standby current
Interface : Dual-row 36Pin stamp-hole mounting
USB : USB 2.0
Driver : Windows XP/7, Android2.3/4.0,
Linux 2.6.20 and later,WinCE5.0/6.0
Data rate : DL:3.1Mbps/UL:1.8Mbps
Function : Built-in TCP/IP protocol/USB/UART port
Commands : Standard AT commands, ZTE exclusive commands
Certifications : CCC/CMIIT
Highlights: Single-sided layout with super-thin and small bulk design, compatible with MT3732/MG3732/MW3736 on hardware
