Help CenterWcdma 3g Module Modem MF206A Zte Hsdpa 850/1900/2100MHz ,900/1900/2100MHz LGA TypeII 108PIN
Related Products
-
SIMCOM SIM7230E FDD LTE Module Embeded HSPA/UMTS/EGDE/GPRS/GSM/GNSSNegotiableMOQ: 1 Piece -
SIMCom SIM5360 HSPA+/WCDMA GSM/GPRS/EDGE Mudule With Data Rate 14.4Mbps for Downlink Data TransferNegotiableMOQ: 1 Piece
-
3g Wcdma Hsupa Module Hsdpa ModemNegotiableMOQ: 1 Piece
-
Qualcomm Usb Cdma Modem DriverUS$ 17.5 - 20MOQ: 1 Piece
-
Unlock Qualcomm Cdma Usb ModemUS$ 17.5 - 20MOQ: 1 Piece
| Network | WCDMA/HSDPA |
| Frequency band | UMTS 850(900)/1900/2100MHz GSM/GPRS/EDGE 850/900/1800/1900MHz |
| Dimensions | 36×26×2.5mm |
| Temperature | -30 to +75°C |
| Voltage | 3.4V~4.2V/typical 3.8V |
| Consumption | about 3.9mA standby current |
| Interface | LGA TypeII 108PIN |
| USB | USB 2.0 |
| Driver | Windows XP/7, Android2.3/4.0, Linux 2.6.20 and later, WinCE5.0/6.0 |
| Data rate | DL:3.6Mbps/UL:384Kbps |
| Function | Data/SMS/MMS/GPS |
| Commands | Standard AT commands/ZTE exclusive commands |
| Certifications | CE/FCC/ROHS/PTCRB/IC/WEEE/AT&T |
| Highlights | Low Cost AT&T approval certificate |
1-Specifications: WCDMA module
2-Network:WCDMA/HSDPA
3-Frequency band:UMTS 850(900)/1900/2100MHz
GSM/GPRS/EDGE 850/900/1800/1900MHz800MHz
4-USB:2.0
5-interface:LGA TypeII 108PIN

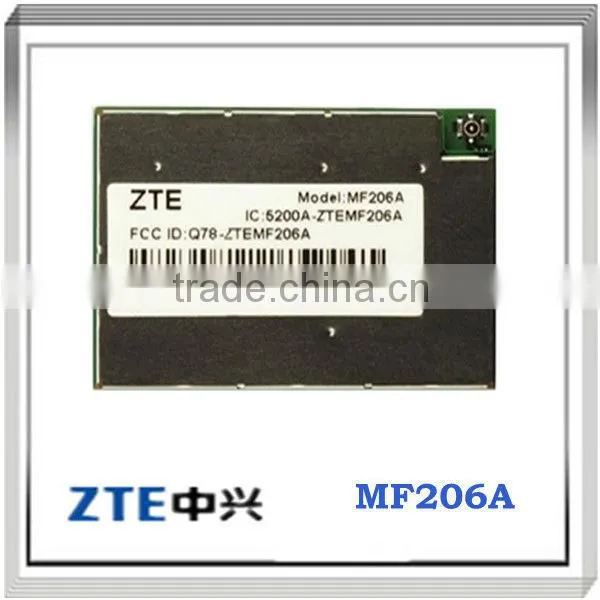

high performance For ZTE Corporation' s MF206A WCDMA module
1-high performance reliable wifi module
2-low price with high quality wireless module
high performance For ZTE Corporation' s MF206A wifi module
With the LGA interface,the module is widely used on the products like Tracking solution,Tablet,CPE,Security protection and much more
Technical parameters
Network: WCDMA/HSDPA
Frequency band: UMTS 850(900)/1900/2100MHz
GSM/GPRS/EDGE 850/900/1800/1900MHz800MHz
Dimensions: 36*26*2.5mm
Working temperature: -30°C~+75°C
Voltage: 3.4V~4.2V/typical 3.8V
Interface: LGA TypeII 108PIN
USB: 2.0
Driver: Windows XP/7, Android2.3/4.0,Linux 2.6.20 and later ,WinCE5.0/6.0
Data rate: DL:3.6Mbps/UL:384Kbps
Commands: Standard AT commands & ZTE exclusive commands
Certifications: CE/FCC/ROHS/PTCRB/IC/WEEE/AT&T
Function: Data/SMS/MMS/GPS
Highlights: Low Cost
AT&T approval certificate
