low cost gprs module gsm gprs module cheap modules mg2639_v2

FOB Price

USD $8 - $10 / Piece

1 Piece(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port HK
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Guangdong, China

Brand Name:

ZTE

Model Number:

MG2639_V2

Product Description

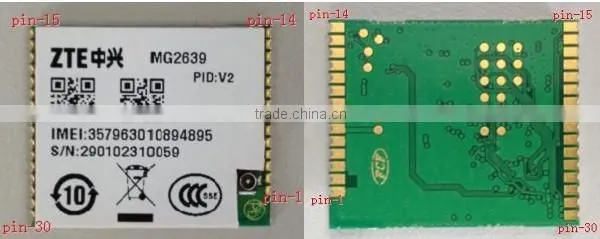

With 30-PIN stamp-hole interface, MG2639_V2 module developed by ZTE Corporation is a kind of GSM850/EGSM900/DCS1800/PCS1900 industrial module, which can be built in the Set-Top-Box, vehicle-mounted terminals, and enable users to get access to the Internet wirelessly and send/receive Emails, browse the web pages, download at high speed, etc.

It enables users to get access to the Internet any time in a place where the GSM network is covered. It also features in SMS, voice call, etc. and provides highly free and convenient solutions for users in mobile data communication, and truly realizes the dream of mobile office.

Product Information
Parameter	MG2639_V2
General Features
Frequency Bands	GSM850/EGSM900/DCS1800/PCS1900
Dimensions	30.0×25.0x2.68mm
Weight	7g
Operating Temperature Range	-30°C~+70°C
Storage Temperature Range	-40°C~+85°C
Performance
Operating Voltage Range	3.4V~4.25V/Typical: 3.8V
Standard power consumption	Standby Current: 2mA@-75dBm
	Talk Current: 128mA@-75dBm
	Max. Current: 300mA@-104dBm
Max. TX Power	GSM850/EGSM900: Class 4 (2W)
Max. TX Power	DCS1800/PCS1900: Class 1 (1W)
Rx. Sensitivity	<-107dBm
Interfaces
Connector	30Pin Stamp-hole
Antenna Integrated Full Duplex UART	SMT 50Ω Antenna Connector
Antenna Integrated Full Duplex UART	AT commands/Data transmission
SIM Card Interface	1.8V/3.0V
Data Features
GPRS	Class 10
Mobile Station	Class B
Max Downlink	85.6kbps
Max Uplink	42.8kbps
Protocol	Internal TCP/IP&UDP
Protocol	Embedded FTP
SMS
	Support TEXT/PDU Mode
	Point-to-point MO/MT
	SMS Cell Broadcast
Voice call
	Vocoders HR/FR/EFR/AMR
	Echo Cancellation/Volume Control/DTMF
AT Command Set
	GSM 07.05/GSM 07.07/ZTE Proprietary AT Commands
