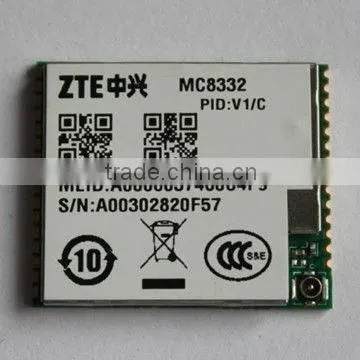

RF module 2G MC8332 ZTE cdma2000 1X wireless modem module
With 30-PIN stamp-hole interface, MC8332 developed by ZTE Corporation is a kind of CDMA2000 1X 800M industrial module, which can be built in the applications of Internet of Things, such as Set-Top-Box, vehicle-mounted terminals, etc. And the module enables users to get access to the Internet wirelessly and send/receive Emails, browse the web pages, download at high speed and play online videos, etc. In a place where CDMA2000 network is covered, users can get access to the Internet any time. Besides, the module enables users to send/receive text message (SMS). The module provides highly free and convenient solutions to users in mobile data communication, and truly realizes the dream of mobile office.
| |
| Product: | MC8332 |
| Network: | CDMA 1X |
| Brand: | ZTE |
| Product information: |
Band: CDMA 800MHz Standby current: 3mA Funtion:Voice,SMS,DATA Data rate:153.6Kbps/153.6Kbps Embedded TCP/IP protocol Dimension: 30.0×25.0×2.45mmOperating temperature:-35°C~+75°C
|
| Certifications: | ROHS,CCC,CTA |
| Introduction to Module's Functions | ||||||
| Parameters | MC8332 | |||||
| General Features | ||||||
| Frequency Bands | CDMA 2000 1X 800MHz | |||||
| GPS | Don't support | |||||
| Dimensions | 30.00mm*25.00mm*2.68mm | |||||
| Weight | 6.5g | |||||
| Operating Temperature Range | -30°C~+75°C | |||||
| Storage Temperature Range | -40°C~+85°C | |||||
| Performance | ||||||
| Operating Voltage Range | 3.3V~4.25V Standard:3.8V | |||||
| Standard Consumption | Idle Current:5mA@-75dBm | |||||
| Talk Current:120mA@-75dBm | ||||||
| Max. Current:800mA@-104dBm | ||||||
| Max Output Power | 23dBm ~ 30dBm@-104dBm | |||||
| Receiving Sensitivity | -106dBm | |||||
| Interfaces | ||||||
| Connection Method | 30 Pin Stamp-hole Interface | |||||
| Antenna | U.FL-R-SMT 50Ω Antenna Connector | |||||
| Integrated Full Duplex UART | AT command, data transmission | |||||
| UIM card socket level | 1.8V/2.85V | |||||
| Data Features | ||||||
| System | CDMA2000 1X | |||||
| Max. downlink rate | 153.6Kbps | |||||
| Max. uplink rate | 153.6Kbps | |||||
| Protocol |
Internal TCP/IP & UDP/IP Protocol Stack(Optional) |
|||||
| TCP Server | ||||||
| Embedded FTP | ||||||
| Network indication | ||||||
| SMS Features | ||||||
| Support TEXT/PDU Mode | ||||||
| Point-to-point MO/MT | ||||||
| SMS Cell Broadcast | ||||||
| Voice Features | ||||||
| Double Channels & High-quality Voice | ||||||
| 2SPK/2MIC | ||||||
| Vocoders EEVRC & 13K QCELP | ||||||
| Echo Cancellation | ||||||
| Volume Control | ||||||
| Support DTMF | ||||||
| PCM | ||||||
| AT Command Setting | ||||||
| Common AT Commands | ||||||
| ZTE Proprietary AT Commands | ||||||
