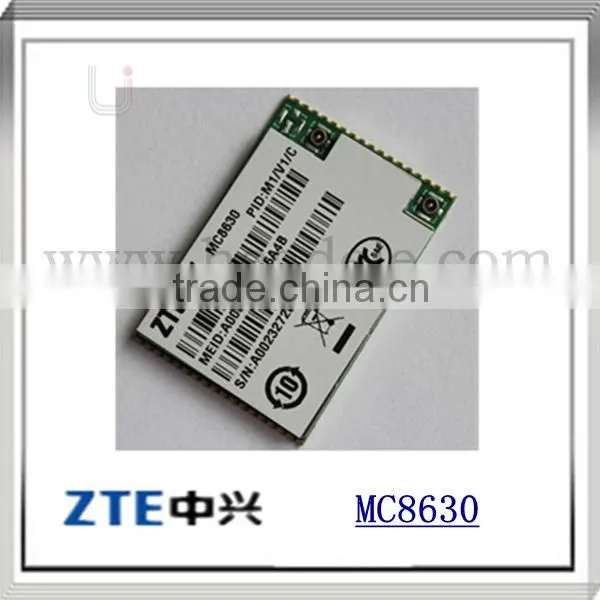

800Mhz band MC8630 ZTE 3G Modem LCC stamp hole interface Wireless module
EVDO Rev.A 800MHz band and 36 Pin stamp hole interface, easy to manufacture,good shock resistance. 3.1M download speed, 1.8M upload speed; offering powerful function and stable performance, complete AT interfaces and in TCP/IP stack reduce the development difficulty, provide customization service which shorten development circl. China Telecom AT commands are supported. • 36 Pin stamp hole interface • USB/UART Dormancy and wake up
| MC8630 | |
| General Features | |
| Frequency Bands | CDMA Single Band:800MHz |

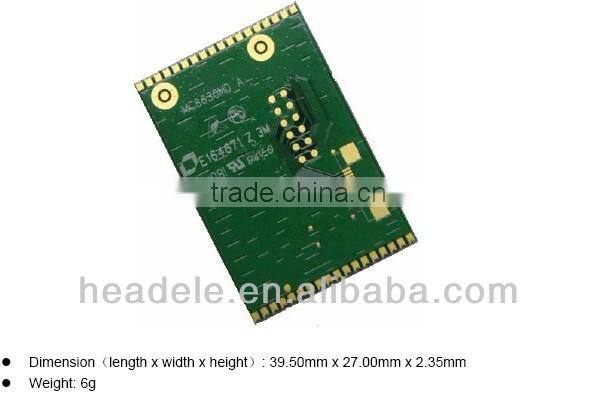

| Dimensions | 39.5×27.0×2.35mm |
| Weight | 6g |
| Operating Temperature Range | -30°C~+75°C |
| Storage Temperature Range | -40°C~+80°C |
| Performance | |
| Operating Voltage Range | 3.0V~4.4V/Typical: 3.6V |
| Current Consumption Typically | Idle Current: 3mA@-75dBm |
| Call Current: 230mA@-75dBm | |
| Max Current: 650mA@-105.5dBm | |
| Max output power | 800MHz: Class II 23dBm~30dBm@-105.5dBm |
| RX Sensitivity | -105.5dBm |
| Interfaces | |
| Connector | 36Pin Stamp Holes |
| Antenna | U.FL-R-SMT 50Ω Antenna Connector |
| Integrated Full Duplex UART | AT/Data |
| USB | USB 2.0 Full Speed: Modem |
| SIM Card Interface | 1.8V/3.0V |
| Data Features | |
| CDMA2000 1X/EV-DO Rev.A | |
| Max Downlink | 3.1Mbps |
| Max Uplink | 1.8Mbps |
| SMS Features | |
| Support TEXT/PDU Mode | |
| Point-to-point MO/MT | |
| SMS Cell Broadcast | |
| AT Command Set | |
| Common AT Commands | |
| Extended AT Commands | |
| China Telecom AT Commands | |
Low cost EVDO 3G module ZTE MC8630 |
|
| |
| Product: | MC8630 |
| Network: | EVDO Rev.A |
| Brand: | ZTE |
| Product information: |
Band: EVDO 800MHz Standby current: 5mA Funtion:SMS,DATA,VOICE Data Rate:DL:3.1MBps UL:1.8MBps Supported operating systems:Win2K/XP/Vista/WinCE/Mac/Linux/andriod Dimension: 39.5×27.0×2.35mm Operating temperature:-30°C~+75°C
|
| Certifications: | CCC,CTA,ROHS |
Highlight:
1. It's compatible between WCDMA(HADPA,MG3732. HSPA+,MW3736) and TD-SCDMA (MT3732)module for the hardware pins define.
2. Stamp-hole package.
