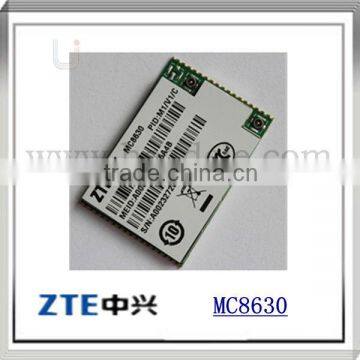

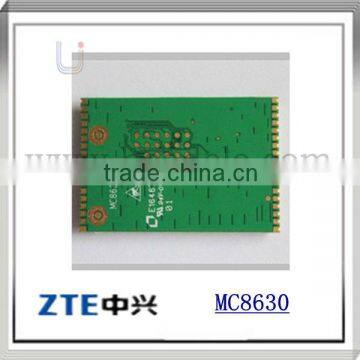

ZTE EVDO hspa 3G module MC8630

Network :    CDMA2000 1X/EV-DO Rev.A

Frequency band :    800MHz

Dimensions :    39.5*27*2.35mm

Temperature :   -30°C~+75°C

Voltage :   3.3V~4.2V/typical 3.8V

Consumption:  About 7mA standby current

Interface :   Dual-row 36Pin stamp-hole mounting

USB :   USB 2.0

Driver :     Windows XP/7, Android2.3/4.0,
                 Linux 2.6.20 and later,WinCE5.0/6.0

Data rate :   DL:3.1Mbps/UL:1.8Mbps

Function :     Built-in TCP/IP protocol/USB/UART port

Commands :   Standard AT commands, ZTE exclusive commands

Certifications :     CCC/CMIIT

Highlights:   Single-sided layout with super-thin and small bulk design, compatible with MT3732/MG3732/MW3736  on hardware
