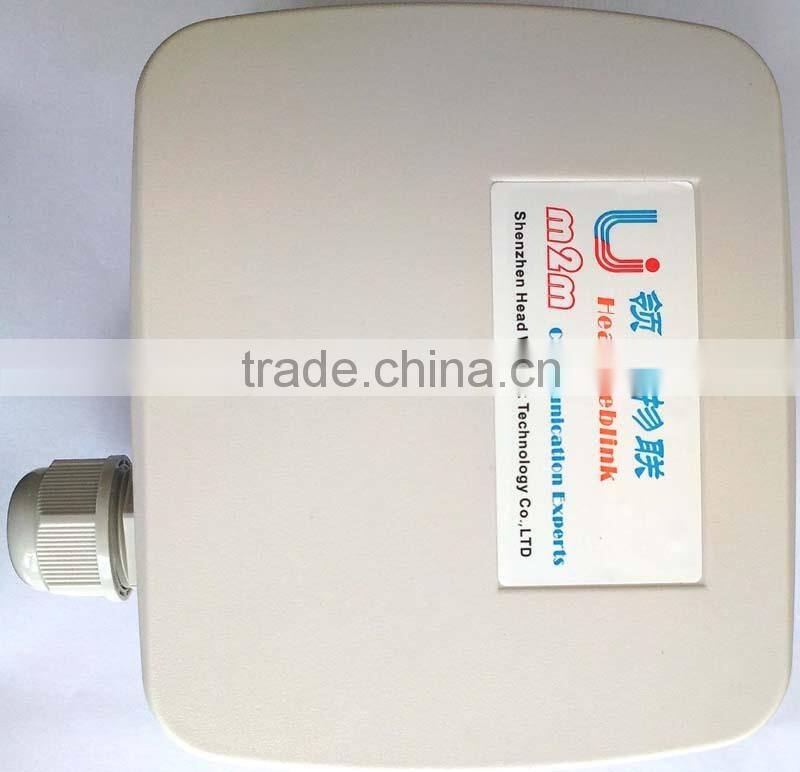

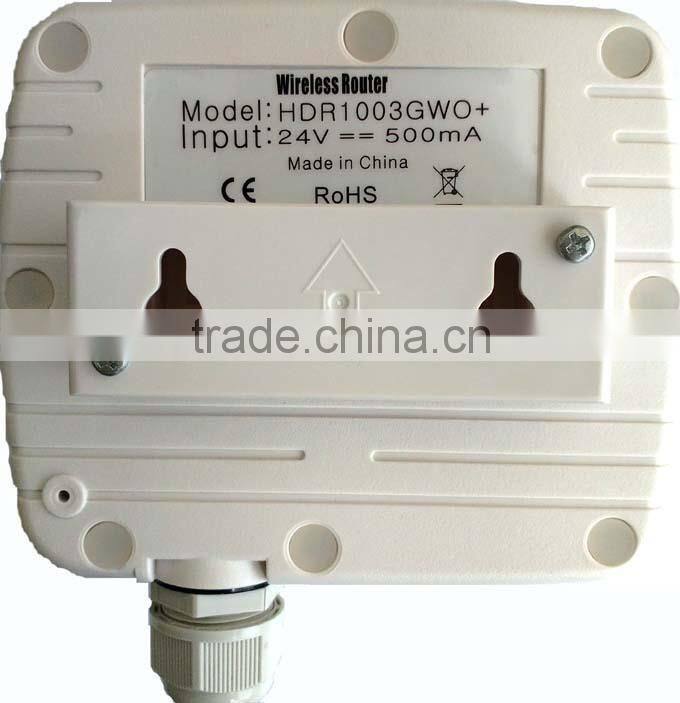

CPE FDD lte 4g industrial outdoor router with DL 100Mbps

Feature.

1. Support 3G or 4G LTE  network.
2. MIMO RF dual antenna
3. Waterproof and dustproof IP65. Can be mounted on roof.

4.  Lightning protection
5. With SIM card slot.

6. Automaticlly dial-up access to the Internet after boot .

7. One ethernet interface.It can be extended 100m long of the ethernet cable.

8. Built-in dial-up parameters more than 200 operators.

9. We can customize 3G/4G LTE frequency bands for customers.

10. Dimensions:130*55*26mm

Product specification.

* 3G router.

Operating temperature: -20°C -- +60°C
Operating humidity: 5%--95%

Operating frequency:
1). HDR1003GWUO:

          WCDMA:(850)900/1900/2100MHz

          GSM: 850/900/1800/1900MHz

2). HDR1003GWO+:

         WCDMA:850/1900MHz & 900/2100MHz

         GSM: 850/900/1800/1900MHz

3). HDR1003GEO:

         EVDO 800MHz & 800/1900MHz

The rate and network mode:
1). HDR1003GWUO:

        WCDMA: DL 7.2MbpS, UL 5.76MbpS

2).HDR1003GWO+:

       WCDMA: DL 14.4MbpS, UL 5.76MbpS

3).HDR1003GEO:

        EVDO:DL 3.1Mbps, UL 1.8Mbps

*Note: We can provide customized frequency bands or network mode.

*  4G LTE Router.

1).HDR1004GTO.

        TDD-LTE. Band 38, Band 39, Band 40 2570~2620MHz/1880~1920MHz/ 2300~2500MHz

        FDD-LTE. Band 7 UL. 2500MHz-2570MHz, DL. 2620MHz-2690MHz

       TD-SCDMA.1880~1920MHz/2010~2025MHz

       GSM. 900MHz/1800MHz

2).HDR1004GFO
Latin-America version.

         FDD- LTE. 2100/1900/1700/850/900/2600/700MHz Band 1,2,4,5,7,8,12&17

         TDD- LTE. Band 38

          WCDMA/UMTS .2100/1900/1700/850(900)MHz

         GSM/GPRS. 850/900/1800/1900MHz.

EU_Asia version.
         FDD- LTE. Band 1,3,7,8,20

         TDD- LTE. Band 38,40

         WCDMA/UMTS . 2100/1900/1700/850(900)MHz

         GSM/GPRS. 850/900/1800/1900MHz
*Note: We can provide customized frequency bands.

The data rate:

*4G router.
1).HDR1004GTO.
        TDD LTE: DL,100MbpS, UL,50Mbps
        FDD LTE: DL,100MbpS, UL,50Mbps
       TD-SCDMA: DL 2.8MbpS;UL 2.2MbpS

2).HDR1004GFO

        FDD LTE: DL,100MbpS, UL,50Mbps

       TDD LTE: DL,61MbpS, UL,18Mbps

       WCDMA: DL 14.4MbpS;UL5.76MbpS

*3G router.

1). HDR1003GWUO:

        WCDMA: DL 7.2MbpS, UL 5.76MbpS

2).HDR1003GWO+:

       WCDMA: DL 14.4MbpS, UL 5.76MbpS

3).HDR1003GEO:

       EVDO:DL 3.1Mbps, UL 1.8Mbps

*Note: We can provide customized the frequency bands and the data rates.

Test environment.

         ESD,Waterproof and dustproof, Lightning protection,Temperature(-30~+70).
