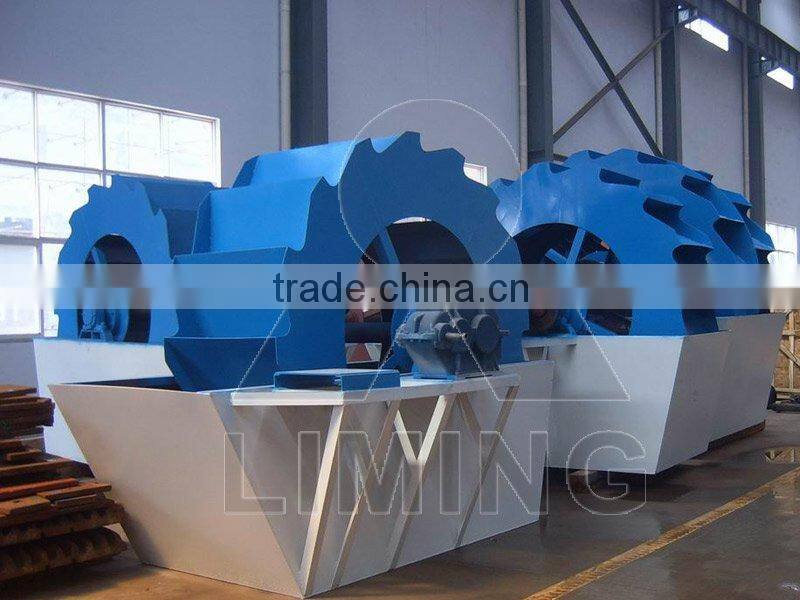

HOT ! Wheeled Sand Washer From China

Specifications

This series Sand Washer is a kind of water washing style equipment to be matched with the sand making machine and can reduce the dust and stone powder which mixes with the final sand, so sand making machine can improve the quality of the sand.

XSD series Sand Washer is used in building plant, quarry, concrete plant, dam building, casting-70 sand, glass factory’s quartz sand and refilling pressure sand.

Working Principle of Sand Washer:

The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.

Characteristics of Sand Washer
Reasonable structure, large capacity, low consumption, little loss of the sand during the washing process, low failure rate.

Models: XSD2610, XSD2816, XSD3016
Model: XSD2610
Wheel Size (mm): Φ2600×1000
Max feed size (mm): 10
Power (Kw): 5.5
Weight (t): 2.7
Capacity (t/h): 50
Overall dimension (mm): 3255×1982×2690

Model: XSD2816
Wheel Size (mm): Φ2800×1000
Max feed size (mm): 10
Power (Kw): 11
Weight (t): 3
Capacity (t/h): 100
Overall dimension (mm): 3540×3000×2880

Model: XSD3016
Wheel Size (mm): Φ3000×1600
Max feed size (mm): 10
Power (Kw): 15
Weight (t): 3.3
Capacity (t/h): 150
Overall dimension (mm): 3845×3000×3080

Notice: Any change of  technical data shall not be advised additionally
