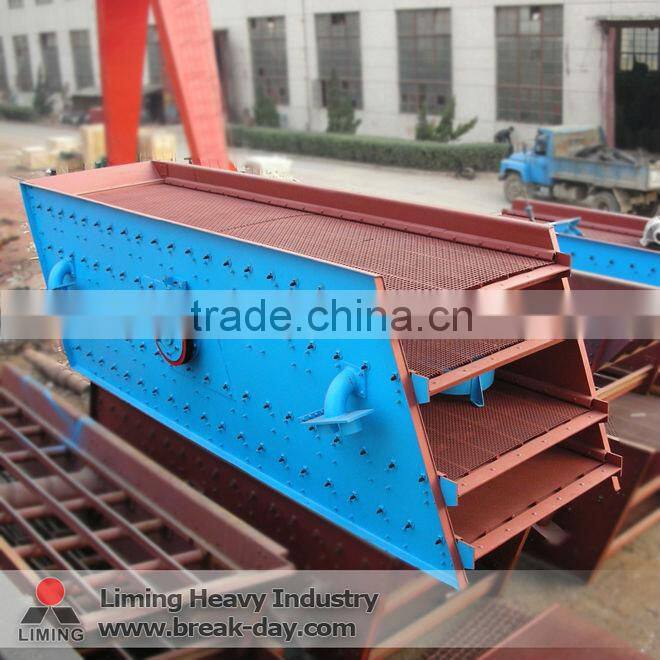

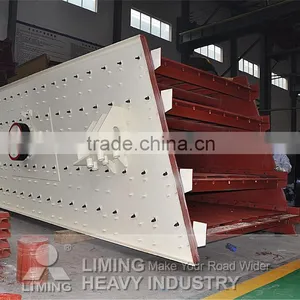

YZS Vibratory Screen and Marble Sifter
US$ 1 - 3,000,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Circular, Separator
Application:
Other, Ore, mining,quarrying,construction
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
YZS Vibratory Screen and Stone SifterUS$ 1 - 3,000,000MOQ: 1 Set -
YZS Rounding Vibrating ScreenUS$ 1 - 3,000,000MOQ: 1 Set
-
XSD Series Wheeled Sand Cleaning Machine/sand WasherUS$ 8,888 - 99,999MOQ: 1 Set
-
High Efficiency Sand SieveUS$ 1,000 - 999,999,999MOQ: 1 Set
-
YZS Circular Vibratory Screen and Vibrating ScreenUS$ 1 - 3,000,000MOQ: 1 Set
Condition
New
Type
Other, Circular, Separator
Application
Other, Ore, mining,quarrying,construction
Place of Origin
Henan, China
Brand Name
LIMING
Model Number
YZS
Certification
ISO9001:2000
Specifications
Marble sfiter (Cricular Vibratory Screen) is of long streamline, clear screening for different specifications.marble sifter (Circular Vibrating Screen) earns this name by reason of its approximately circular movement. It is of multilayer and high efficient. The eccentric shaft vibration exciter and partial block help to adjust amplitude. This kind of screen is of long streamline, clear screening for different specifications.
marble sifter (Circular Vibrating Screen) Features:
- marble sifter uses eccentric block to produce strong exciting force.
- Crossbeam and the main body of the screen are connected with high strength screw bolts. So they have the features of simple structure and easy maintenance.
- marble sifter adopts tire coupling with capability of flexible connection and stable operation.
- marble sifter adopts the structure of small amplitude, high frequency, large obliquity to make the screen hold the capability of high efficiency, large handling capacity, long life span, low consumption, little noise.
Marble sifter & Vibratory ScreenTechnical Data:
| Model | Screen size (mm) | No. of Layer | Screen mesh (mm) | Max. feed size (mm) | Handling capacity (t/h) | Motor power (kW) | Vibrating frequency (r/min) | Double swing (mm) |
| 2YZS1237 | 3700×1200 | 2 | 3-100 | 400 | 10-80 | 11 | 750-950 | 5-9 |
| 3YZS1237 | 3700×1200 | 3 | 3-100 | 400 | 10-80 | 11 | 750-950 | 5-9 |
| 2YZS1548 | 4800×1500 | 2 | 3-100 | 400 | 30-200 | 15 | 750-950 | 5-9 |
| 3YZS1548 | 4800×1500 | 3 | 3-100 | 400 | 30-200 | 15 | 750-950 | 5-9 |
| 2YZS1848 | 4800×1800 | 2 | 3-100 | 400 | 50-250 | 18.5 | 750-950 | 5-9 |
| 3YZS1848 | 4800×1800 | 3 | 3-100 | 400 | 50-250 | 18.5 | 750-950 | 5-9 |
| 4YZS1848 | 4800×1800 | 4 | 3-100 | 400 | 50-250 | 18.5 | 750-950 | 5-9 |
| 2YZS1860 | 6000×1800 | 2 | 3-100 | 400 | 65-586 | 22 | 750-950 | 5-9 |
| 3YZS1860 | 6000×1800 | 3 | 3-100 | 400 | 65-586 | 22 | 750-950 | 5-9 |
| 4YZS1860 | 6000×1800 | 4 | 3-100 | 400 | 65-586 | 30 | 750-950 | 5-9 |
| 2YZS2160 | 6000×2100 | 2 | 3-100 | 400 | 81-720 | 22 | 700-900 | 5-9 |
| 3YZS2160 | 6000×2100 | 3 | 3-100 | 400 | 81-720 | 30 | 700-900 | 5-9 |
| 4YZS2160 | 6000×2100 | 4 | 3-100 | 400 | 81-720 | 30 | 700-900 | 5-9 |
| 2YZS2460 | 6000×2400 | 2 | 3-150 | 400 | 100-810 | 30 | 700-900 | 5-9 |
| 3YZS2460 | 6000×2400 | 3 | 3-150 | 400 | 100-810 | 37 | 700-900 | 5-9 |
| 4YZS2460 | 6000×2400 | 4 | 3-150 | 400 | 100-810 | 37 | 700-900 | 5-9 |
Notice: Any change of Vibratory Screen (YZS Vibrating Screen) technical data shall not be advised additionally.
