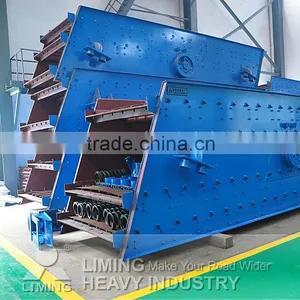

YZS Vibratory Screen and Stone Sifter
US$ 1 - 3,000,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Circular, Separator
Application:
Other, Ore, mining,quarrying,construction
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
YZS Rounding Vibrating ScreenUS$ 1 - 3,000,000MOQ: 1 Set -
XSD Series Wheeled Sand Cleaning Machine/sand WasherUS$ 8,888 - 99,999MOQ: 1 Set
-
High Efficiency Sand SieveUS$ 1,000 - 999,999,999MOQ: 1 Set
-
YZS Circular Vibratory Screen and Vibrating ScreenUS$ 1 - 3,000,000MOQ: 1 Set
-
XSD Series Wheeled Sand Washing MachineUS$ 1 - 3,000,000MOQ: 1 Set
Condition
New
Type
Other, Circular, Separator
Application
Other, Ore, mining,quarrying,construction
Place of Origin
Henan, China
Brand Name
LIMING
Model Number
YZS
Certification
ISO9001:2000
Specifications
stone sfiter (Cricular Vibratory Screen) is of long streamline, clear screening for different specifications.- stone sifter & Vibratory ScreenVibrating Screen uses eccentric block to produce strong exciting force.
- Crossbeam and the main body of the screen are connected with high strength screw bolts. So they have the features of simple structure and easy maintenance.
- stone sifter & Vibratory Screen adopts tire coupling with capability of flexible connection and stable operation.
- It adopts the structure of small amplitude, high frequency, large obliquity to make the screen hold the capability of high efficiency, large handling capacity, long life span, low consumption, little noise.
stone sifter & Vibratory ScreenTechnical Data:
| Model | Screen size (mm) | No. of Layer | Screen mesh (mm) | Max. feed size (mm) | Handling capacity (t/h) | Motor power (kW) | Vibrating frequency (r/min) | Double swing (mm) |
| 2YZS1237 | 3700×1200 | 2 | 3-100 | 400 | 10-80 | 11 | 750-950 | 5-9 |
| 3YZS1237 | 3700×1200 | 3 | 3-100 | 400 | 10-80 | 11 | 750-950 | 5-9 |
| 2YZS1548 | 4800×1500 | 2 | 3-100 | 400 | 30-200 | 15 | 750-950 | 5-9 |
| 3YZS1548 | 4800×1500 | 3 | 3-100 | 400 | 30-200 | 15 | 750-950 | 5-9 |
| 2YZS1848 | 4800×1800 | 2 | 3-100 | 400 | 50-250 | 18.5 | 750-950 | 5-9 |
| 3YZS1848 | 4800×1800 | 3 | 3-100 | 400 | 50-250 | 18.5 | 750-950 | 5-9 |
| 4YZS1848 | 4800×1800 | 4 | 3-100 | 400 | 50-250 | 18.5 | 750-950 | 5-9 |
| 2YZS1860 | 6000×1800 | 2 | 3-100 | 400 | 65-586 | 22 | 750-950 | 5-9 |
| 3YZS1860 | 6000×1800 | 3 | 3-100 | 400 | 65-586 | 22 | 750-950 | 5-9 |
| 4YZS1860 | 6000×1800 | 4 | 3-100 | 400 | 65-586 | 30 | 750-950 | 5-9 |
| 2YZS2160 | 6000×2100 | 2 | 3-100 | 400 | 81-720 | 22 | 700-900 | 5-9 |
| 3YZS2160 | 6000×2100 | 3 | 3-100 | 400 | 81-720 | 30 | 700-900 | 5-9 |
| 4YZS2160 | 6000×2100 | 4 | 3-100 | 400 | 81-720 | 30 | 700-900 | 5-9 |
| 2YZS2460 | 6000×2400 | 2 | 3-150 | 400 | 100-810 | 30 | 700-900 | 5-9 |
| 3YZS2460 | 6000×2400 | 3 | 3-150 | 400 | 100-810 | 37 | 700-900 | 5-9 |
| 4YZS2460 | 6000×2400 | 4 | 3-150 | 400 | 100-810 | 37 | 700-900 | 5-9 |
Notice: Any change of Vibratory Screen (YZS Vibrating Screen) technical data shall not be advised additionally.
